Lasersport Safety Glasses, ND:YAG & Harmonics, CO2, Excimer, Diode, GaAs

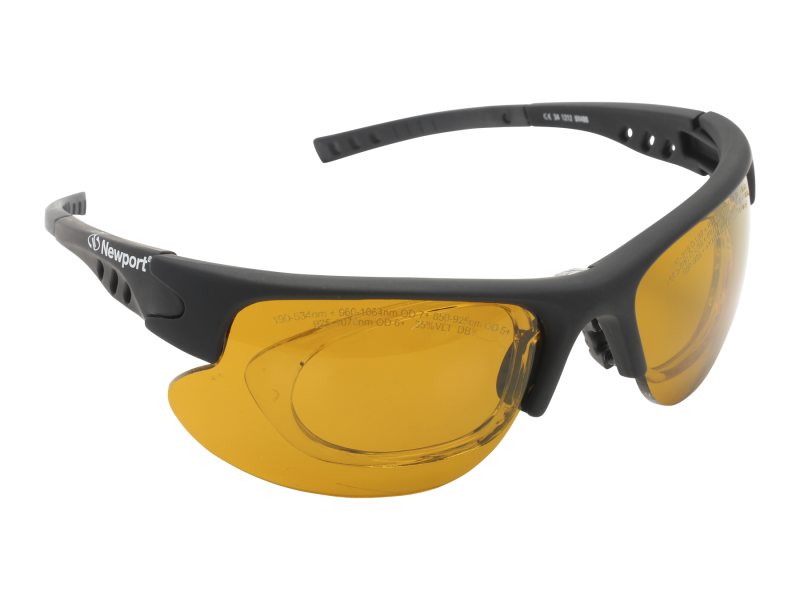

The N-DBY-34 Safety Glasses are for ND:YAG & Harmonics, CO2, Excimer, Diodes, and GaAs laser wavelengths. It has amber color polycarbonate lenses with 35% VLT (visible light transmission). The stylish Lasersport frame is a lightweight frame designed to maximizes visibility while providing unsurpassed attenuation for the entire range of laser wavelengths. The Lasersport frame provides the best wrap around coverage for a spectacle and most comfort for the wearer. An insert for prescriptions lenses are provided with each frame. This model is CE certified. Meets ANSI Z136.1 and EN207.

Glasses Designed to Offer Complete Laser Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve for each model can be found by clicking on the model number in the order or specification table.

Best Wrap Around Coverage

The frame provides the best wrap around coverage for a spectacle and most comfort for the wearer.

Anti-Fog Design

The lenses used in the semi-rimless glasses are coated for anti-fogging.

Specifications

Technical Specs

Frame Style
Lasersport
Visible Light Transmission
35%
Filter Color
Amber
Optical Density
OD 7+ @ 190–534 nm
OD 5+ @ 850–925 nm
OD 6+ @ 925–1070 nm
OD 7+ @ 960–1064 nm
Laser Type
Nd:YAG CO2 Excimer Diodes GaAs

Lens Material
Polycarbonate
CE
Yes
EN207
180–315 nm (D LB7 + R LB4)
>315–534 nm (D LB5 + IRM LB6)
850–925 nm (D IRM LB5)
>925–980 nm (D LB5 + IRM LB6)
>980–1064 nm (D LB6 + IRM LB7)
>1064–1085 nm (D IRM LB5)

Frame Style
Lasersport
Visible Light Transmission
35%
Filter Color
Amber
Optical Density
OD 7+ @ 190–534 nm
OD 5+ @ 850–925 nm
OD 6+ @ 925–1070 nm
OD 7+ @ 960–1064 nm
Laser Type
Nd:YAG CO2 Excimer Diodes GaAs

Lens Material
Polycarbonate
CE
Yes
EN207
180–315 nm (D LB7 + R LB4)
>315–534 nm (D LB5 + IRM LB6)
850–925 nm (D IRM LB5)
>925–980 nm (D LB5 + IRM LB6)
>980–1064 nm (D LB6 + IRM LB7)
>1064–1085 nm (D IRM LB5)
