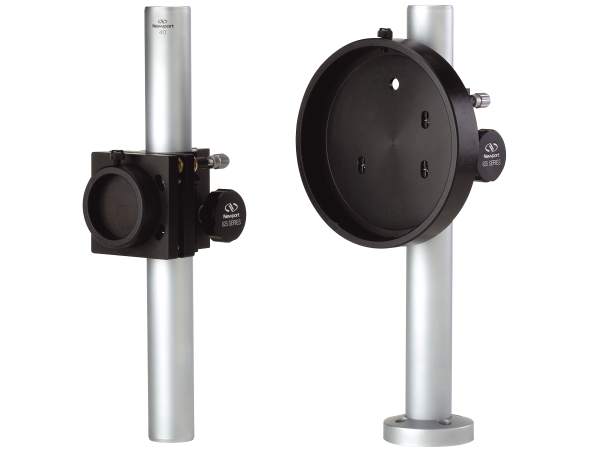

Our 625-RC Series mirror mounts are rod-mountable devices that provide vertical positioning flexibility and convenience for large diameter mirrors. Three diameters are available – 2 in. (50.8 mm), 4 in. (101.6 mm), and 6 in. (152.4 mm) – and angular adjustment is achieved with either high precision adjustment screws or micrometers.
Precise beam positioning for large mirrors
Front surface of mirror lines up over table hole pattern
Orthogonal 10° angular adjustment range
Access hole located on back of mount for quick and easy mirror removal
Additional CAD file downloads are not available for this product.
rod-mount-kinematic-optical-mounts - Drawings
Additional drawings are not available for this product.
Features
Compatible with Optical Support Rods
These mounts feature stable kinematic design with hardened kinematic contacts at all three support points. They are compatible with the heavy duty optical rods as well as SR-series magnetic base optical pedestals.

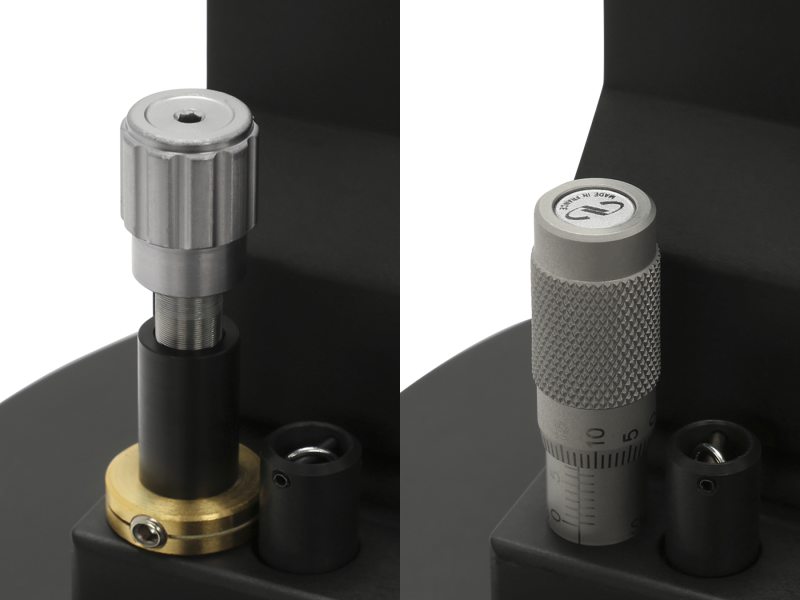

Micrometer and Adjustment Screw Versions
The standard versions are configured with 100-TPI precision AJS-series Adjustment Screws. Where a direct reading is desired, SM Micrometer versions are available simply by appending "-M" to the part number.
Accessories
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
A-2-1Optical Mount Adaptor, 50.8 mm to 25.4 mm (2 to 1 inch)
UNIVERSAL
In Stock
$76
A-2-1.5Optical Mount Adaptor, 50.8 mm to 38.1 mm (2 to 1.5 inch)
UNIVERSAL
In Stock
$80
A-4-3Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch)
