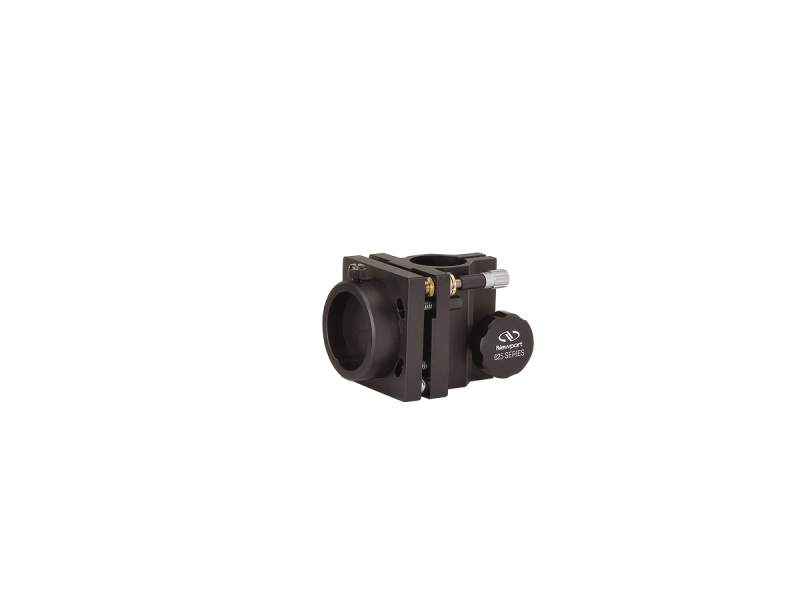

Mirror Mount, 1.5 in. Post Mounted, 2.0 in. Diameter, Knob Adjustment

Model: 625-RC2

$481.00

In Stock

Compare

Add to List

Product Series Overview

Rod-Mount Kinematic Optical Mounts

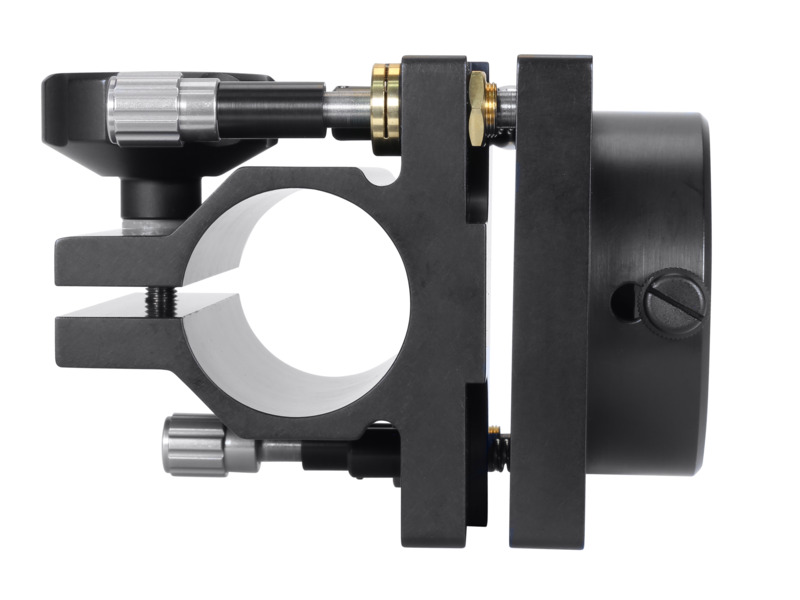

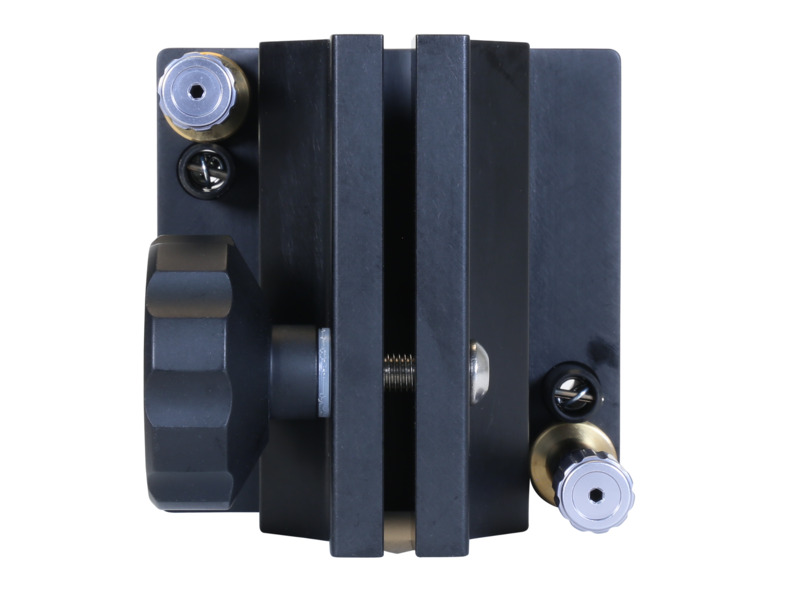

The 625-RC2 Rod Mount Kinematic Mirror Mount is a rod-mountable device that provides vertical positioning flexibility and convenience for 2.0 in. diameter mirrors. It is compatible with Newport's rod models 40, 41, and 45 and incorporate the same stable kinematic design as our 600A Series Optical Mounts, with hardened kinematic contacts at all three support points. The 625-RC2 is configured with two high precision AJS Adjustment Screws for a ±10° adjustment range.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

50.8 mm
Actuator Locks

Yes
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy

Angular Range

±10°
Material

Aluminum
Drive Type

Knob, locking

Mechanism

Kinematic
Optic Diameter

50.8 mm
Actuator Locks

Yes
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy

Angular Range

±10°
Material

Aluminum
Drive Type

Knob, locking

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

625-RC2-DWG-S (90.9 kB, PDF)

Other

625-RC2 RoHS Certificate (284.6 kB, PDF)
