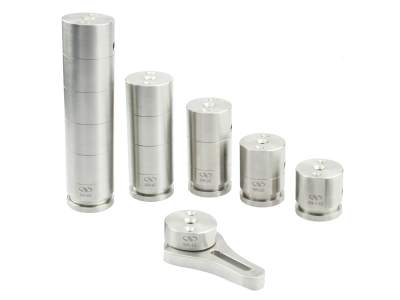

1.5 in. Magnetic Base Optical Pedestals

SR-Z Series 1.5 in. (38.1 mm) diameter solid stainless steel optical pedestals with magnetic bases allow faster, easier, and more accurate alignment of optical systems compared to traditional pedestals. The machined-in pedestal base provides the most stable and rigid means of mounting components to an optical table, while the magnet hold ensures secure positioning while clamping the base to the surface. Optical mounts can be directly attached to these pedestals without the need for a separate adapter.

1.5 in. diameter, solid steel posts for optimal rigidity
Magnetic, machined-in pedestal base provides versatile and controlled mounting
Index marks allow quick height reference for easy identification
Multiple sizes and accessories available for customizable heights and architectures
English and Metric versions available

See All Features

Show Filters:

Showing 10 of 12 total products

Compatibility:

Description	Compatibility	Height	Thread Type	Price
SR-1ZPedestal Pillar, Magnetic Base, 1 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	25.4 mm	8-32 and 1/4-20	$43
SR-1.5ZPedestal Pillar, Magnetic Base, 1.5 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	38.1 mm	8-32 and 1/4-20	$45
SR-2ZPedestal Pillar, Magnetic Base, 2 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	50.8 mm	8-32 and 1/4-20	$47
SR-3ZPedestal Pillar, Magnetic Base, 3 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	76.2 mm	8-32 and 1/4-20	$49
SR-4ZPedestal Pillar, Magnetic Base, 4 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	101.6 mm	8-32 and 1/4-20	$57
SR-6ZPedestal Pillar, Magnetic Base, 6 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	152.4 mm	8-32 and 1/4-20	$91
M-SR-1ZPedestal Pillar, Magnetic Base, 25.4 mm Height, 38.1 mm Diameter, M6	METRIC	25.4 mm	M4 and M6	$43
M-SR-1.5ZPedestal Pillar, Magnetic Base, 38.1 mm Height, 38.1 mm Diameter, M6	METRIC	38.1 mm	M4 and M6	$45
M-SR-2ZPedestal Pillar, Magnetic Base, 50.8 mm Height, 38.1 mm Diameter, M6	METRIC	50.8 mm	M4 and M6	$47
M-SR-3ZPedestal Pillar, Magnetic Base, 76.2 mm Height, 38.1 mm Diameter, M6	METRIC	76.2 mm	M4 and M6	$49

Show All

Specifications

Type
Magnetic Pedestal Pillar
Material
Stainless Steel

Diameter
1.5 inch (38.1 mm)

Features

Designed for Maximum Stability

Constructed from solid stainless steel, the SR Optical Support Rods are designed for maximum stability by integrating multiple features into a single part. Rather than having several separate adaptors, these support rods have a machined-in pedestal base for use with SR-F clamping forks and multiple machined-in mounting holes.

Magnetic, Machined-in Pedestal Base

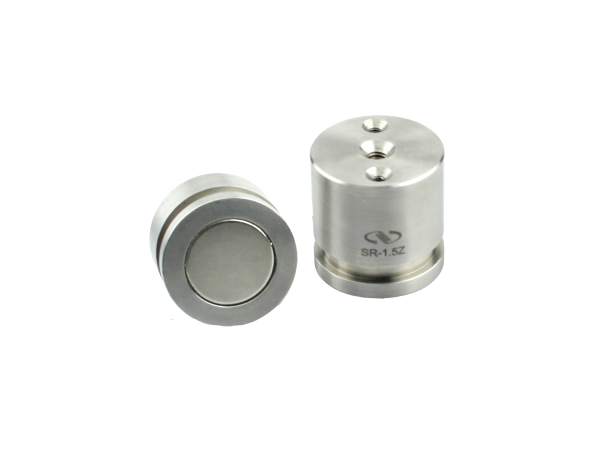

This unique mounting system provides the most stable and rigid means of mounting components to an optical table. Machined-in pedestals eliminate the need for an extra attachment before mounting to an optical table or breadboard, with clamping forks. Magnets located in the bases of the rods/posts hold them in place temporarily to facilitate ease of mounting and system alignment.

Two Types of Mounting Holes on Top

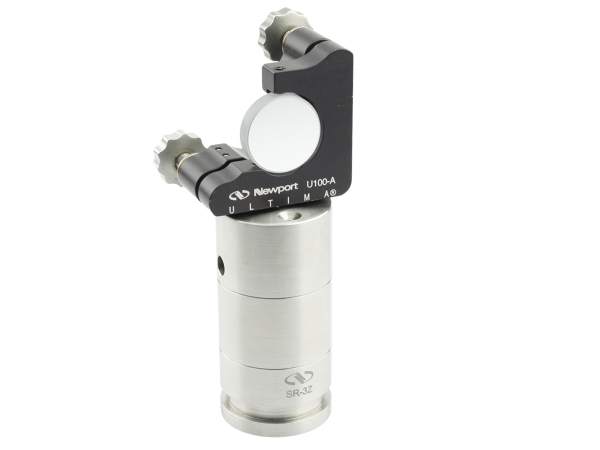

The rods have a center ¼-20 (M6) threaded mounting hole, as well as two additional 8-32 (M4) mounting holes, which are in line with the center hole, and are offset by ½ in. (12.7 mm). Using these two additional mounting holes, mirror mounts can be directly attached to the rod without the need for a separate adaptor.

Accessories for Customizable Heights and Architectures

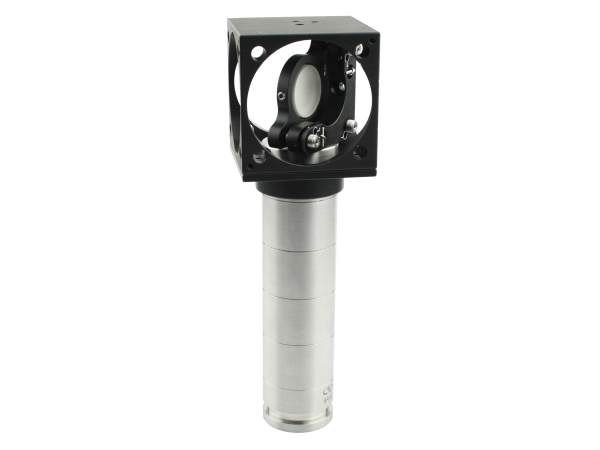

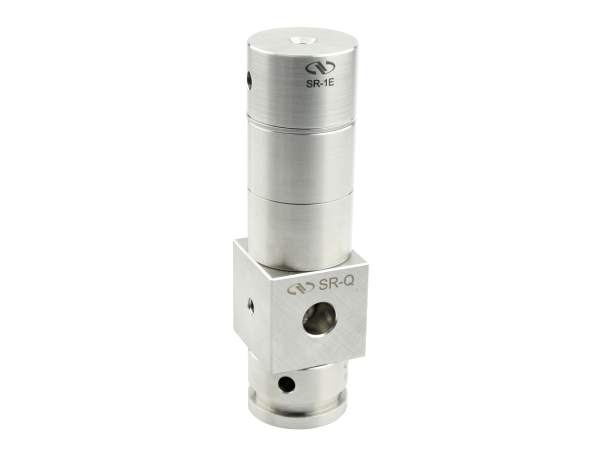

A host of accessories for the rods are available, such as SR-E threaded extension posts and SR-S spacers, SR-Q mounting cubes, SR-SC sliding clamps and SR-ADP mounting adaptors, to allow mounting optics at non-standard heights and versatile architectures.

Compatible with Aegis Qube™ Beam Routing System

SR series pedestals can be used for the steel Aegis Qube™ Beam Routing System via adapter Q-XE-RA-1, which is made to attach to Q-OC-1 cubic enclosure to provide modular and versatile means for routing, shielding, and enclosing laser or similar light beams above an optical table.

Accessories

Clamping Fork

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SR-FClamping Fork, 1.5 in. Diameter Pedestal Pillar, 1/4-20 (M6) Slot	UNIVERSAL			$21

Construction Accessories

Description	Compatibility	Price
SR-QRod Mounting Cube, 1.5 in. Diameter Posts and Pillars, 1/4-20 Thread	IMPERIAL	$58
M-SR-QRod Mounting Cube, 38.1 mm Diameter Posts and Pillars, M6 Thread	METRIC	$58
SR-SCPost Clamp, Sliding, 1.5 in. Diameter Posts and Pillars, 1/4-20 Thread	IMPERIAL	$95
M-SR-SCPost Clamp, Sliding, 38.1 mm Diameter Posts and Pillars, M4 Thread	METRIC	$95

Extension Posts and Spacers

For complete list, check 1.5 in. Post Extenders and Spacers family

Description	Compatibility	Avail.	Price
M-SR-1EOptical Post, 25.4 mm Height, 38.1 mm Diameter, M6 Thread	METRIC		$31
M-SR-3EOptical Post, 76.2 mm Height, 38.1 mm Diameter, M6 Thread	METRIC		$43
SR-2EOptical Post, 2.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	5 Weeks	$36
SR-4POptical Post, 4.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL		$75
SR-0.063-SPedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL		$14.70
SR-0.25-SPedestal Pillar Spacer, 0.25 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL		$17.70
