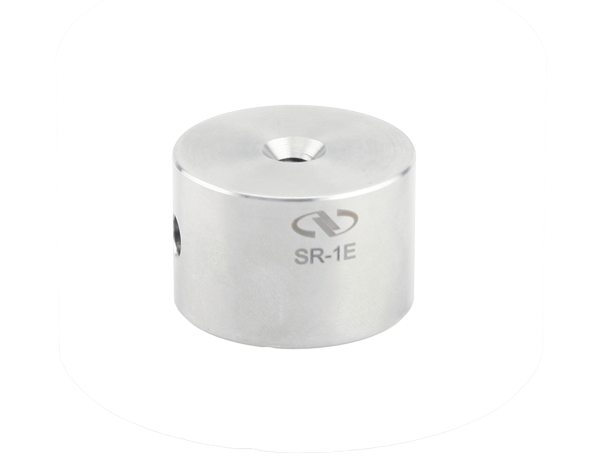

Optical Post, 25.4 mm Height, 38.1 mm Diameter, M6 Thread

Model: M-SR-1E

$29

In Stock

Compare

Add to List

Product Series Overview

1.5 in. Post Extenders and Spacers

The M-SR-1E Optical Pedestal Pillar Extension is 38.1 mm diameter and is used to extend height of an SR-Z pedestal pillar by 25.4 mm. It has M6 threaded holes at each end and a cross-drilled hole to assist in tightening. It can be combined with a SR-B pedestal base for a non-magnetic pedestal base configuration.

Specifications

Technical Specs

Type

Extension Post
Height

25.4 mm
Thread Type

M6

Material

Stainless Steel
Diameter

38.1 mm

Type

Extension Post
Height

25.4 mm
Thread Type

M6

Material

Stainless Steel
Diameter

38.1 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SR-E (94.9 kB, PDF)

Other

M-SR-1E RoHS Certificate (277.6 kB, PDF)
M-SR-1E_RoHS2021.pdf (680.2 kB, PDF)
