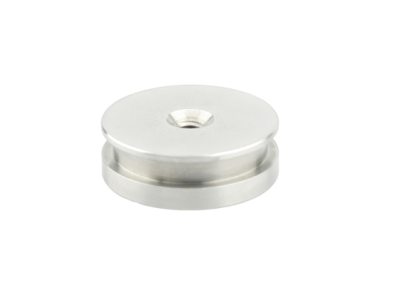

Pedestal Mounting Base, 38.1 mm Diameter Posts, M6 Thread

Model: M-SR-B

$20

In Stock

Compare

Add to List

Product Series Overview

1.5 in. Optical Rod Bases

The M-SR-B Non-magnetic Pedestal Base is used when pedestal mounting is needed but without the magnetic base. The M-SR-B pedestal base can be combined with the M-SR-E extension posts and SP-S spacers for various height applications. The SR-F, all-stainless steel clamping fork, is used to clamp the M-SR-B on to an optical table.

Specifications

Technical Specs

Type

Pedestal Base Adapter
Height

12.7 mm
Thread Type

M6

Material

Stainless Steel
Diameter

38.1 mm

Type

Pedestal Base Adapter
Height

12.7 mm
Thread Type

M6

Material

Stainless Steel
Diameter

38.1 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SR-B-303 (69.3 kB, PDF)

Other

M-SR-B RoHS Certificate (276.8 kB, PDF)
M-SR-B_RoHS2021.pdf (677.3 kB, PDF)
