Clamping Fork, 1.5 in. Diameter Pedestal Pillar, 1/4-20 (M6) Slot

Clamping Fork, 1.5 in. Diameter Pedestal Pillar, 1/4-20 (M6) Slot

Model: SR-F

$20

In Stock

Compare

Add to List

Product Series Overview

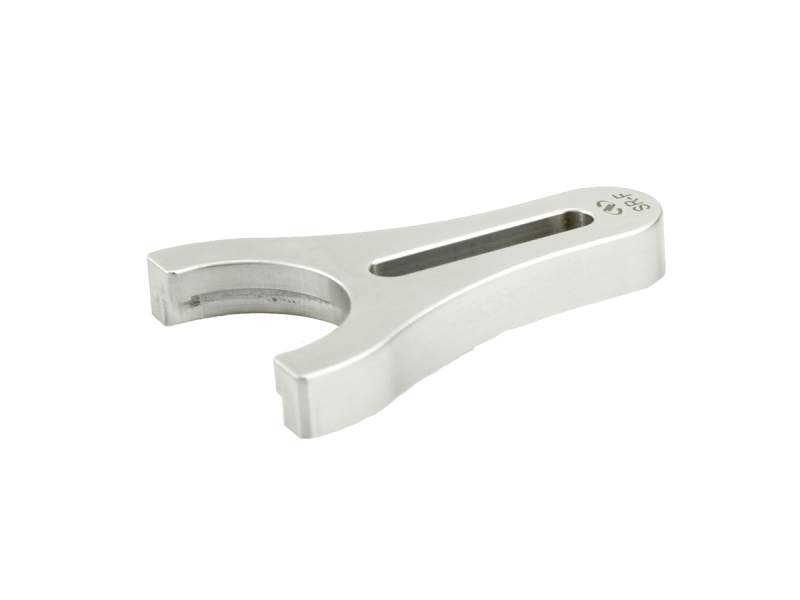

1.5 in. Pedestal Base Clamping Fork

The SR-F Pedestal Pillar Clamping Fork is made with stainless steel and used to provide fixed mounting of any of the SR Series 1.5 in. (38.1 mm) diameter pedestal pillars. A 1/4-20 (M6) slot provides a full 1.0 in. (25.4 mm) of adjustment and is compatible with either 1/4-20 or M6 socket-head cap screws.

Specifications

Technical Specs

Type

Pillar Clamping Fork
Thread Type

1/4-20

Material

Stainless Steel

Type

Pillar Clamping Fork
Thread Type

1/4-20

Material

Stainless Steel

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SR-F-304 (81.6 kB, PDF)

Other

SR-F RoHS Certificate (276.3 kB, PDF)
SR-F_RoHS2021.pdf (675.5 kB, PDF)

Related Products

Customers Who Bought This Item Also Bought

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SR-1Z Pedestal Pillar, Magnetic Base, 1 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL		In Stock	$41
		SR-2Z Pedestal Pillar, Magnetic Base, 2 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL		In Stock	$45

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		B-2C Adaptor Plate, 25x25 mm Stage to Optical Table or 65x65 mm Stage	IMPERIAL		In Stock	$53
		B-1A Double Slotted Base, 0.68 in. Range, Stainless Steel	UNIVERSAL		In Stock	$11.10

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SR-B Pedestal Mounting Base, 1.5 in. Diameter Posts and Pillars, 1/4-20	IMPERIAL		In Stock	$20

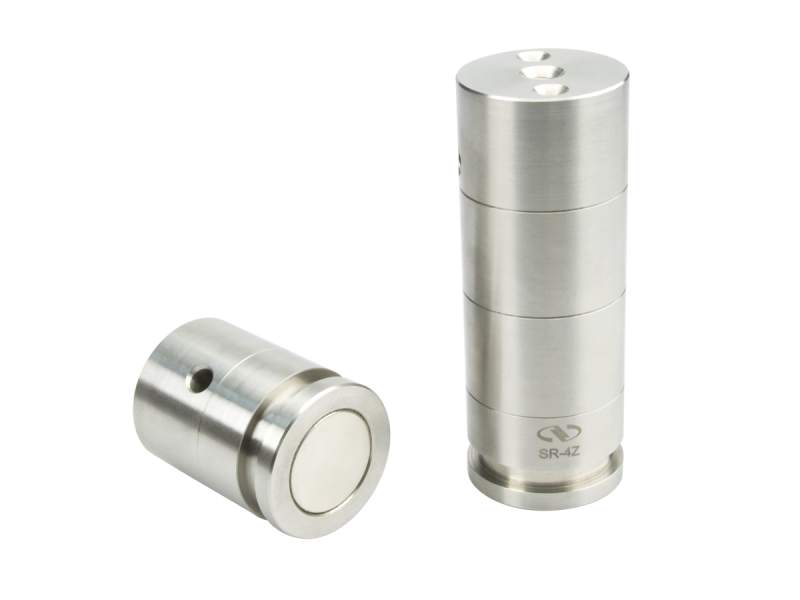

		SR-2Z Pedestal Pillar, Magnetic Base, 2 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL		In Stock	$45
