Compare Model Drawings, CAD & Specs Type Height Thread Type Material Availability Price
$17
In Stock
Pedestal Base Adapter 12.7 mm 1/4-20 Stainless Steel
In Stock
$229
In Stock
XY Platform Base 19.1 mm 1/4-20 Aluminum
In Stock
$17
In Stock
Pedestal Base Adapter 12.7 mm M6 Stainless Steel
In Stock
$229
XY Platform Base 19.1 mm M6 Aluminum

Features

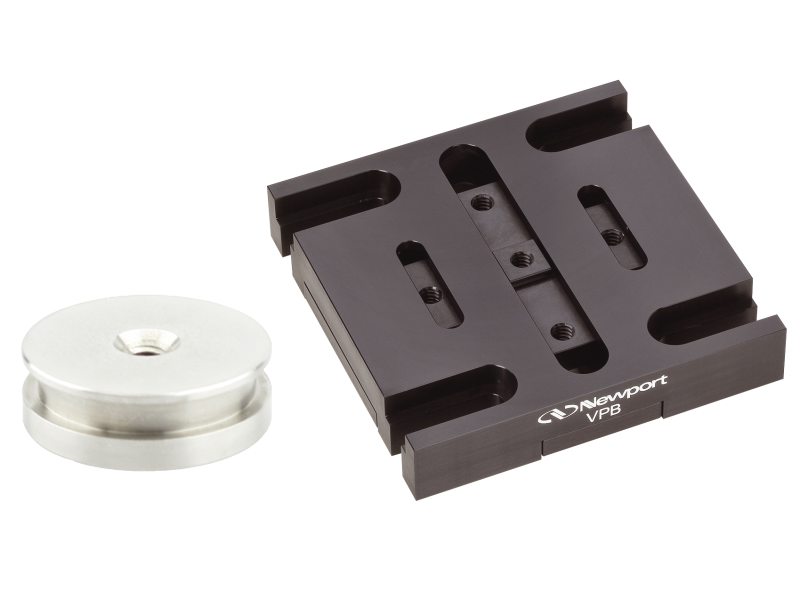

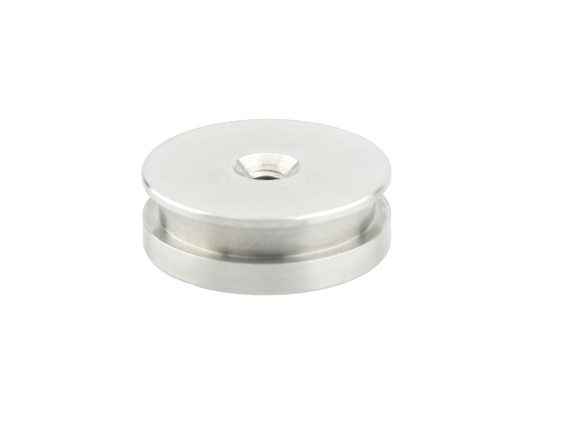

Pedestal Base Adapter

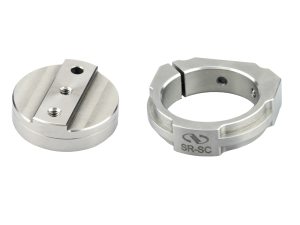

SR-B pedestal base is available to combine with SR-E extension posts, SR-S spacers, and the SR-ADP mount adapter for multiple height configurations. They together form a non-magnetic version of 1.5’’ optical pedestal.

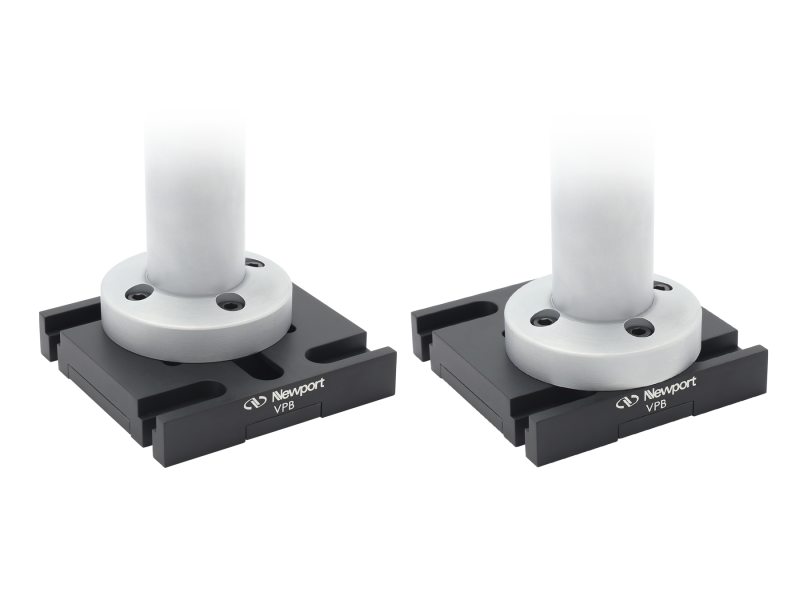

Translational Base

The VPB adjustable platform is a stiff, low-profile adjustable base designed for stable mounting of Newport rods and components anywhere on our optical tables and breadboards. The internal slider and slotted base together provide 1.0 in. X and Y sliding adjustment range for complete positioning freedom.
