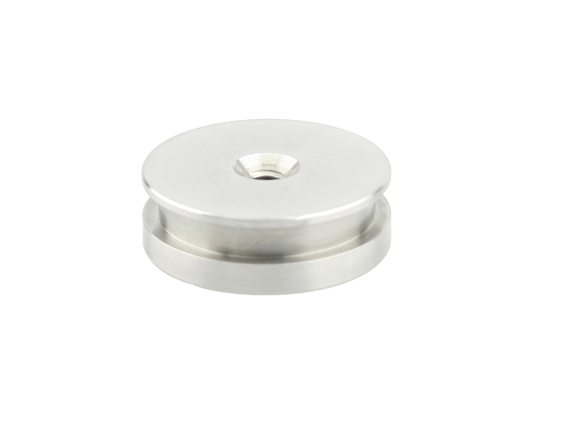

Pedestal Mounting Base, 1.5 in. Diameter Posts and Pillars, 1/4-20

Model: SR-B

$20

In Stock

Compare

Add to List

Product Series Overview

1.5 in. Optical Rod Bases

The SR-B Non-magnetic Mounting Base is used when pedestal mounting is needed but without the magnetic base, the SR-B pedestal base is provided which can be combined with the SR-E extension posts and SP-S spacers for various height applications. The SR-F, all-stainless steel clamping fork, is used to clamp the SR-B on to an optical table.

Specifications

Technical Specs

Type

Pedestal Base Adapter
Height

12.7 mm
Thread Type

1/4-20

Material

Stainless Steel
Diameter

38.1 mm

Type

Pedestal Base Adapter
Height

12.7 mm
Thread Type

1/4-20

Material

Stainless Steel
Diameter

38.1 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SR-B-303 (69.3 kB, PDF)

Other

SR-B RoHS Certificate (277.2 kB, PDF)
SR-B_RoHS2021.pdf (677.8 kB, PDF)
