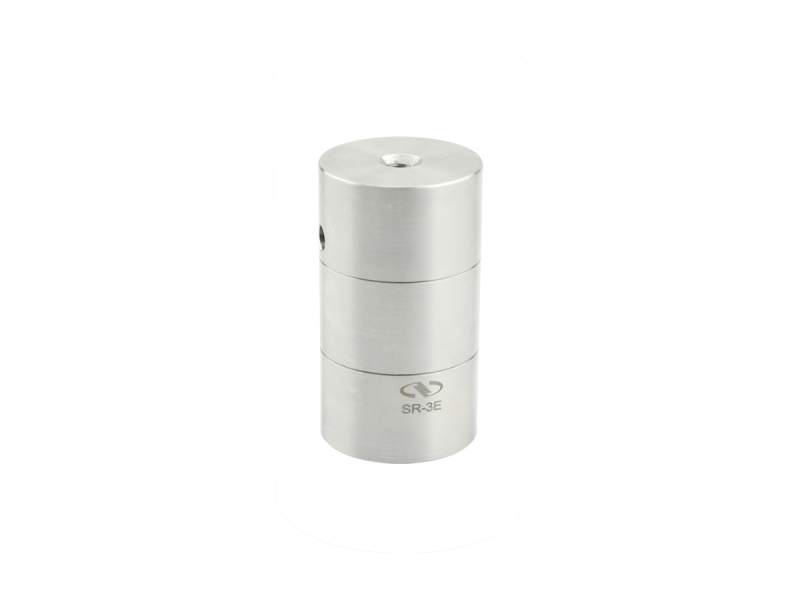

Optical Post, 3.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread

Model: SR-3E

$41

In Stock

Compare

Add to List

Product Series Overview

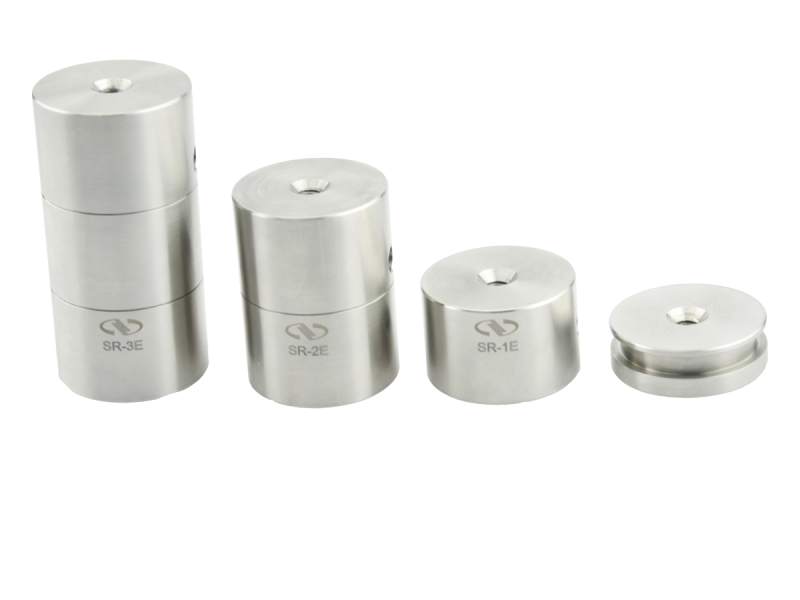

1.5 in. Post Extenders and Spacers

The SR-3E Optical Pedestal Pillar Extension is 1.5 in. diameter and is used to extend height of an SR-Z pedestal pillar by 3.0 in. It has 1/4-20 threaded holes at each end and a cross-drilled hole to assist in tightening. It can be combined with a SR-B pedestal base for a non-magnetic pedestal base configuration.

Specifications

Technical Specs

Type

Extension Post
Height

76.2 mm
Thread Type

1/4-20

Material

Stainless Steel
Diameter

38.1 mm

Type

Extension Post
Height

76.2 mm
Thread Type

1/4-20

Material

Stainless Steel
Diameter

38.1 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SR-E (94.9 kB, PDF)

Other

SR-3E RoHS Certificate (277.7 kB, PDF)
SR-3E_RoHS2021.pdf (680.7 kB, PDF)
