Mirror Mount Adaptor, 38.1 mm Diameter Posts and Pillars, M4 and M6

Model: M-SR-ADP

Mirror Mount Adaptor, 38.1 mm Diameter Posts and Pillars, M4 and M6

Model: M-SR-ADP

$18

In Stock

Add to List

Compare

Add to List

Overview

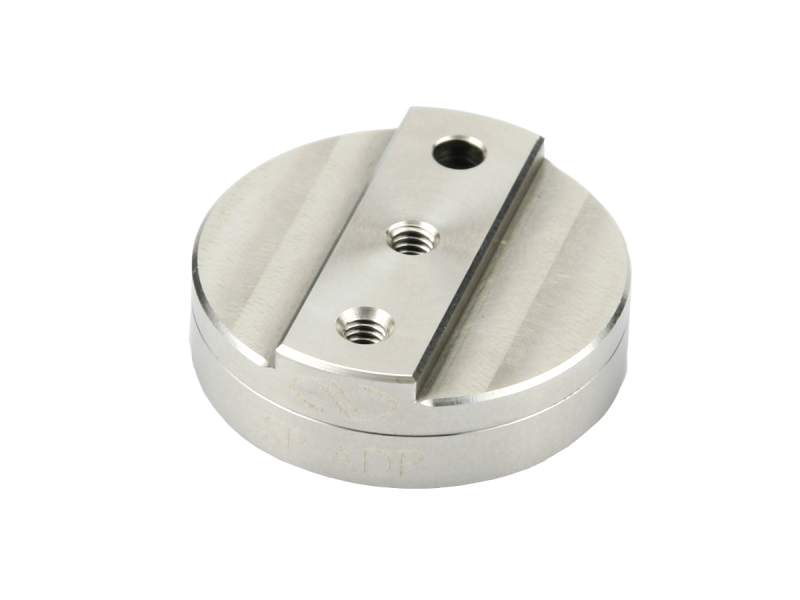

The M-SR-ADP mounting adaptor allows rod-mounting of components, like mirror mounts, at non-standard heights. It is required for mount any of the SN100 or SS100 Suprema^® mirror mounts. With both a counterbored thru hole and threaded mounting holes this adaptor mounts threaded or thru-hole mounts. The scribed line around the diameter of the adaptors to set height when being used with the Q-XE-RA-1 to center optical axis height of a mirror mount being used within the Q-OC-1 Cube.

Product Series Overview

1.5 in. Post Mirror Mount Adapters

Technical Specs

Type

Mirror Mount Adaptor
Height

12.7 mm
Thread Type

M4 and M6

Material

Stainless Steel
Diameter

38.1 mm

Technical Specs

Type

Mirror Mount Adaptor
Height

12.7 mm
Thread Type

M4 and M6

Material

Stainless Steel
Diameter

38.1 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SR-ADP-302 (112.5 kB, PDF)

Other

M-SR-ADP RoHS Certificate (277.7 kB, PDF)

Mirror Mount Adaptor, 38.1 mm Diameter Posts and Pillars, M4 and M6

Model: M-SR-ADP

$18

In Stock

Compare

Add to List

Related Products

Accessories

Description	Compatibility	Avail.	Price
M-SK-M4A Black Oxide Screw Kit, M4, Assortment, Qty 249	UNIVERSAL	In Stock	$59
M-SK-M5 Black Oxide Screw Kit, Metric Socket Head Cap, Assortment, Qty 180	UNIVERSAL	In Stock	$59
M-SK-M6.16A Black Oxide Screw Kit, Set Screws, M6 x 16mm, Qty 100	UNIVERSAL	In Stock	$21
M-SK-M6.16B Black Oxide Screw Kit, Socket Head Cap, M6 x 16mm, Qty 100	UNIVERSAL	In Stock	$27
M-SK-M6A Black Oxide Screw Kit, M6, Assortment, Qty 261	UNIVERSAL	In Stock	$59

Similar

Description	Compatibility	Avail.	Price
CLH-9 Collimator and Laser Diode Adapter, 9 mm, 1 inch Mirror Mounts	UNIVERSAL	In Stock	$33
Q-A50-E Mirror Mount Adaptor, .5 in ULTIMA^® or Suprema^® to Aegis Cubic Enclosure	UNIVERSAL	In Stock	$42
UPA2-1 Mirror Mount Adapter, 50.8 mm to 25.4 mm Diameter, For ULTIMA^®	UNIVERSAL	In Stock	$34
UPA1-.5 Mirror Mount Adapter, 25.4 mm to 12.7 mm Diameter, For ULTIMA^®	UNIVERSAL	In Stock	$23
UPA1-.75 Mirror Mount Adapter, 25.4 mm to 19.05 mm Diameter, For ULTIMA^®	UNIVERSAL	In Stock	$34

Compatible

Description	Compatibility	Avail.	Price
Q-XE-RA-1 Rod Adaptor, Aegis Qube™, SR Series	UNIVERSAL	In Stock	$35
M-SR-B Pedestal Mounting Base, 38.1 mm Diameter Posts, M6 Thread	METRIC	In Stock	$17
M-SR-QA Thread Adaptor, Rod Cube, 38.1 mm Diameter Posts and Pillars, M6 Thread	METRIC	In Stock	$12.50
M-SR-Q Rod Mounting Cube, 38.1 mm Diameter Posts and Pillars, M6 Thread	METRIC	In Stock	$46

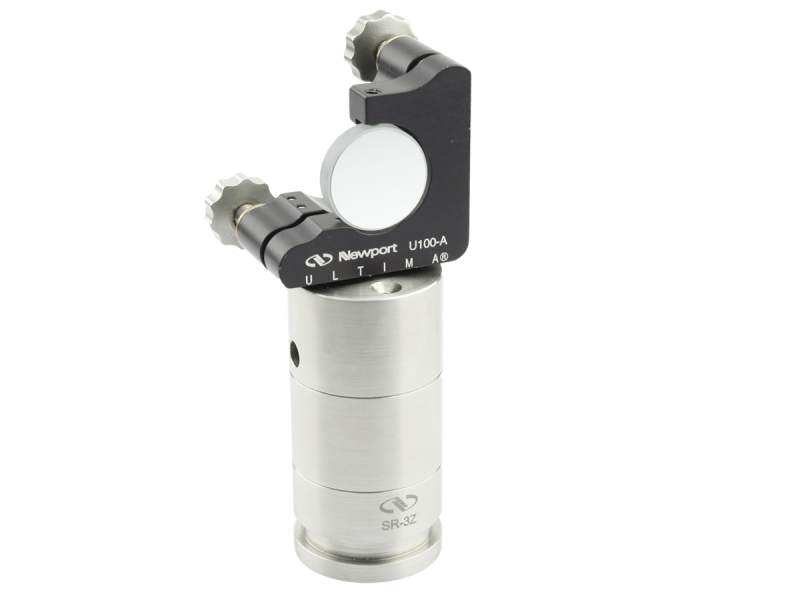

M-SR-3Z Pedestal Pillar, Magnetic Base, 76.2 mm Height, 38.1 mm Diameter, M6	METRIC	In Stock	$41
