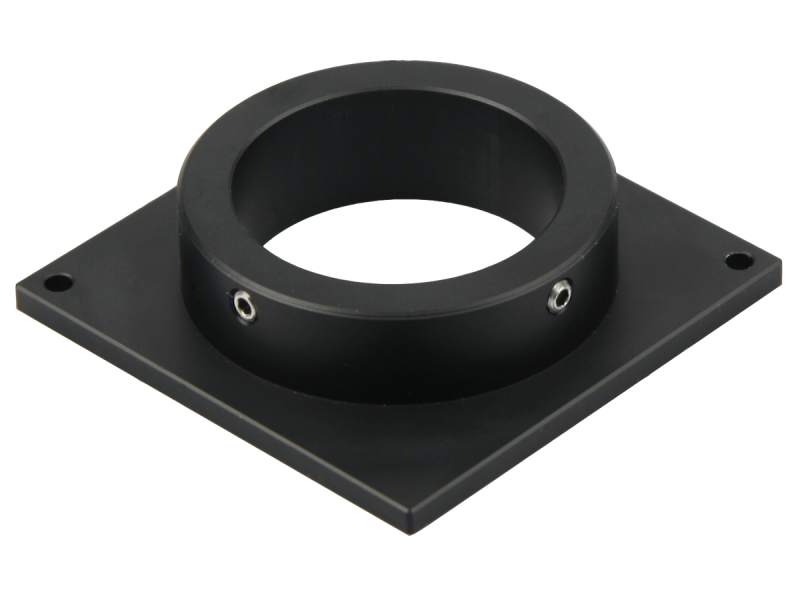

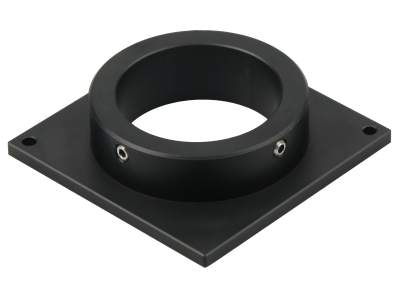

1.5 in. Rod Adaptor, SR Series, Aegis Qube

Model: Q-XE-RA-1

$42

In Stock

Compare

Add to List

Product Series Overview

Adapter Plates, Aegis Qube

TheQ-XE-RA-1 Aegis Qube™ Adaptor allows SR series 1.5 in. optical support rods to be used with the Aegis Qube™ System. This rod adaptor is made to attach to the top of the Q-OC-1 cubic enclosure and will provide super stable direct mounting of a compatible mirror mount to the rod within the cube. The Q-XE-RA-1 is made to be used with the SR-ADP (M-SR-ADP) when mounting Suprema^® mirror mounts with the Aegis Qube System

Specifications

Technical Specs

Type

Aegis Cube Adaptor
Material

Aluminum

Type

Aegis Cube Adaptor
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

Q-XE-RA-1 DGW (85.5 kB, PDF)

Other

Q-XE-RA-1 RoHS Certificate (277.7 kB, PDF)
Q-XE-RA-1_RoHS2021.pdf (681 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
SK-10 Black Oxide Screw Kit, Socket Head Cap, Assortment, Qty 180	UNIVERSAL	In Stock	$72
SK-25.75A Black Oxide Screw Kit, Set Screws, 1/4-20 x 0.75 inch, Qty 100	UNIVERSAL	In Stock	$27
SK-25.75B Black Oxide Screw Kit, Socket Head Cap, 1/4-20 x 0.75 inch, Qty 100	UNIVERSAL	In Stock	$27
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128

Similar

Description	Compatibility	Avail.	Price
Q-XE-TA-1 Adaptor Plate, Beam Tube, Aegis Qube	UNIVERSAL	In Stock	$42
Q-XE-DI-1 Access Plate, Probe Beam, Aegis Qube	UNIVERSAL	Contact Us	$99
Q-XE-MA-1 Adaptor Plate, Rod Clamp, Aegis Qube	UNIVERSAL	In Stock	$42
Q-CP-1 Post Mount Adaptor, 8-32 CLR, Aegis Qube	UNIVERSAL	In Stock	$42
Q-XE-DI-2 Access Plate, SMA Beam, Aegis Qube	UNIVERSAL	In Stock	$99

Compatible

Description	Compatibility	Avail.	Price
SR-ADP Mirror Mount Adaptor, 1.5 in. Diameter Posts and Pillars, 8-32 and 1/4-20	IMPERIAL	In Stock	$22
SR-3Z Pedestal Pillar, Magnetic Base, 3 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$47
Q-OC-1 Cubic Enclosure, 1 in. Optical Mounts, Aegis Qube Beam Routing System	UNIVERSAL	In Stock	$216
SR-0.125-S Pedestal Pillar Spacer, 0.125 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	In Stock	$15.10
SR-4P Optical Post, 4.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	3 Weeks	$72
