Features
Cube Connector Peg
The Q-CC-1 Cube Connector Pegs are used to mount two cubes together, face-to-face.
Cube Cover Plate
Three types of cover plates are available to cover any open face of the Q-OC-1 cube: blank Q-XE-CP-B, Q-XE-CP-1 with access holes, and Q-XE-CP-W with sliding window.
Beam Tube Adaptor Plate

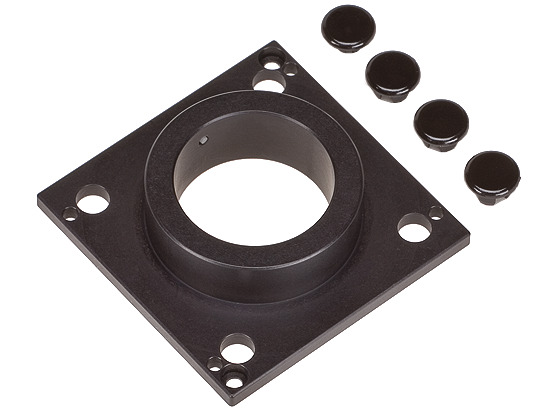

The Q-XE-TA-1 and Q-XE-TA-R adaptors allow Q-BT series beam tubes to be attached to any of the 5 open faces of the cube. Q-XE-TA-R is designed to be light tight while Q-XE-TA-1 provides positioning flexibility with a slightly larger aperture.
Lens Tube Adaptor Plate

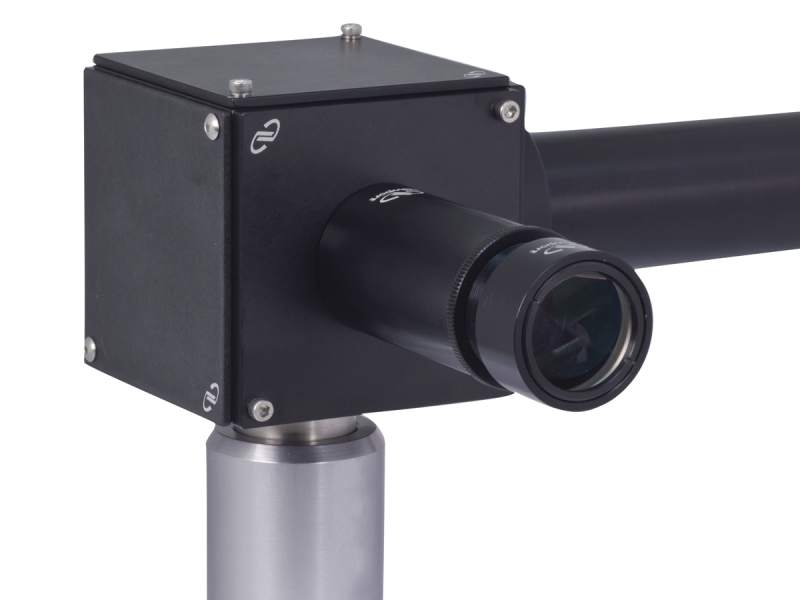

The Q-XE-LT10-A allows LT10 series lens tube to be attached to any of the 5 open faces of the cube.

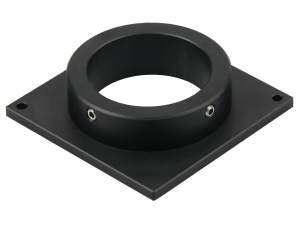

Post Mounting Adaptor Plate
The Q-XE-RA-1 allows 1.5 in. optical pedestal to be used with the Aegis Qube™ System. Q-CP-1 features 8-32 counterbored hole in the center and allows optical post mounting of the cube via any one of its 5 open faces.
Rod Clamping Adaptor Plate

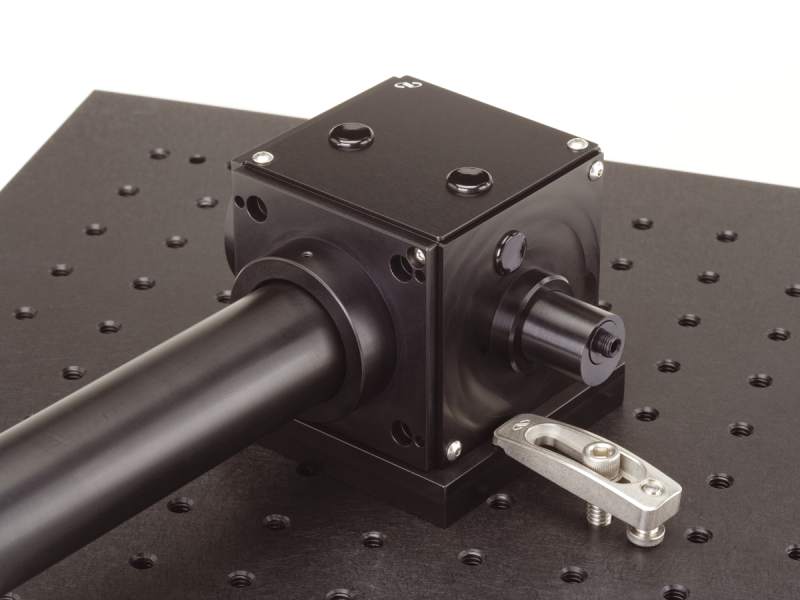

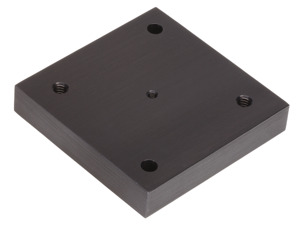

The Q-XE-MA-1 allows a cube to be mounted directly to an optical table via base clamps such as BC-5
