Adaptor Plate, Beam Tube, Light Tight
Adaptor Plate, Beam Tube, Light Tight
Model: Q-XE-TA-R
Product Series Overview

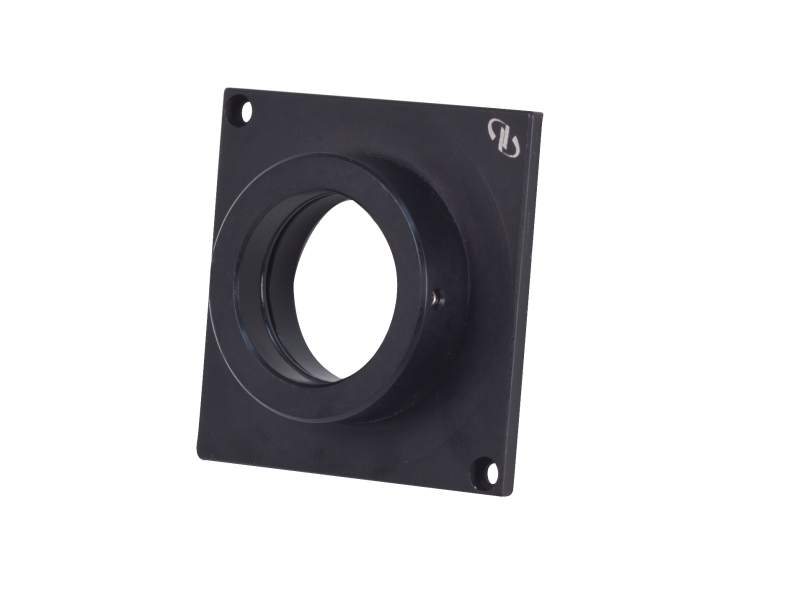

Adapter Plates, Aegis QubeThe Q-XE-TA-R light tight beam tube adaptor plate, which can attach to any of the 5 open faces of the cube, allows any of the Q-BT series beam tubes to be interfaced to the cube. The fit between the Q-XE-TA-R beam tube adaptor and the Q-BT beam tubes are designed to be light tight.
Resources & Downloads
2D Product Drawings
Q-XE-TA-R-326(95.2 kB, PDF)
Other
Q-XE-TA-R RoHS Certificate(278.8 kB, PDF)
