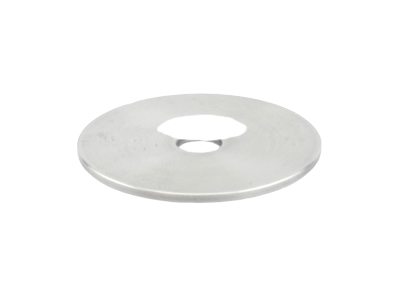

Pedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR
Pedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR
Model: SR-0.063-S
Product Series Overview

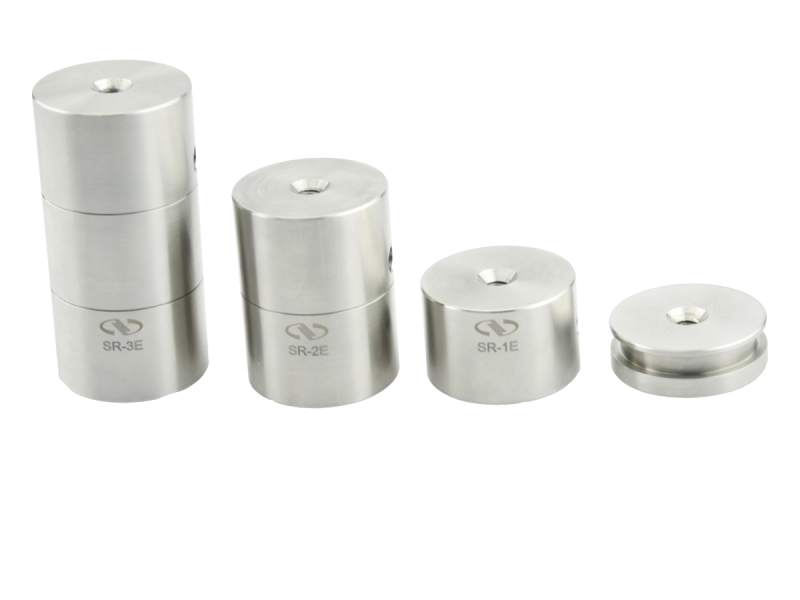

1.5 in. Post Extenders and SpacersThe SR-0.063-S Pedestal Pillar Spacer allows you to adjust the fixed height of our 1.5 in. (38.1 mm) diameter pedestal pillars by 1/16th of an inch (1.59 mm). With pedestal pillar spacers, getting closer to the exact optical height without sacrificing stability is now possible. 1/4-20 (M6) CLR hole.
Resources & Downloads
2D Product Drawings
SR-S(83.6 kB, PDF)
Other
SR-0.063-S RoHS Certificate(278.2 kB, PDF) SR-0-063-S_RoHS2021.pdf(682.3 kB, PDF)
