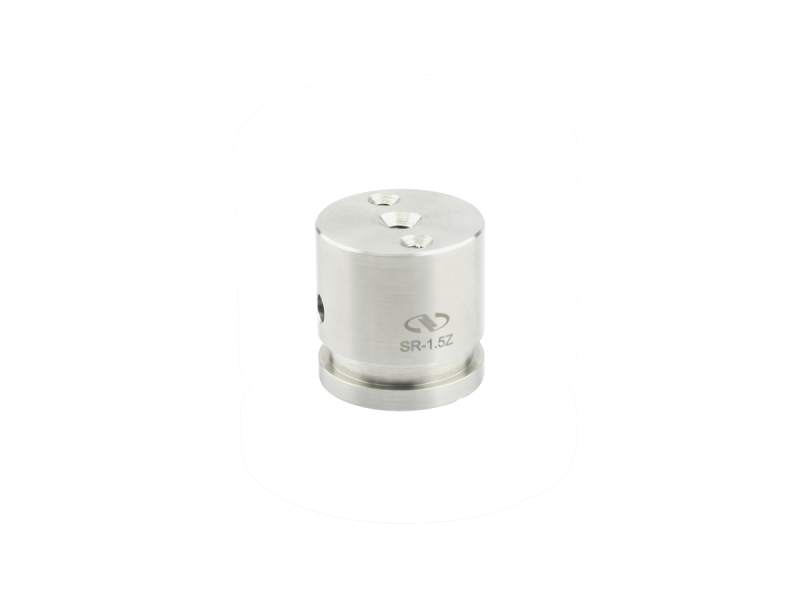

Pedestal Pillar, Magnetic Base, 1.5 in. Height, 1.5 in. Diameter, 1/4-20

Model: SR-1.5Z

$43

4 Weeks

Compare

Add to List

Product Series Overview

1.5 in. Magnetic Base Optical Pedestals

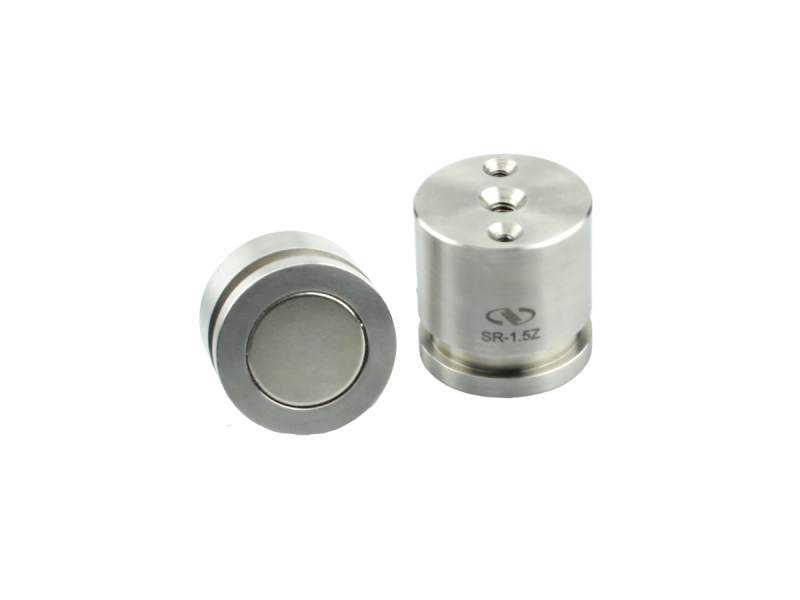

The SR-1.5Z 1.5 in. Optical Pedestal Pillar has a 1.5 in. height and is constructed from solid stainless steel. SR Series optical pedestal pillars are designed for maximum stability by integrating multiple features into a single part. Rather than having several separate adaptors, these support pillars have a machined-in pedestal base and multiple machined-in mounting holes. For additional ease of use and functionality, each of the SR-Z rods incorporates graduated height marks and an integrated high-strength magnet in the pedestal pillar base. The SR-F, all-stainless steel clamping fork, is used to clamp these rods on to an optical table.

Specifications

Technical Specs

Type

Magnetic Pedestal Pillar
Height

38.1 mm
Thread Type

8-32 and 1/4-20

Material

Stainless Steel
Diameter

38.1 mm

Type

Magnetic Pedestal Pillar
Height

38.1 mm
Thread Type

8-32 and 1/4-20

Material

Stainless Steel
Diameter

38.1 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SR-Z (106.3 kB, PDF)

Other

SR-1.5Z RoHS Certificate (279 kB, PDF)
SR-1-5Z_RoHS2021.pdf (682.9 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SK-25.75A Black Oxide Screw Kit, Set Screws, 1/4-20 x 0.75 inch, Qty 100	UNIVERSAL	In Stock	$27
SK-10 Black Oxide Screw Kit, Socket Head Cap, Assortment, Qty 180	UNIVERSAL	In Stock	$72
SK-25.75B Black Oxide Screw Kit, Socket Head Cap, 1/4-20 x 0.75 inch, Qty 100	UNIVERSAL	In Stock	$27
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72

Similar

Description	Compatibility	Avail.	Price
SR-3Z Pedestal Pillar, Magnetic Base, 3 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$47
SR-4Z Pedestal Pillar, Magnetic Base, 4 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$54
SR-2Z Pedestal Pillar, Magnetic Base, 2 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$45
SR-6Z Pedestal Pillar, Magnetic Base, 6 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	2 Weeks	$86
SR-1Z Pedestal Pillar, Magnetic Base, 1 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$41

Compatible

Description	Compatibility	Avail.	Price
SR-ADP Mirror Mount Adaptor, 1.5 in. Diameter Posts and Pillars, 8-32 and 1/4-20	IMPERIAL	In Stock	$22
SR-B Pedestal Mounting Base, 1.5 in. Diameter Posts and Pillars, 1/4-20	IMPERIAL	In Stock	$20
SR-F Clamping Fork, 1.5 in. Diameter Pedestal Pillar, 1/4-20 (M6) Slot	UNIVERSAL	In Stock	$20
SR-1E Optical Post, 1.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	In Stock	$29
SR-Q Rod Mounting Cube, 1.5 in. Diameter Posts and Pillars, 1/4-20 Thread	IMPERIAL	In Stock	$54
