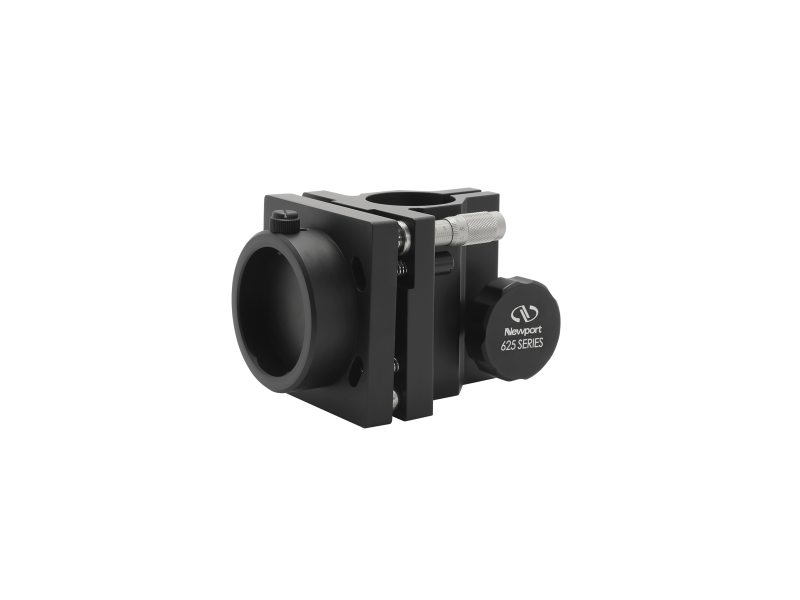

Mirror Mount, 38.1 mm Post Mounted, 50.8 mm Diameter, Micrometer
Mirror Mount, 38.1 mm Post Mounted, 50.8 mm Diameter, Micrometer
Model: 625-RC2-M
Product Series Overview
Rod-Mount Kinematic Optical MountsThe 625-RC2-M Rod Mount Kinematic Mirror Mount is a rod-mountable device that provides vertical positioning flexibility and convenience for 50.8 mm diameter mirrors. It is compatible with Newport's rod models 40, 41, and 45 and incorporate the same stable kinematic design as our 600A Series Optical Mounts, with hardened kinematic contacts at all three support points. The 625-RC2 is configured with two SM Micrometers for a ±10° adjustment range.
Resources & Downloads
2D Product Drawings
625-RC2-DWG-S(90.9 kB, PDF)
Other
625-RC2-M RoHS Certificate(283.1 kB, PDF)
