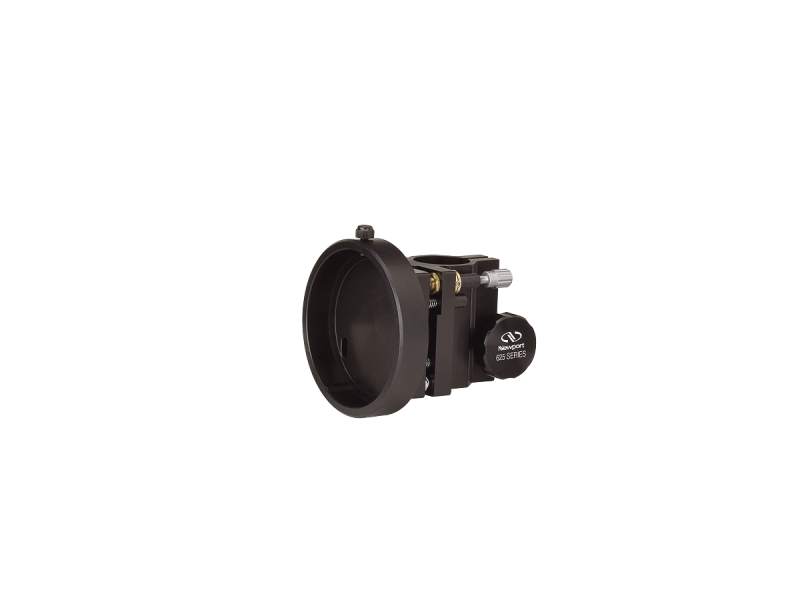

Mirror Mount, 1.5 in. Post Mounted, 4.0 in. Diameter, Knob Adjustment

Model: 625-RC4

$525

In Stock

Compare

Add to List

Product Series Overview

Rod-Mount Kinematic Optical Mounts

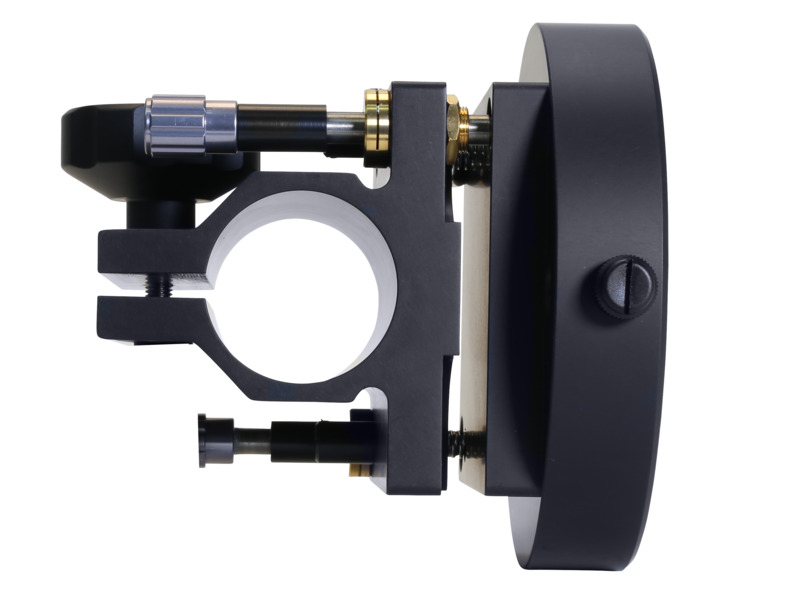

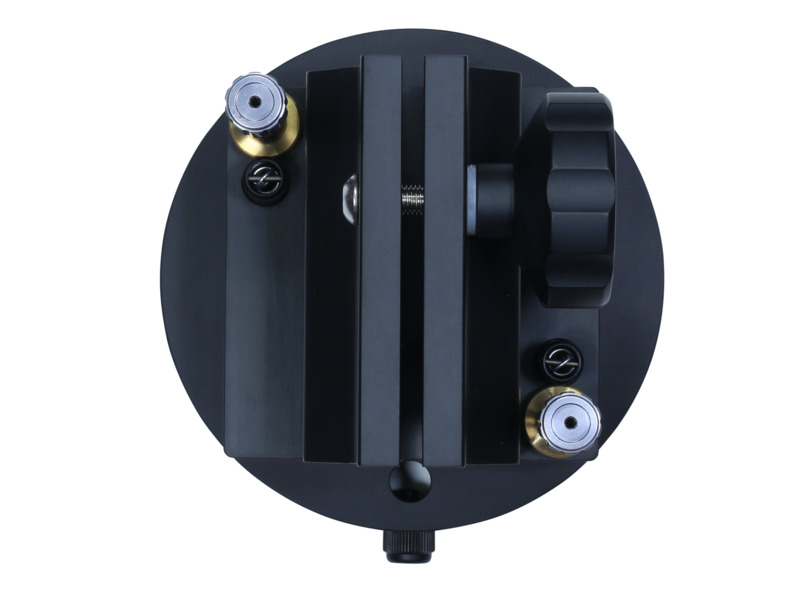

The 625-RC4 Rod Mount Kinematic Mirror Mount is a rod-mountable device that provides vertical positioning flexibility and convenience for 4.0 in. diameter mirrors. It is compatible with Newport's rod models 40, 41, and 45 and incorporate the same stable kinematic design as our 600A Series Optical Mounts, with hardened kinematic contacts at all three support points. The 625-RC2 is configured with two high precision AJS Adjustment Screws for a ±10° adjustment range.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

101.6 mm
Actuator Locks

Yes
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy

Angular Range

±10°
Material

Aluminum
Drive Type

Knob, locking

Mechanism

Kinematic
Optic Diameter

101.6 mm
Actuator Locks

Yes
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy

Angular Range

±10°
Material

Aluminum
Drive Type

Knob, locking

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

625-RC4-DWG-S (90.7 kB, PDF)

Other

625-RC4 RoHS Certificate (286.3 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$20
BB-L Optical Beam Block, Tool Holder, Magnetic-Base, Large	UNIVERSAL	In Stock	$43
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$42
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$39
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$74

Similar

Description	Compatibility	Avail.	Price
625-RC6 Mirror Mount, 1.5 in. Post Mounted, 6.0 in. Diameter, Knob Adjustment	UNIVERSAL	In Stock	$684
625-RC2 Mirror Mount, 1.5 in. Post Mounted, 2.0 in. Diameter, Knob Adjustment	UNIVERSAL	In Stock	$481
625-RC4-M Mirror Mount, 38.1 mm Post Mounted, 101.6 mm Diameter, Micrometer	UNIVERSAL	In Stock	$625

Compatible

Description	Compatibility	Avail.	Price
41 Optical Post, 7 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	2 Weeks	$146
2998 Optical Post, 14 in. Height, 1.5 in. Diameter, 1/4-20 Threads Both Ends	UNIVERSAL	5 Weeks	$147
40 Optical Post, 14 in. Height, 1.5 in. Diameter, 1/4-20 Thread	IMPERIAL	In Stock	$160
A-4-3 Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch)	UNIVERSAL	In Stock	$137
45 Damped Optical Post, Mounting Base, 14 in. Height, 0.29 in. CLR	UNIVERSAL	In Stock	$288
