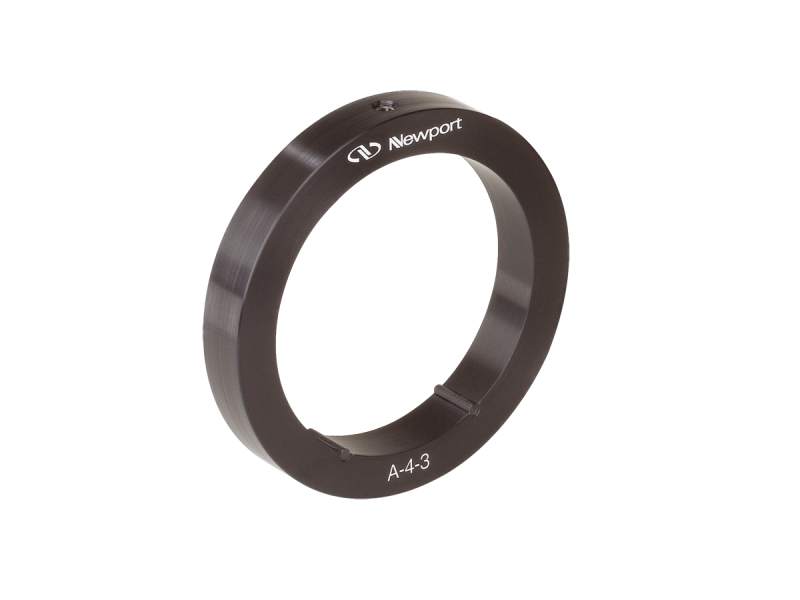

Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch)

Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch)

Model: A-4-3

$133

In Stock

Compare

Add to List

Product Series Overview

Mirror Mount Size Adapters

The A-4-3 Optical Mount Adapter allows a 3 inch (76.2 mm) diameter optic to be mounted in a 4 inch (76.2 mm) diameter optical mount adding additional utility to your existing optical mounts.

Specifications

Technical Specs

Optic Diameter

76.2 mm
Material

Aluminum
Optic Thickness

15.2 m

Outside Diameter

101.6 mm
Special Features

Mounting adapter

Optic Diameter

76.2 mm
Material

Aluminum
Optic Thickness

15.2 m

Outside Diameter

101.6 mm
Special Features

Mounting adapter

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

A-4-3-S (67.2 kB, PDF)

Other

A-4-3 RoHS Certificate (278.2 kB, PDF)
A-4-3_RoHS2021.pdf (681.6 kB, PDF)
