Compare Model Drawings, CAD & Specs Optic Diameter Outside Diameter Availability Price
Optical Diameter Adapter, 605-2 Gimbal Mount, 2.0 to 1.0 in.
$138
2 Weeks
25.4 mm 50.8 mm
2 Weeks
Optical Diameter Adapter, 605-4 Gimbal Mount, 4.0 to 3.0 in.
$171
In Stock
76.2 mm 101.6 mm
In Stock
Optical Mount Adaptor, 50.8 mm to 25.4 mm (2 to 1 inch)
$61
In Stock
25.4 mm 50.8 mm
In Stock
Optical Mount Adaptor, 50.8 mm to 38.1 mm (2 to 1.5 inch)
$63
In Stock
38.1 mm 50.8 mm
In Stock
Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch)
$107
In Stock
76.2 mm 101.6 mm
In Stock
Optical Mount Adaptor, 19.1 mm to 12.7 mm (0.75 to 0.5 inch)
$43
2 Weeks
12.7 mm 19.1 mm
2 Weeks
Mirror Mount Adapter, 25.4 mm to 12.7 mm Diameter, For ULTIMA®
$23
In Stock
12.7 mm 25.4 mm
In Stock
Mirror Mount Adapter, 25.4 mm to 19.05 mm Diameter, For ULTIMA®
$34
In Stock
19.1 mm 25.4 mm
In Stock
Mirror Mount Adapter, 50.8 mm to 25.4 mm Diameter, For ULTIMA®
$34
In Stock
25.4 mm 50.8 mm
In Stock

Features

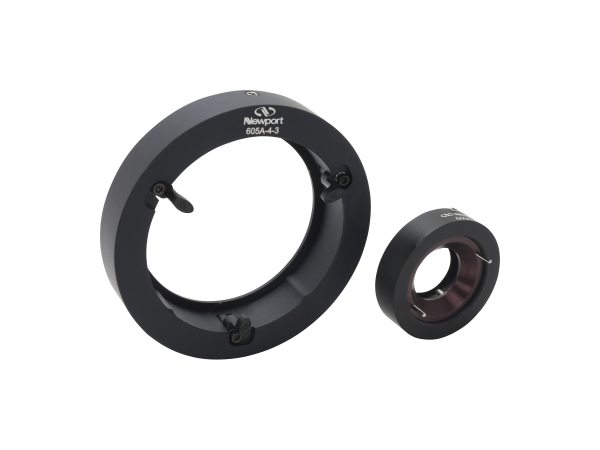

Low Wave Front Distortion Adapters

Designed for full range Gimbal Mounts 605-4 and 605-2, the 605A series adapters have an axial three-point mounting mechanism to gently, but securely, hold optics with tight flatness tolerances.  With the axial 3-point mounting, because there are twice as many mounting points, the forces that would cause distortion are essentially cut in half, more distributed, and axially opposite to eliminate bending.

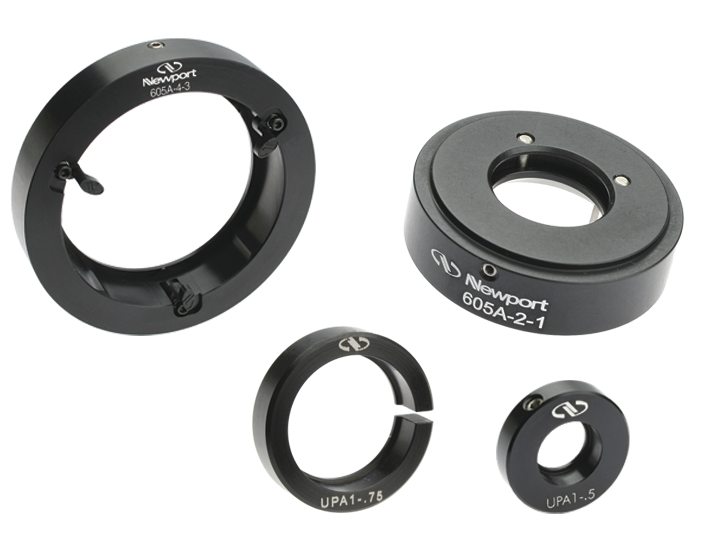

ULTIMA® Mirror Mount Adapters

UPA1-.5 , UPA1-.75 , UPA2-1 : These adaptors allow the use of smaller diameter optics in a U100-A or U200-A .

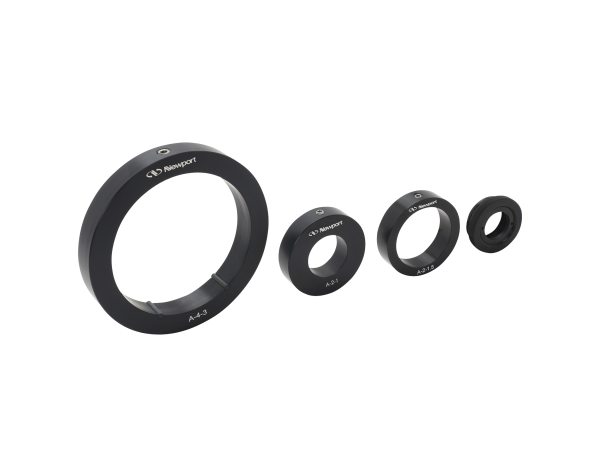

Optic Mount Adapters

A-1.25-1, A-2-1, A-2-1.5 and A-4-3 are basic size adapters that work with your existing optical mounts and extend their compatibility to different size optics.
