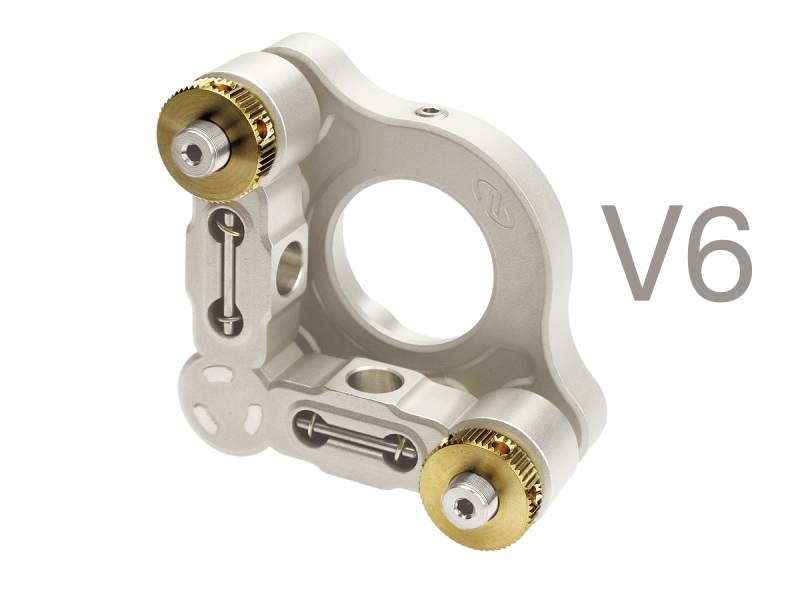

Mirror Mount, Suprema^®, 1.0 in, (2) 100-TPI Locking Hex Actuators, Vacuum

Model: SS100-F2H-V6

$203

In Stock

Compare

Add to List

Product Series Overview

Low Outgassing and LaserClean Mirror Mounts

The SS100-F2H-V6 vacuum compatible Suprema^® Stainless Steel Kinematic Optical Mounts are fabricated from powdered stainless steel and specially prepared high vacuum environments.The SS100 has Full Aperture version with 100-TPI actuators. Polished and lapped carbide pads enable smooth, repeatable motion and outstanding stability. These mounts have a two-actuator configuration with locking Hex Adjustment Screws providing tip and tilt adjustability. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

Yes
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec
Angular Range

±4°

Optic Loading

Front
Material

Stainless Steel
Drive Type

Allen-Key, locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm
Vacuum Compatibility

10^-6 Torr

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

Yes
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec
Angular Range

±4°

Optic Loading

Front
Material

Stainless Steel
Drive Type

Allen-Key, locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm
Vacuum Compatibility

10^-6 Torr

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SS100 and SC100 (630.9 kB, PDF)

Literature

Vaccum Compatible Products Brochure (3.8 MB, PDF)

Other

MKS EU RoHS3 - SN100C-F2H-V6 and SS100-F2H-V6 (222.1 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
CCL-1 Cable Clamps, Qty 5 Short and 5 Long	UNIVERSAL	In Stock	$48
PS-0.125 Pedestal Spacer, 0.125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR	UNIVERSAL	In Stock	$10.10
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40

Similar

Description	Compatibility	Avail.	Price
HVM-.5 Kinematic Mirror Mount, Vertical Drive, 0.5 in., (2) 100-TPI Allen-Keys	UNIVERSAL	In Stock	$177
SS100-F3H Mirror Mount, Suprema^®, 1.0 in, (3) 100-TPI Locking Hex-Broach Actuators	UNIVERSAL	In Stock	$185
SC100-R3H-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 1.0 in., 3 100-TPI Locking Hex, LH	UNIVERSAL	In Stock	$180
SC100-F3H Mirror Mount, Suprema^®, Clear Edge, 1.0 in., (3) 100-TPI Locking Hex	UNIVERSAL	In Stock	$180
SC100-R2H-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 1.0 in., 2 100-TPI Locking Hex, LH	UNIVERSAL	In Stock	$161
AG-M050N Piezo Optical Mount, Compact, 0.5 in. Optics	UNIVERSAL	In Stock	$645
U50-A1 Mirror Mount, ULTIMA^®, Clear Edge, 0.5 in., (3) 100-TPI Allen-Keys	UNIVERSAL	In Stock	$139
U100-AC Mirror Mount, ULTIMA^®, Center, 1.0 in. Diameter, No Actuators	UNIVERSAL	In Stock	$252
P100-AI21 Mirror Mount, PERFORMA-i, 1.0 in., 100 TPI, 2 Locking Allen-Keys	UNIVERSAL	In Stock	$114
SC100-F2H Mirror Mount, Suprema^®, Clear Edge, 1.0 in., (2) 100-TPI Locking Hex	UNIVERSAL	In Stock	$161

Compatible

Description	Compatibility	Avail.	Price
UPA-RM1A Rotation Mount, Polarizer, 1 inch, For U100-A Mount	UNIVERSAL	In Stock	$72
UPA-OM Objective Lens Adapter, RMS Thread, 1 inch Mount	UNIVERSAL	In Stock	$48
UPA-CH1 Cube Beamsplitter Holder, 1.0 in. Cubes, For 1.0 in. Mirror Mounts	UNIVERSAL	In Stock	$101
UPATO Thin Optics Adapter, 1.0 in. (25.4 mm) Diameter	UNIVERSAL	In Stock	$48
UPA-45D1 45 Degree Mirror Holder, 25.4 mm Diameter	UNIVERSAL	In Stock	$56
