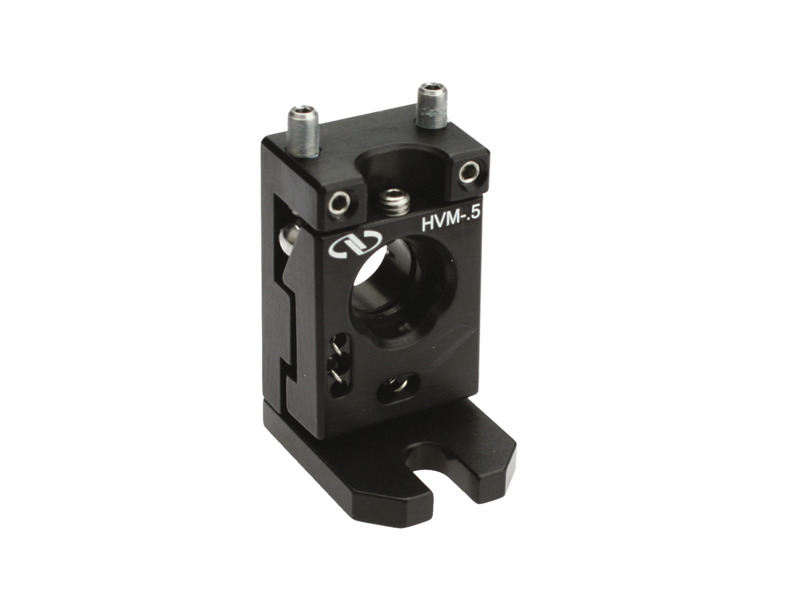

Kinematic Mirror Mount, Vertical Drive, 0.5 in., (2) 100-TPI Allen-Keys

  • Mechanism
    Kinematic
  • Optic Diameter
    12.7 mm
  • Number of Actuators
    2
  • Actuator Locks
    Yes
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    5.8 arc sec
  • Angular Range
    ±2.5°
  • Optic Loading
    Front
  • Material
    Anodized Aluminum
  • Drive Type
    Allen-Key, locking
  • Thread Type
    1/4-20 (M6) SLOT
  • Optical Axis Height
    25.4 mm
  • Special Features
    Table Mounting
