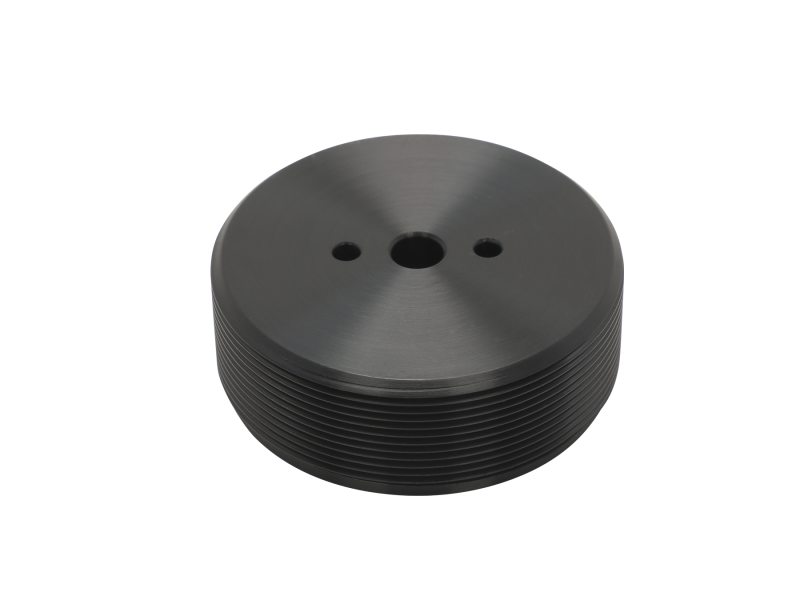

Solid Insert, RSP-2T Rotation Stage

Model: RSA-2TI

$48

In Stock

Compare

Add to List

Product Series Overview

High Performance Optic Rotation Mounts

The RSA-2TI Solid Insert features 2.063-20 external thread and central counterbored hole for 1/4-20 or M6 cap screws. It is designed for RSP-2T rotation stage to create a solid platform for on-axis mounting of optical component supported by an optical post.

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

RSA-2TI (140.9 kB, PDF)

Other

RSA-2TI RoHS Certificate (277.9 kB, PDF)
RSA-2TI_RoHS2021.pdf (680.5 kB, PDF)
