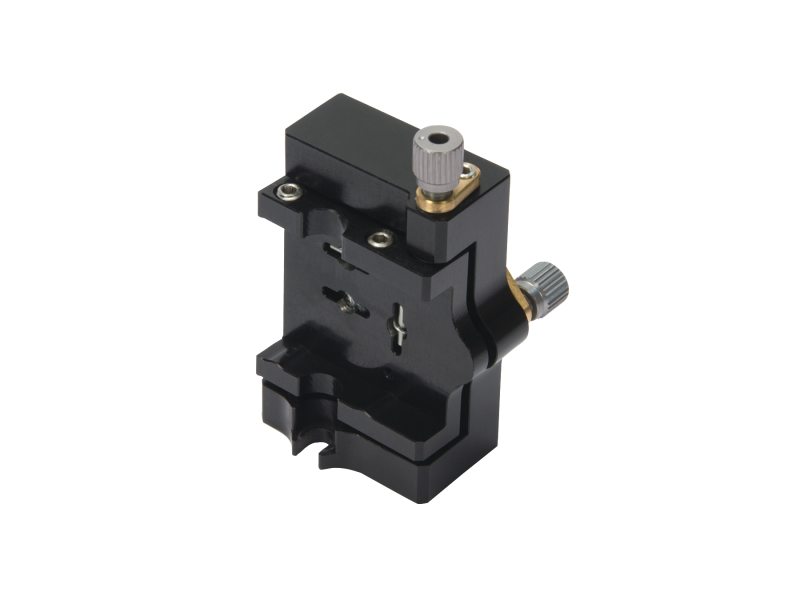

Diffraction Grating Mount, 25 mm, 3-axis

Technical Specs

  • Adjustments
    θx, θy, θz
  • Drive Type
    Knob, locking
  • Adjustment Screw Thread
    100 TPI
  • Angular Range
    ±2°
  • Tip/Tilt Sensitivity
    10 arc sec
  • Rotation Sensitivity
    5 arc sec
  • Optic Thickness
    6 mm
  • Optical Axis Height
    25.4 mm
  • Material
    Anodized Aluminum
