Prism Mount, 0.25 to 1.00 in., ±5 °, 8-32

Quad-Path Prism Mounts

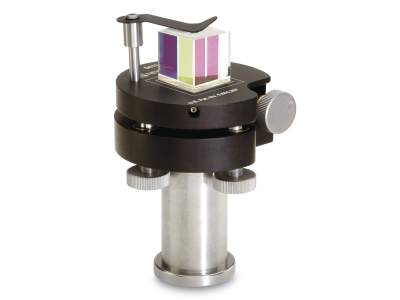

The 9411 Prism-Beamsplitter mount offers three orthogonal axes of rotation. Designed for intuitive alignment, the rotation point is located under the center of the mounting plate so that you get minimal translation during adjustments. Our novel spring clamp (simply press the post down to hold your cube) means you don't need to use messy double-stick tape or wax. 8-32 Thread.

Specifications

Technical Specs

Adjustment Type
Adjustment Screw
Angular Range
±5°
Sensitivity
9 arc sec
Load Capacity
7 N

Mounting
8-32 Thd.

Adjustment Type
Adjustment Screw
Angular Range
±5°
Sensitivity
9 arc sec
Load Capacity
7 N

Mounting
8-32 Thd.

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9411b-Drawing(114.4 kB, PDF)

Related Products

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M1-PTM1 Prism Mount, 2 Knob Actuators	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$146
