Compare Model Drawings, CAD & Specs Angular Range Sensitivity Load Capacity Mounting Availability Price
Prism Mount, 0.25 to 1.00 in., ±5 °, 8-32
$395
In Stock
±5° 9 arc sec 7 N 8-32 Thd.
In Stock
Prism Mount, 0.25 to 1.00 in., ±5 °, M4
$395
In Stock
±5° 9 arc sec 7 N M4 Thd.
In Stock
Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, 8-32
$391
In Stock
±3.5° 12 arc sec 4 N 8-32 Thd.
In Stock
Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, M4
$391
In Stock
±3.5° 12 arc sec 4 N M4 Thd.
In Stock

Features

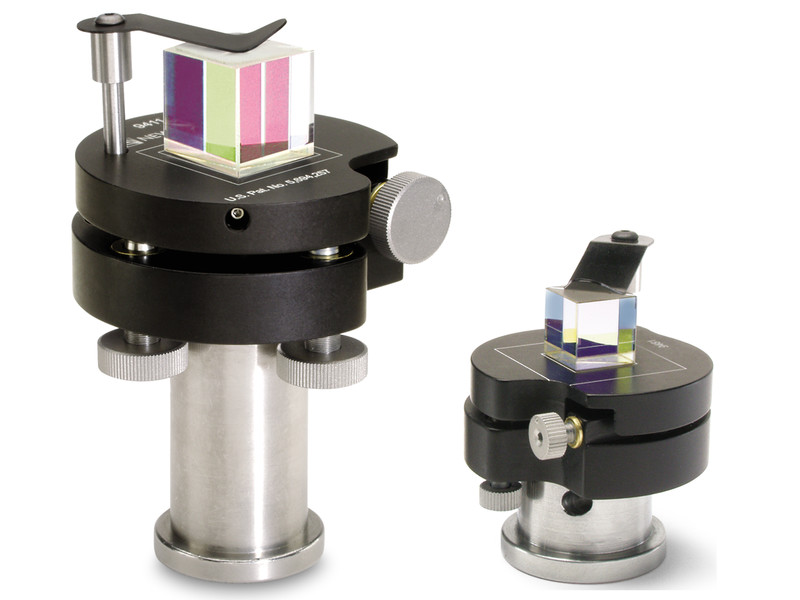

Standard and Pint-Sized Versions

We offer both a standard version and a compact pint-sized version with less adjustment range. Both can be used with 0.25 to 1.0 inch prisms.

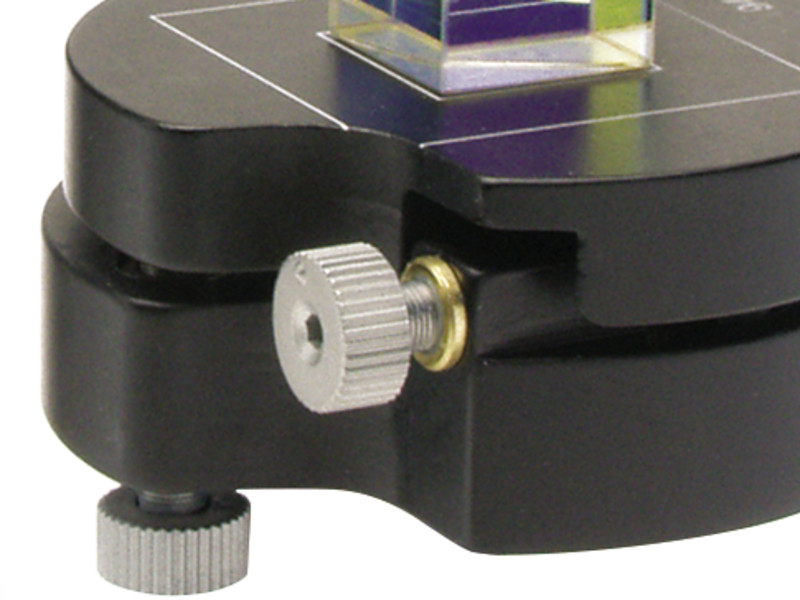

Thread-matched Adjustment Screws

The adjustment screws used on the Quad-Path prism mounts are matched screw/bushing sets to ensure alignments that are stable, even after being adjusted.

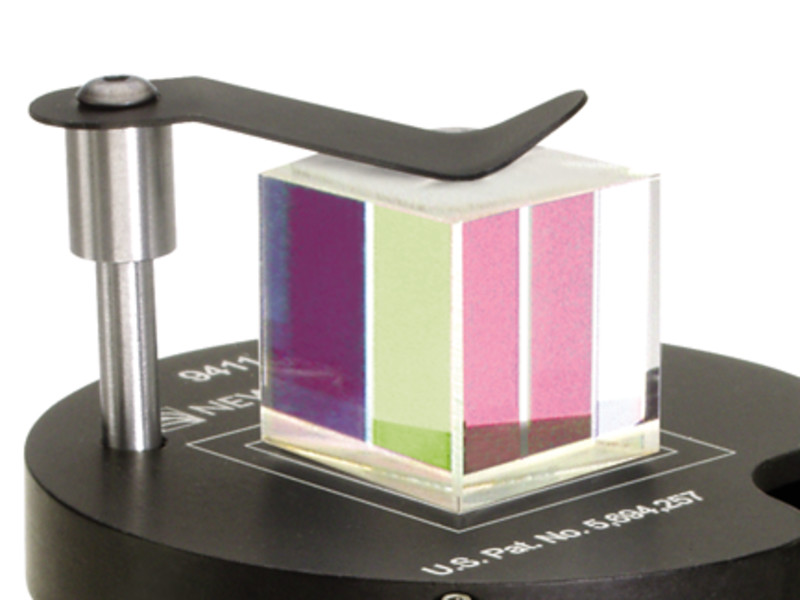

Press-on Prism Clamp

The innovative press-on optic spring clamp provides a firm hold on the prism without the need for installation tools.

Easy To Use

Watch this short video to see how easy it is to mount a prism or cube beam splitter on to this mount.
