Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, M4

Prism Mount, Pint-Sized, 0.25 to 1.00 in., ±3.5°, M4

Model: 9481-M

$488.00

In Stock

Compare

Add to List

Product Series Overview

Quad-Path Prism Mounts

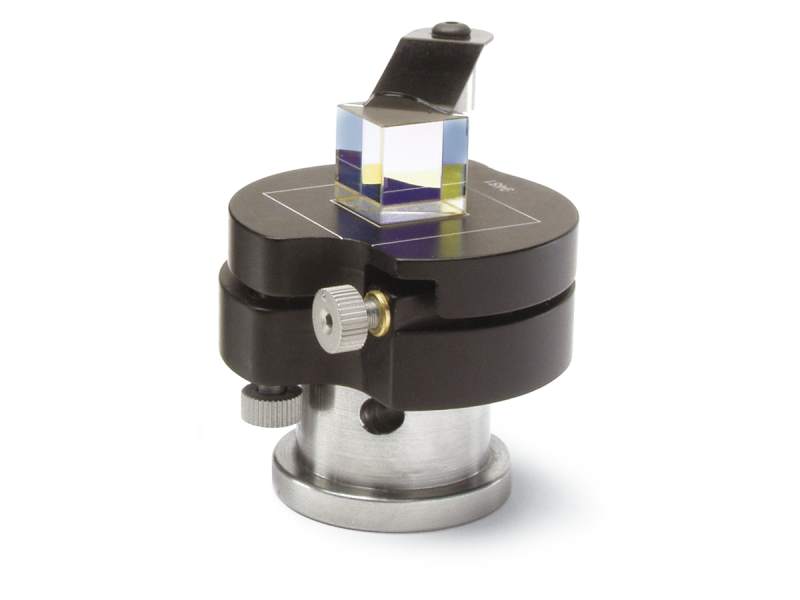

The 9481-M Pint-Size Prism Mount is for more specialized applications. The Model 9481 prism mount fits optics up to 1 in. tall and is perfect for holding prisms or beamsplitter cubes. M4 Thread.

Specifications

Technical Specs

Adjustment Type

Adjustment Screw
Angular Range

±3.5°
Sensitivity

12 arc sec

Load Capacity

4 N
Mounting

M4 Thd.

Adjustment Type

Adjustment Screw
Angular Range

±3.5°
Sensitivity

12 arc sec

Load Capacity

4 N
Mounting

M4 Thd.

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9481b-Drawing (116.4 kB, PDF)
