M1 Prism Mount, 2 Knob Actuators

M1 Prism Mount, 2 Knob Actuators

Model: M1-PT

$139

In Stock

Compare

Add to List

Product Series Overview

Platform Mirror Mounts

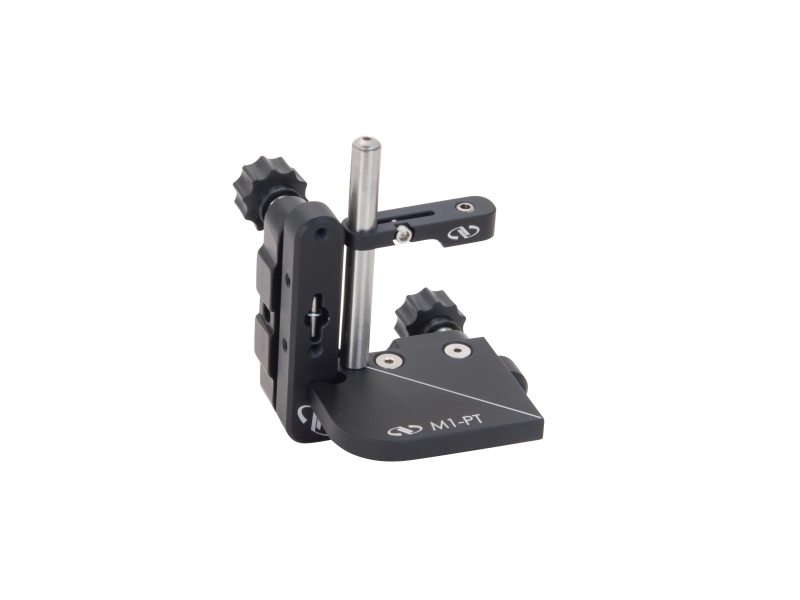

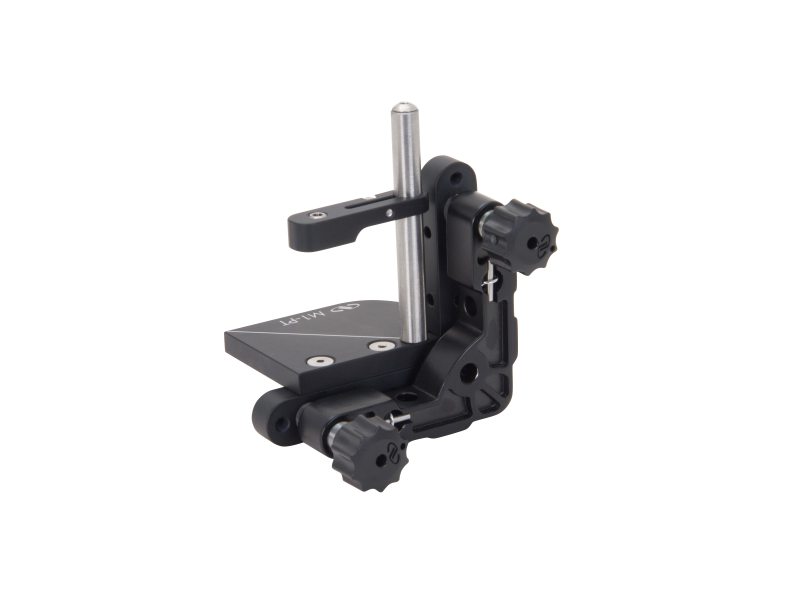

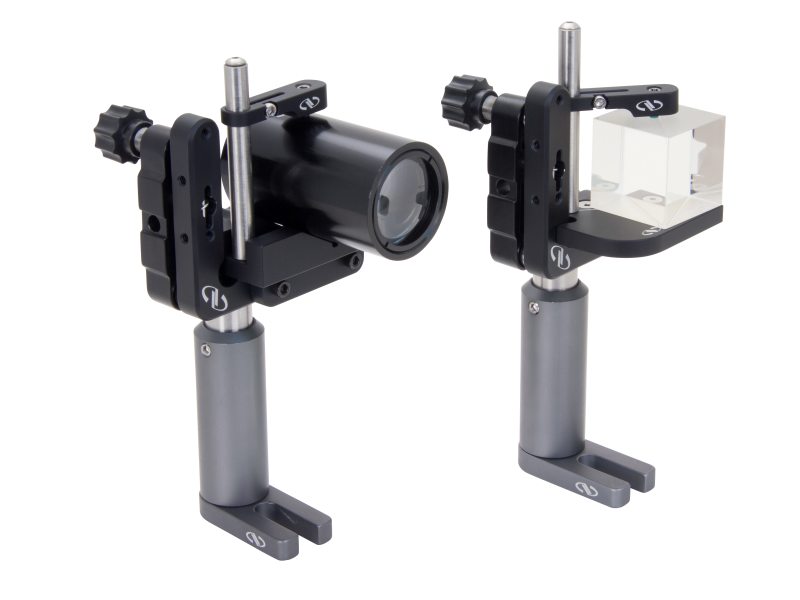

The M1-PT Prism Mount is ideal for mounting prisms and cube beam splitters. The M1-PT has a large platform for holding prisms or cube beamsplitters. The M1-PT is configurable for right- or left-handed operation. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism

Kinematic
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Material

Coated Aluminum
Drive Type

Knob, non-locking
Mounting Holes

8-32 (M4) CLR

Mechanism

Kinematic
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Material

Coated Aluminum
Drive Type

Knob, non-locking
Mounting Holes

8-32 (M4) CLR

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M1-PT-353 (166.4 kB, PDF)

Other

M1-PT_RoHS2021.pdf (678.5 kB, PDF)
