Platform Optical Mount, Miniature, 1.0 in., 2 Knob Adjustment, 8-32

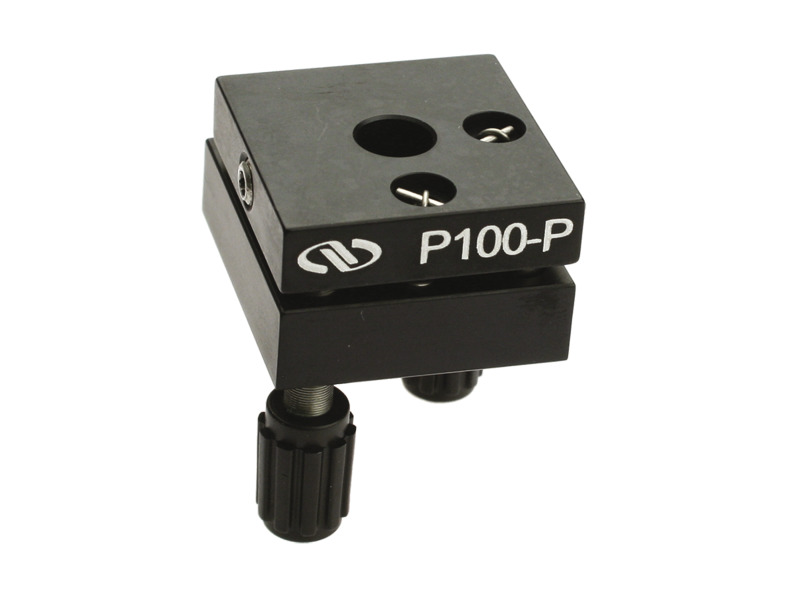

The P100-P Miniature Platform Optical Mount is ideal for general laboratory or industrial applications requiring a compact, robust, kinematic design. Platform mounts have the size advantage, over aperture mounts, of being able to hold mirrors which are as large as or larger than the actual mount itself. This 1 inch (25.4 mm) version holds mounted mirrors, prisms, or cube beamsplitters. Two precision 100-TPI adjustment screws with knob provide ±6° adjustment range. An optional hex-key can be used to discourage unwanted tampering. when used with the optional Mirror Holders UPA.5, UPA.75, UPA, provides a stable mounting platform for 0.5 to 1 inch (12.7 to 25.4 mm) diameter mirrors. The P100-P can be post mounted as a horizontal tip/tilt platform using the 8-32 threaded hole in the back plate.

Specifications

Technical Specs

Mechanism
Kinematic
Platform Size
25.4 x 25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
8.3 arc sec
Angular Range
±6°

Material
Anodized Aluminum
Drive Type
Knob, non-locking
Platform Thread
1/4-20 (M6) CLR
Mounting Holes
8-32 THD
Weight
29 g

Mechanism
Kinematic
Platform Size
25.4 x 25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
8.3 arc sec
Angular Range
±6°

Material
Anodized Aluminum
Drive Type
Knob, non-locking
Platform Thread
1/4-20 (M6) CLR
Mounting Holes
8-32 THD
Weight
29 g

Resources & Downloads

2D Product Drawings

P100-P-S(93.1 kB, PDF)

Other

P100-P RoHS Certificate(278.3 kB, PDF)
P100-P_RoHS2021.pdf(681.9 kB, PDF)
