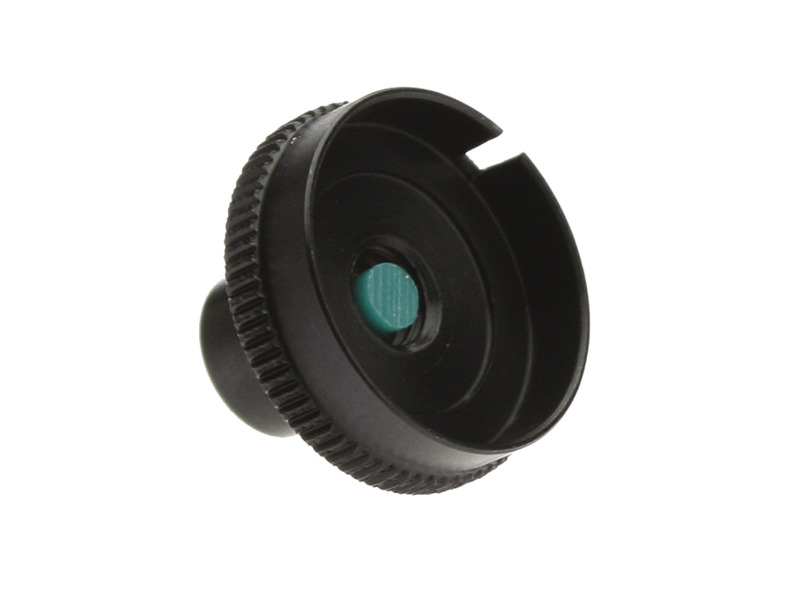

Mirror Adapter, Platform Mount, 12.7 mm Diameter

Platform Mount Cup Adapters

The UPA.5 Optic Adaptor provides a convenient and stable method to hold 0.5 inch (12.7 mm) diameter mirrors on the U50-P mount. The optic and adaptor can easily be removed and replaced with minimal realignment.

Specifications

Technical Specs

Optic Diameter
12.7 mm
Material
Anodized Aluminum
Special Features
Mounting adapter

Optic Diameter
12.7 mm
Material
Anodized Aluminum
Special Features
Mounting adapter

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

UPASERIE-S(81.1 kB, PDF)

Other

UPA.5 RoHS Certificate(277.7 kB, PDF)
UPA-5_RoHS2021.pdf(680.4 kB, PDF)
