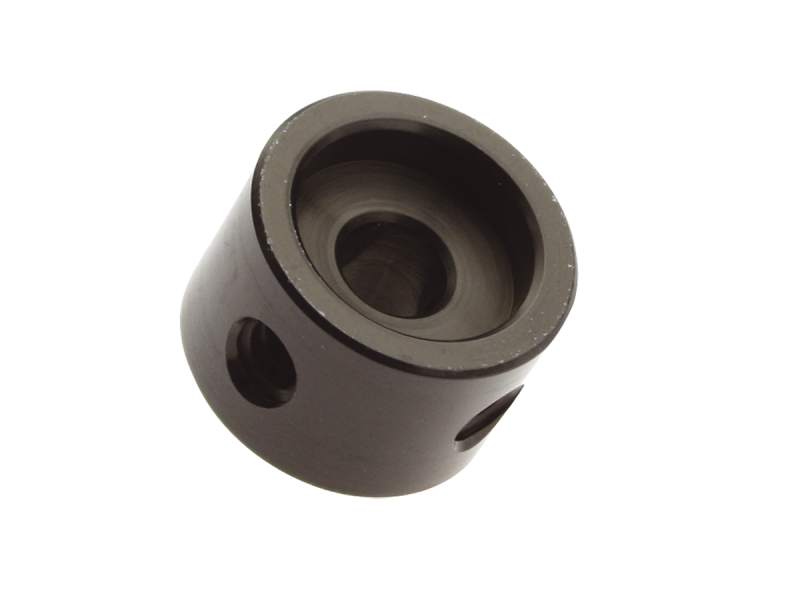

Horizontal Adapter, 0.5 inch, For U50-P

The UPA-PA.5 Horizontal Adaptor attaches to the mounting holes on an optical mount, providing a mechanism to convert the U50-P to a post-mounted horizontal platform for mounting prisms, cube beamsplitters, or other components.

Specifications

Technical Specs

Material
Anodized Aluminum
Special Features
Mounting adapter

Material
Anodized Aluminum
Special Features
Mounting adapter

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

UPA-PA.5 DWG-S(163.2 kB, PDF)

Other

UPA-PA-5_RoHS2021.pdf(678.1 kB, PDF)
