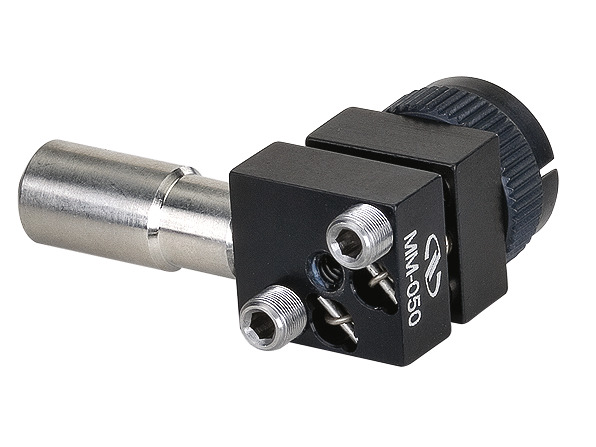

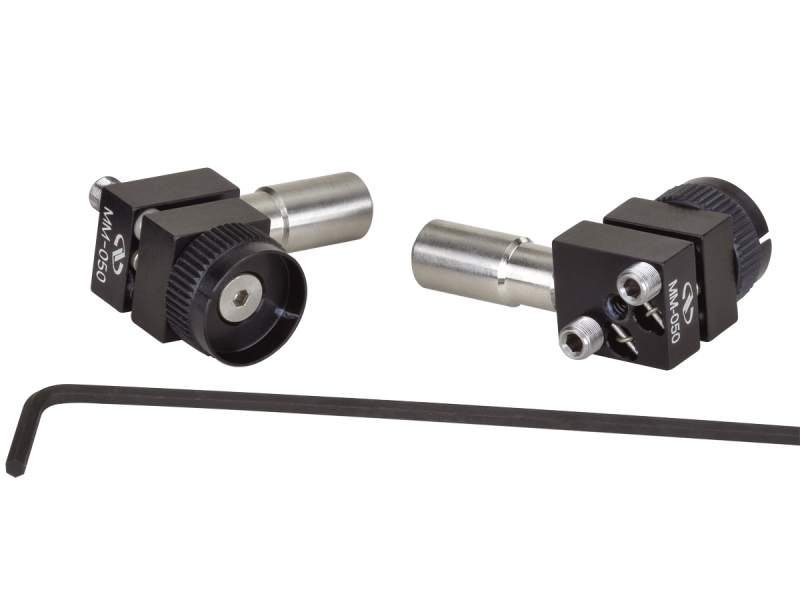

Platform Optical Mount, 0.5 in., ±11° Hex Adjustment, 4-40

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    12.7 mm
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    23.9 arc sec
  • Angular Range
    ±11°
  • Material
    Anodized Aluminum
  • Drive Type
    Allen-Key, non-locking
  • Mounting Holes
    4-40 Thd
  • Platform Thread
    4-40
  • Special Features
    Platform Mount
