Optical Post Holder, Swivel Base, 4.0 in. Height, 0.5 in. Posts
Optical Post Holder, Swivel Base, 4.0 in. Height, 0.5 in. Posts
Model: VPH-4SC
Product Series Overview

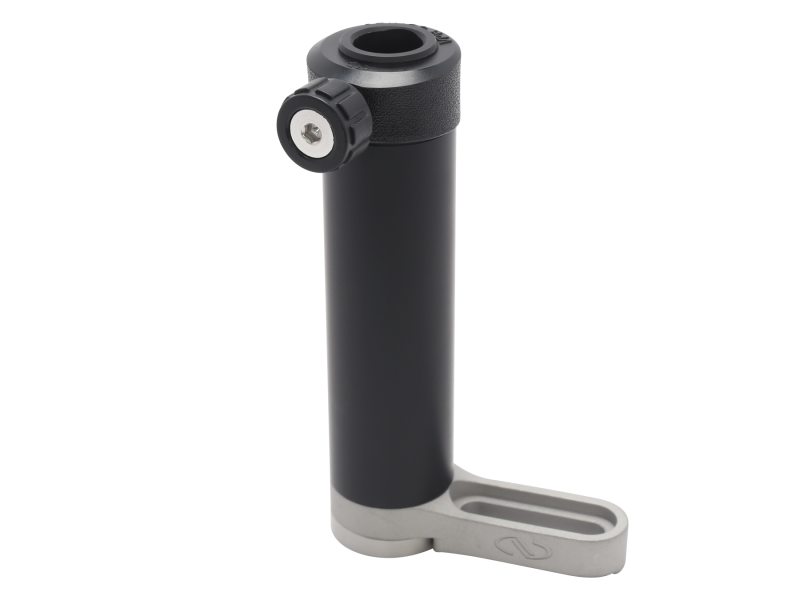

Swivel Clamp Optical Post HoldersThe VPH-4SC Swivel Clamp Optical Post Holder has a 4 inch (101.6 mm) height, base magnet for initial positioning, and a swivel clamp for aligning with optical table holes for final lock down. The swivel clamp optical post holder also incorporates a spring-loaded brake shoe design which applies a constant force to 0.5 in. (12.7 mm) diameter optical posts even when the thumbscrew is loosened. This allows the orientation of an optical mount to be easily adjusted with one hand.
Resources & Downloads
Other
VPH-4SC RoHS2-2021 Certificate(677 kB, PDF)
2D Product Drawings
VPH-SC Dimensions(203.2 kB, PDF)
