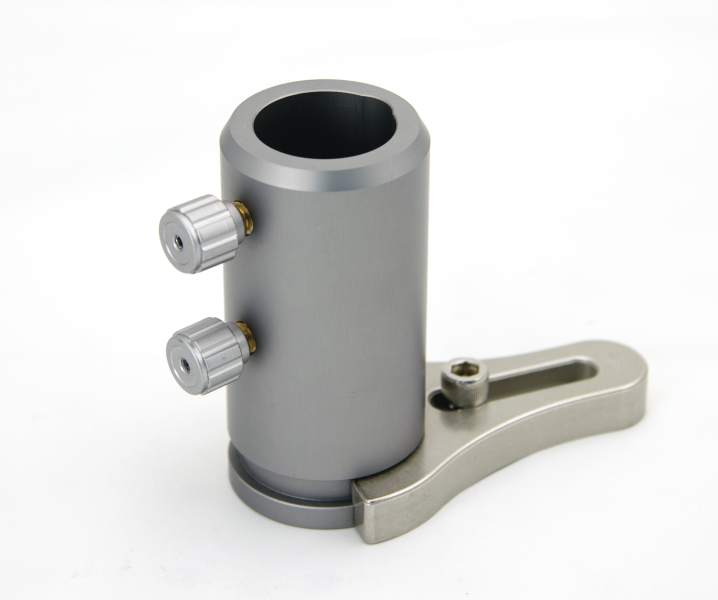

Optical Post Holder, 3.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
Optical Post Holder, 3.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
Model: Q-TMS-3
Product Series Overview

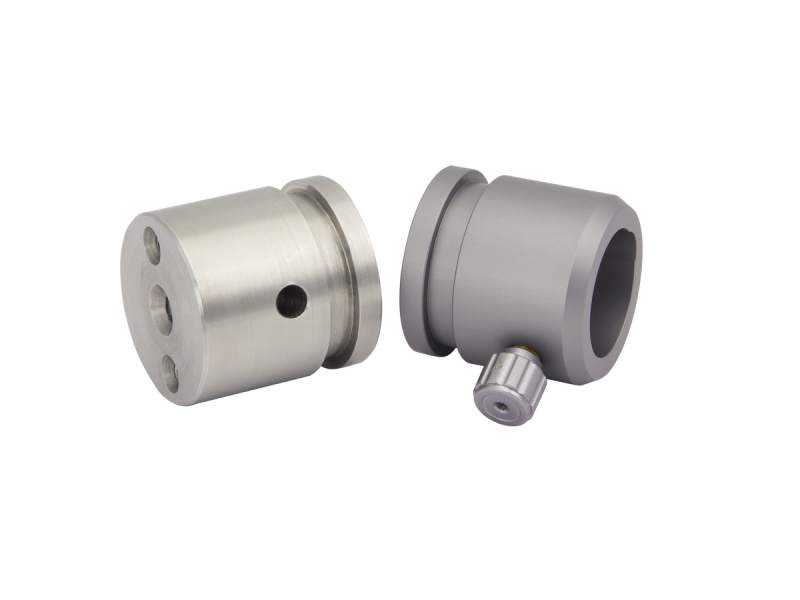

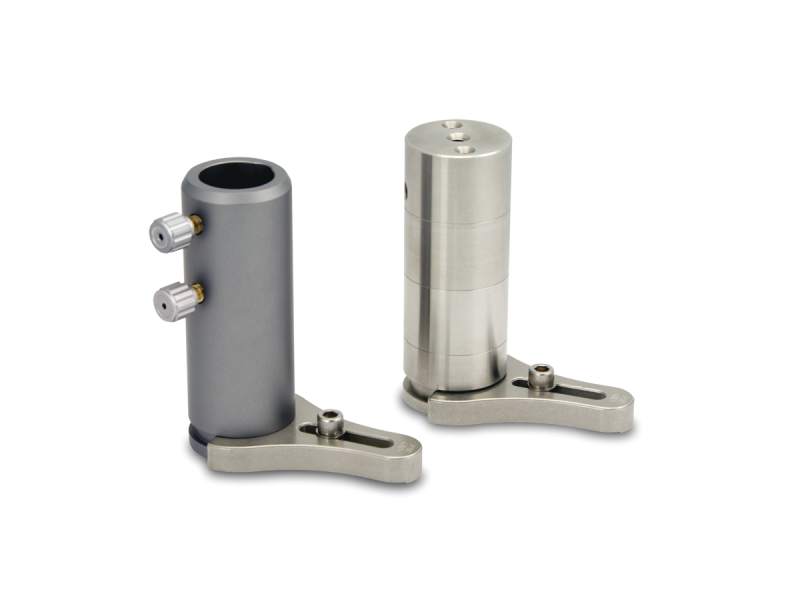

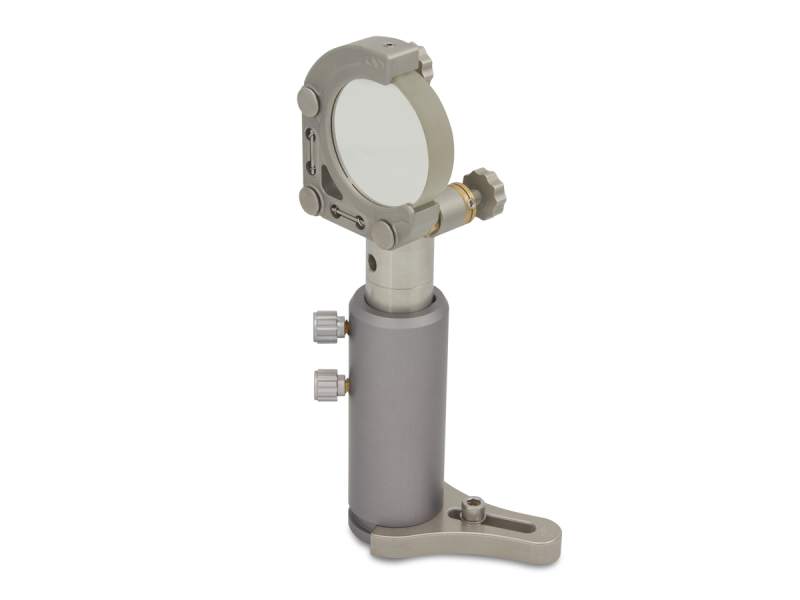

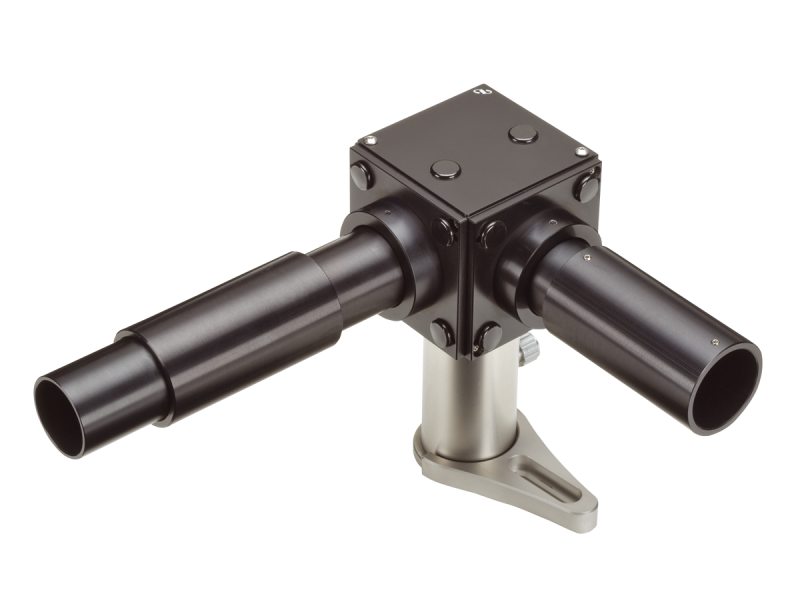

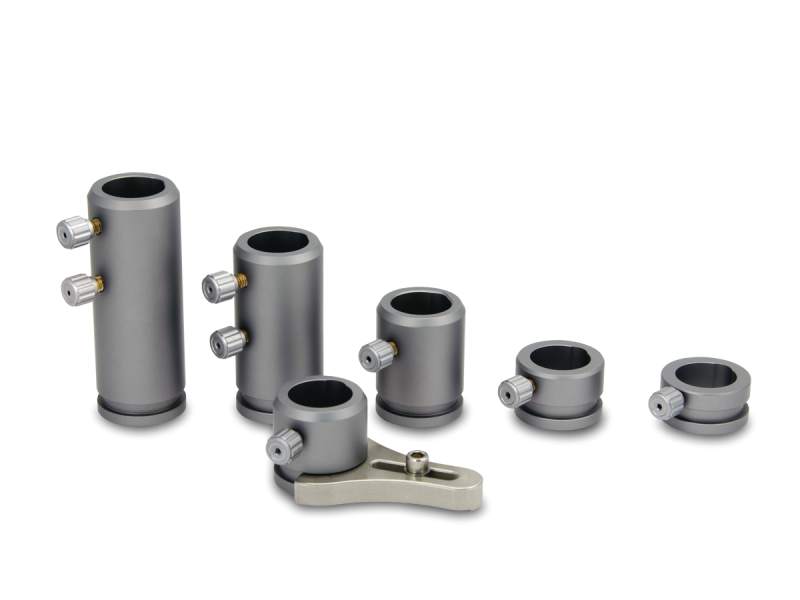

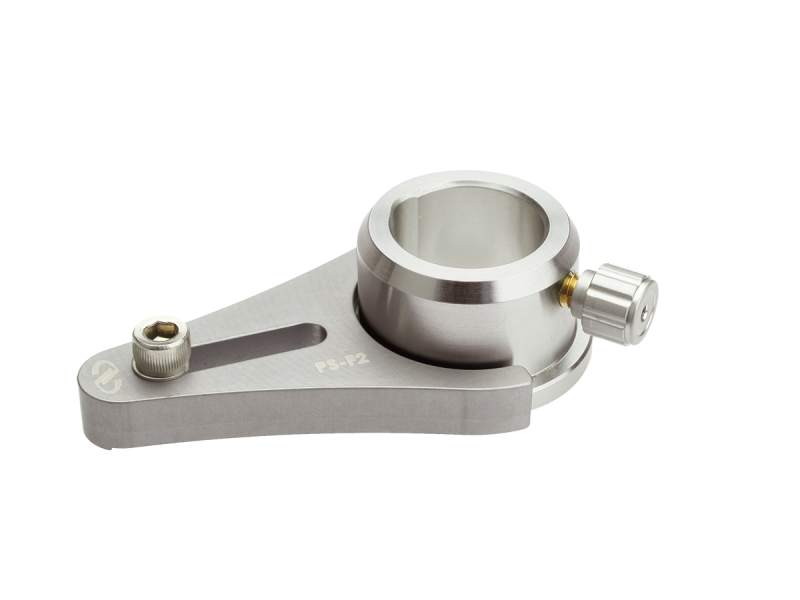

1.0 in. Pedestal Post HoldersThe Q-TMS-3 Optical Pedestal Post Holder with Clamping Fork provides a means to hold and adjust the PS series Pedestal and Extension Posts. This 3.0 in. (76.2 mm) height holder for 1.0 in. (25.4 mm) diameter pedestal posts includes a clamping fork to allow mounting anywhere on an optical table. TThese holders are ideal for the Aegis Qube beam routing system.
Resources & Downloads
2D Product Drawings
New Q-TMS(471.6 kB, PDF)
Other
Q-TMS-3 RoHS Certificate(0, PDF)
