Compare Model Drawings, CAD & Specs Availability Price
Q-TMS-0.75
Optical Post Holder, 0.75 in. Height, 1.0 in. Posts, Inc. Clamping Fork
$53
In Stock
 Q-TMS-0.75 Optical Post Holder, 0.75 in. Height, 1.0 in. Posts, Inc. Clamping Fork
In Stock
 $53
Q-TMS-1
Optical Post Holder, 1.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
$54
In Stock
 Q-TMS-1 Optical Post Holder, 1.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
In Stock
 $54
Q-TMS-1.5
Optical Post Holder, 1.5 in. Height, 1.0 in. Posts, Inc. Clamping Fork
$56
In Stock
 Q-TMS-1.5 Optical Post Holder, 1.5 in. Height, 1.0 in. Posts, Inc. Clamping Fork
In Stock
 $56
Q-TMS-2
Optical Post Holder, 2.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
$58
In Stock
 Q-TMS-2 Optical Post Holder, 2.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
In Stock
 $58
Q-TMS-3
Optical Post Holder, 3.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
$64
In Stock
 Q-TMS-3 Optical Post Holder, 3.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
In Stock
 $64
Q-TMS-4
Optical Post Holder, 4.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
$78
In Stock
 Q-TMS-4 Optical Post Holder, 4.0 in. Height, 1.0 in. Posts, Inc. Clamping Fork
In Stock
 $78

Specifications

  • Type
    Pedestal Post Holder
  • Material
    Aluminum
  • Inside Diameter
    25.4 mm

Features

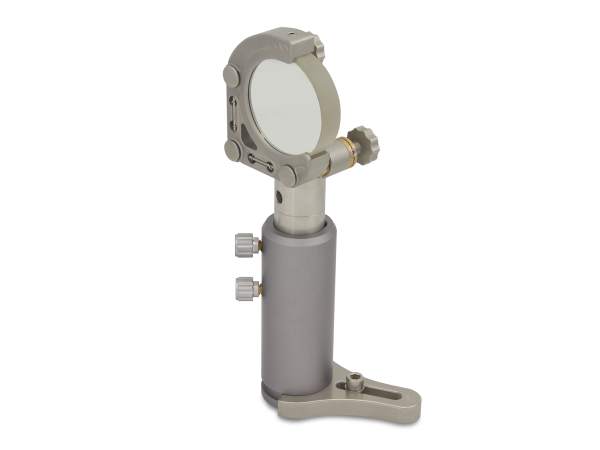

Vertical Positioning of 1.0 in. Posts

The Q-TMS Series Holders provide continuous vertical control for components mounted with 1.0 in. (25.4 mm) PS series  and PX series Optical Posts. Height is secured easily by one hand with spring-loaded thumb screws. Q-TMS post holders include an SR-F slotted base clamping fork to provide versatile positioning and mounting anywhere on an optical table with a 1/4-20 or M6 screw.

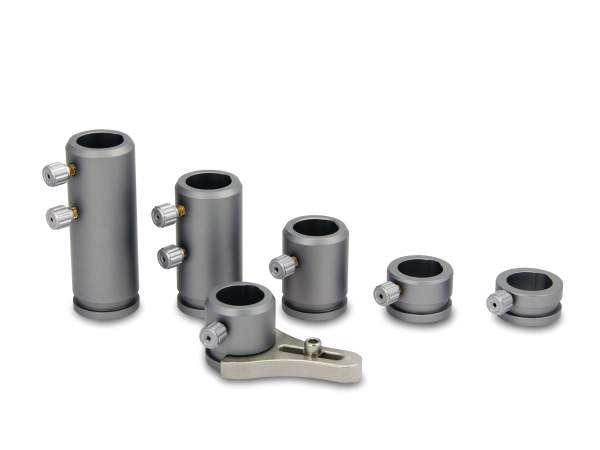

Six Heights to Choose From

These post holders are available in 0.75 in. (19.1 mm), 0.5 in. (12.7 mm), 1.0 in. (25.4 mm), 1.5 in. (38.1 mm), 2.0 in. (50.8 mm), 3.0 in. (76.2 mm), and 4.0 in. (101.6 mm) heights.

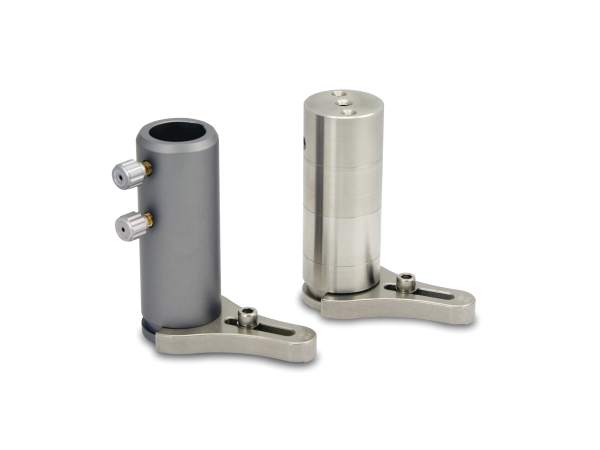

Clamping Fork Compatible with SR Series Pedestal Rods

The clamping fork SR-F used on the Q-TMS Series Holders can also be used for SR series 1.5 in. diameter pedestal rods.

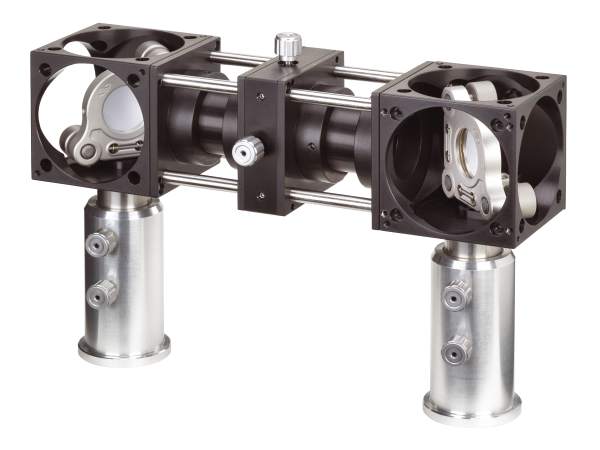

Aegis Qube Applications

These pedestal holders are ideal for the vertical adjustment of the Aegis Qube beam routing system.
