Optical Power Detector, Silicon, 400-1100 nm, OD3 Attenuator

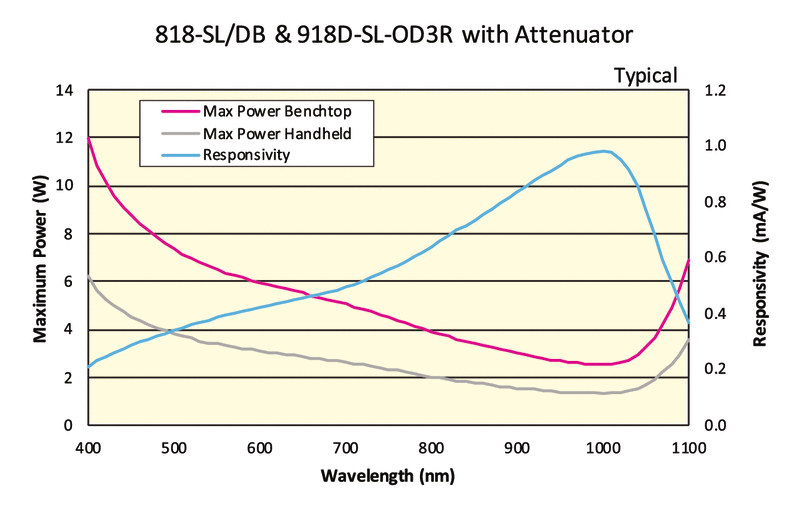

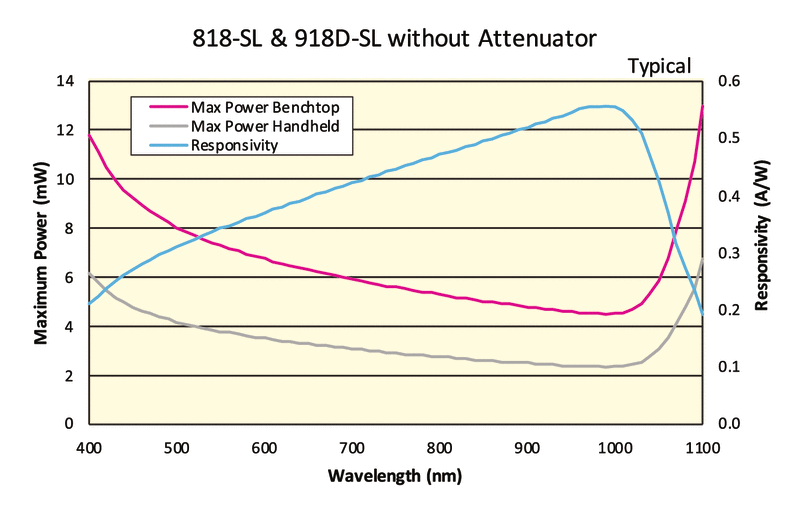

The 918D-SL-OD3R Silicon Photodetector is designed for low optical power measurements and now features a new design with a diffuser for ISO 17025 compliance. It includes integrated calibration-data storage, built-in OD3 attenuation filter with automatic On/Off detection, temperature sensing electronics for temperature drift compensation and is compatible with DB15 based Newport Power Meters. The Silicon (Si) photodetector is NIST-traceable calibrated for 400-1100 nm optical power measurements. It includes a certificate of calibration with calibration curves and data for both attenuator on and off conditions.
Resources & Downloads
2D Product Drawings
918D CAD Drawing(96 kB, PDF)
Technical Notes
Average and Peak Power Calculation(31.9 kB, PDF) Semiconductor Detector and Low Power Light Source(1.4 MB, PDF) A Shortcut for Calculating Power Density(35.2 kB, PDF) Understanding Total Measurement Uncertainty
Manuals
918D Photodiode Sensors User Manual(4.3 MB, PDF)
Literature
Maximum Measureable Power for Photodiode Detector(438.4 kB, PDF) 918D Photodiode Sensors Datasheet(1.8 MB, PDF)
Other
918D Series EU27 CE Declaration of Conformity(189.7 kB, PDF) 918D-SL-OD3R V2 RoHS Certificate(343.3 kB, PDF)
