Optical Power Detector, Germanium, 780-1800 nm, OD1 Attenuator
The 918D-IR-OD1R Germanium Photodetector is designed for low optical power measurements. It features include integrated calibration-data storage, built-in OD1 attenuation filter with automatic On/Off detection, temperature sensing electronics for temperature drift compensation and is compatible with DB15 based Newport Power Meters. The Germanium (Ge) photodetector is NIST-traceable calibrated for 780-1800 nm optical power measurements. It includes a certificate of calibration with calibration curves and data for both attenuator on and off conditions.
Specifications
- Detector TypePost Mounted
- Detector InputFree Space
- Detector MaterialGermanium
- Spectral Range780 - 1800 nm
- Sensor SizeØ3 mm
- AttenuatorOD1, Built-in
- Maximum Measurable Power30 mW
- Minimum Measurable Power5 nW

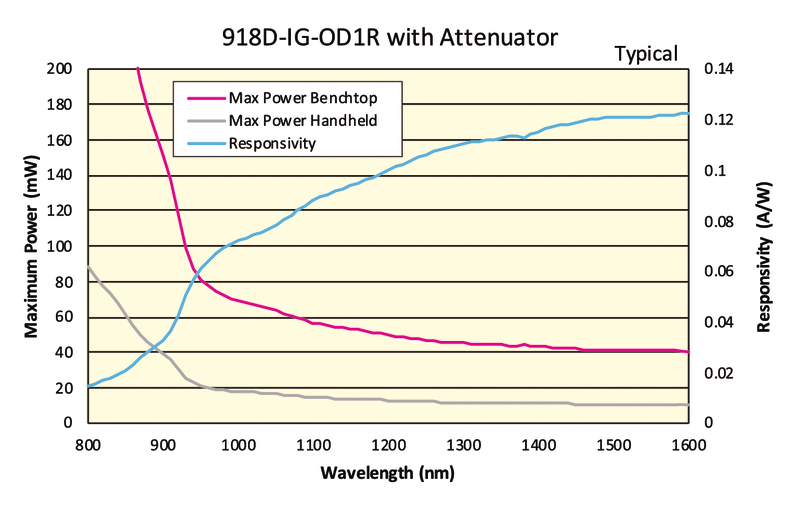

- Maximum Measurable Power Benchtop Meter30 mW
- Maximum Measurable Power Handheld Meter2 W

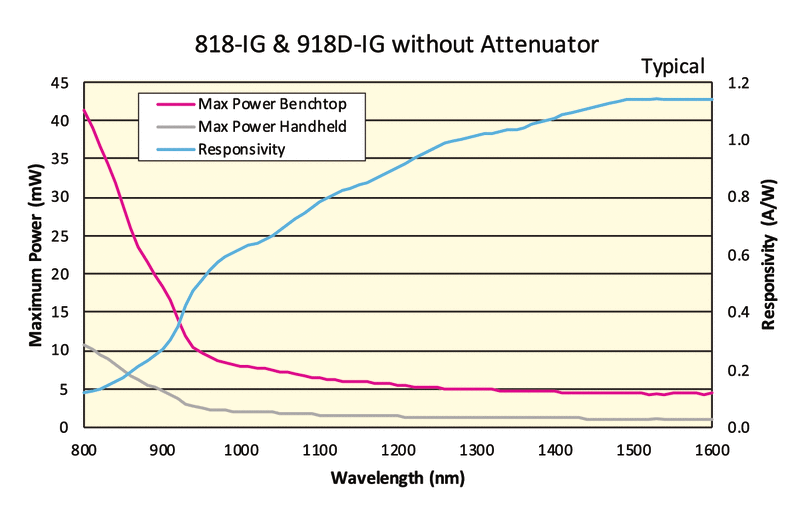

- Maximum Measurable Power Without Attenuator10 mW
- Maximum Power Density10 W/cm²
- Maximum Power Density without Attenuator3 W/cm²
- Maximum Pulse Energy Without Attenuator5 nJ
- Maximum Pulse Energy50 nJ
- Calibration ModuleDB15 Connector Pigtail
- Calibration Uncertainty2.4% (780-1430 nm)
2.6% (1430-1600 nm) - Linearity±1 %
- Uniformity±2 %
- Rise Time≤2 µs
- Clear ApertureØ10.3 mm
- Connector TypeDB15
- Cable Length2 m
- Operating Temperature Range5 to 50°C
- Operating Humidity<70% RH
- RoHSCompliant
