Calibrated Reference Cell, Meter, Quartz Window
Model: 91150V
Product Series Overview

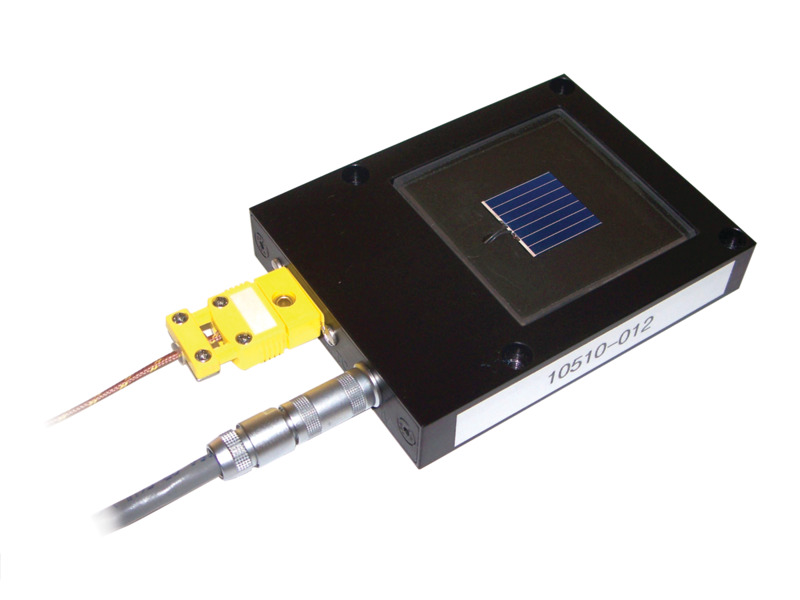

Calibrated Reference Solar Cell and MeterThe 91150V Reference Cell and Meter is an integral part of solar simulator calibration and solar cell I-V characterization. It consists of a readout device and a 2 x 2 cm calibrated solar cell made of monocrystalline silicon and a fused silica window. The cell is also equipped with a thermocouple assembled in accordance with IEC 60904-2. The certification is accredited by NIST to the ISO-17025 standard and is traceable both to the National Renewable Energy Laboratory (NREL), and to the International System of Units (SI). It reads solar simulator irradiance in sun units; one sun is equal to 1000 W/m2 at 25 °C and Airmass 1.5 Global Reference. This tool's primary use is the testing of photovoltaic cells under standard conditions. The Readout Meter includes two BNC connectors for analog outputs for the sun irradiance and the temperature.
Re-certification service of this system is proudly offered by our Newport Photovoltaic Calibration and Test Lab. Please contact a Newport Sales Engineer for more details.

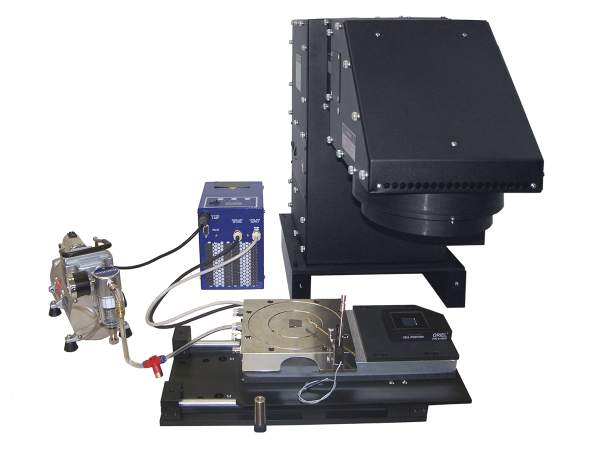

Oriel® PVIV System Setup
Demonstration on the initial set up and test measurement of an Oriel PVIV station. This video shows an I-V measurement of the Calibrated Silicon Reference Cell using the Oriel
Critical Tool for Testing PV Cells
The primary application of this system is to set the irradiance level of a solar simulator near to 1.000 Sun so that photovoltaic cells can be tested under standard reporting conditions.
Reference Cell Window Options

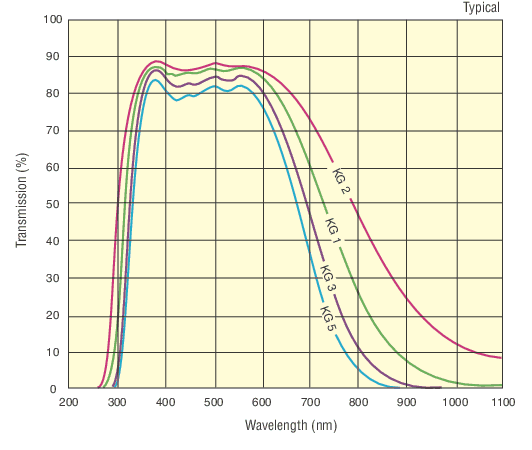

The reference cell consists of a 2x2 cm monocrystalline silicon photovoltaic cell with a choice of two windows. The KG5 heat absorbing window offers high transmission for visible wavelengths and absorb IR wavelengths. For a wider wavelength transmission range, a fused silica (quartz) window option is available. The KG1, KG2, and KG3 windows and respective traces are no longer available for standard ordering, and are referenced for legacy purposes only. For customized solutions featuring these traces, please refer to our FSQ products in our heat absorbing glass shortpass filters product family.
Resources & Downloads
Manuals
Oriel 91150V-CBL Reference Solar Cell Cable User Manual(233.1 kB, PDF) Oriel 91150V Reference Solar Cell User Manual(582.5 kB, PDF)
Literature
Oriel 91150V Reference Solar Cell Datasheet(1.5 MB, PDF) Oriel Photovoltaic Calibration Lab Datasheet(120.3 kB, PDF)
Application Notes
Comparisons of IV Curves between Xenon Lamp-Based and LED-Based Solar Simulators(482.7 kB, PDF) Reliable Solar Cell Measurements(511.3 kB, PDF) The Spectral Mismatch Factor(865.4 kB, PDF)
Other
EU ROHS3 - 91150 Calibrated Reference Cell Systems(240.3 kB, PDF)
Related Products
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PVIV-1AI-V Test Station, 1 Amp Max, Software and Meter Included | |||||
| PVIV-10AI-V Test Station, 10 Amp Max, Software and Meter Included | |||||
 | PVIV-TC-VACCell Holder, 2x2 to 6x6 in., Temperature Control, Vacuum Positioning |
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
| PVIV-1AI-V Test Station, 1 Amp Max, Software and Meter Included | |||||

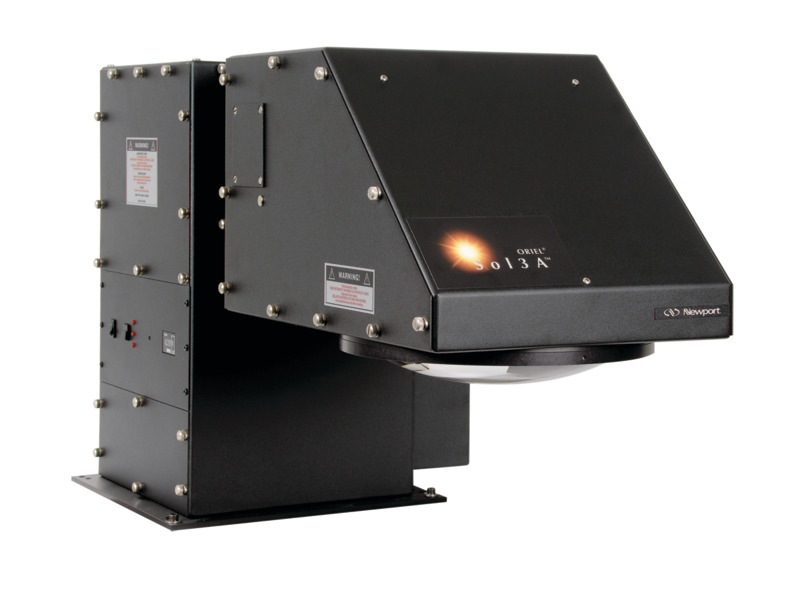

 | 94043ASolar Simulator, Sol3A Class AAA, IEC/JIS/ASTM, 450 W Xenon, 4 x 4 in. | |||||
 | PVIV-PROBE-KITPVIV Probe Kit, PVIV and QE Systems | |||||

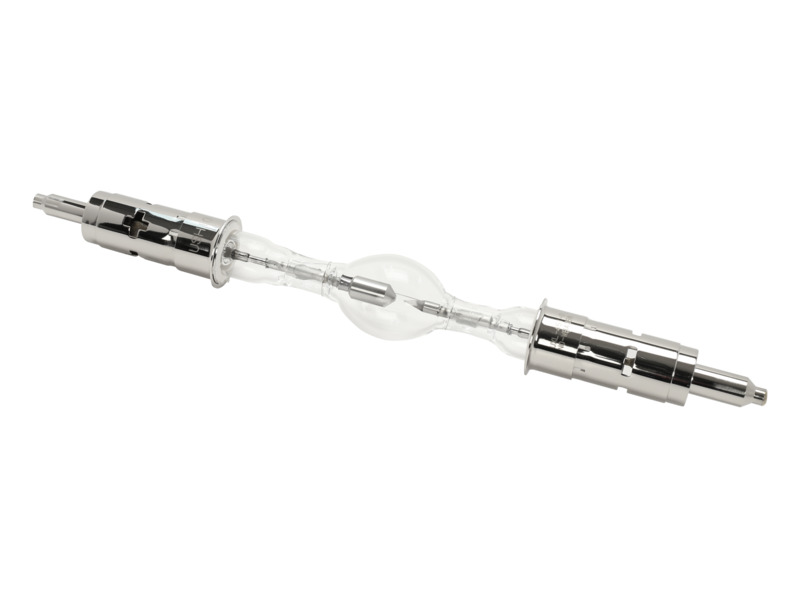

 | 6280NSXenon Short Arc Lamp, 450 W, Ozone Free | |||||

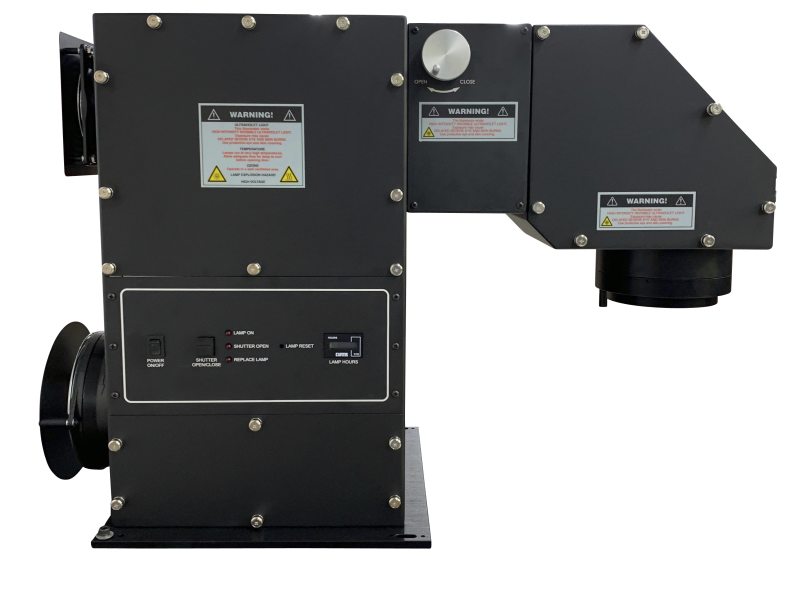

 | 94023ASolar Simulator, Class AAA, IEC/JIS/ASTM, 450 W Xenon, 2 x 2 in. | |||||
