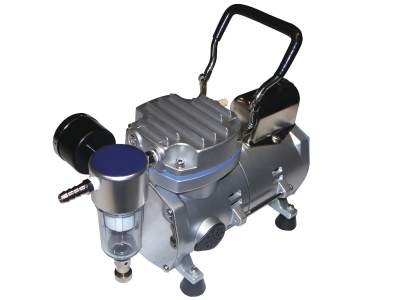

PVIV Vacuum Pump, Oil Free, Cool Air Output, 220 VAC

Model: PVIV-VAC-PUMP-220

$1,425

In Stock

Compare

Add to List

Product Series Overview

Oriel I-V Test Station

The PVIV-VAC-PUMP-220 is a low power consumption, low maintenance vaccumm pump compatible with Oriel I-V Test Stations and Quantum Efficiency Measurement Systems. It offers rugged corrosion resistant construction while still being conpact and lightweight. It is mandatory to integrate this pump with an Oriel mounting chuck, such as the PVIV-TC-VAC, PVIV-VAC-CHUCK, or the vacuum-integrated sample stage on the QuantX systems. 220 VAC version.

Specifications

Technical Specs

dB Rating

50.0
Discharge

Oil free
Power Requirements

220-240V, 50 Hz, 0.3 A
Free Air

17.0 lpm (at 0 mm Hg)
Horsepower

1/8 HP

Maximum Vacuum

650.0 mm Hg
Connection

Brass Hose Barb for use with 1/8 inch [3.2 mm] ID tubing
Dimensions

11 inch x 6.5 inch x 6 inch [280 mm x 165 mm x 152 mm]
Weight

7.7 lbs. [3.5 kg]

dB Rating

50.0
Discharge

Oil free
Power Requirements

220-240V, 50 Hz, 0.3 A
Free Air

17.0 lpm (at 0 mm Hg)
Horsepower

1/8 HP

Maximum Vacuum

650.0 mm Hg
Connection

Brass Hose Barb for use with 1/8 inch [3.2 mm] ID tubing
Dimensions

11 inch x 6.5 inch x 6 inch [280 mm x 165 mm x 152 mm]
Weight

7.7 lbs. [3.5 kg]
