Optical Power Detector, InGaAs, 800-1650 nm, OD1 Attenuator

918d calibrated photo diode power sensor

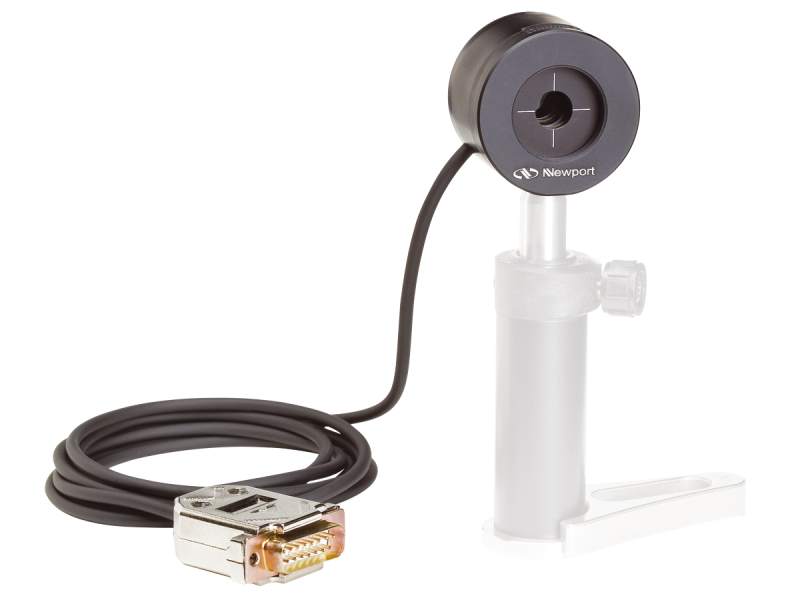

The 918D-IG-OD1R InGaAs Photodetector is designed for low optical power measurements. It features include integrated calibration-data storage, built-in OD1 attenuation filter with automatic On/Off detection, temperature sensing electronics for temperature drift compensation and is compatible with DB15 based Newport Power Meters. The Indium Gallium Arsenide (InGaAs) photodetector is NIST-traceable calibrated for 800-1650 nm optical power measurements. It includes a certificate of calibration with calibration curves and data for both attenuator on and off conditions.

Excellent Photodiode Linearity

These photodiodes show excellent linearity over a large dynamic range. This is ideal for use in applications that require high accuracy measurements down to the pW level, especially when combined with a high sensitivity power meter that can accommodate the large dynamic range of the optical signal.

Responsivity Variation over Temperature

A natural characteristic of a photodiode is for the its optical response to change as the temperature changes near the bandgap of semiconductor materials. Newport’s 918D series sensors feature a thermocouple near the photodiode, which allows certain Newport meters to read the temperature and automatically adjust the responsivity, ensuring the most accurate measurements.

Factors that Affect Maximum Measurable Power

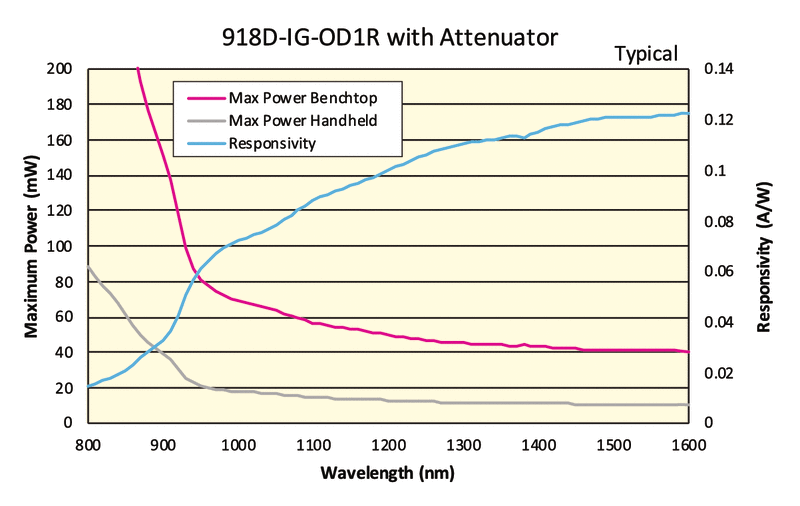

The maximum measurable power of photodiode sensors is dependent on several factors such as the wavelength of incoming light, photodiode current output saturation, temperature, use of an attenuator and a power meter's maximum current input value. Newport provides maximum power specifications based on the power meter models, with and without an attenuator, and wavelength-dependent maximum power level. With these factors affecting measurable power in mind, choosing the proper detector for your application is critical.

Attenuator On/Off Sensor

The attenuator on/off sensor is built into the detector head. When a 918D series detector is connected to power meter models 1938-R, 2938-R, 1936-R, 2936-R, 1919-R, 843-R, 843-R-USB, 844-PE-USB, 845-PE-RS, the meter automatically switches the responsivity value. The user does not need to update the power meter setup. The detector is calibrated with the integrated attenuator and without it, and the data is saved in the EEPROM.

Specifications

Technical Specs

Detector Type
Post Mounted
Detector Input
Free Space
Detector Material
Indium Gallium Arsenide
Spectral Range
800 - 1650 nm
Sensor Size
Ø3 mm
Attenuator
OD1, Built-in
Maximum Measurable Power
3 W
Minimum Measurable Power
20 pW
Maximum Measurable Power Benchtop Meter
3 W
Maximum Measurable Power Handheld Meter
2 mW
Maximum Measurable Power Without Attenuator
4 mW
Maximum Power Density
0.3 W/cm²
Maximum Power Density without Attenuator
0.03 W/cm²
Maximum Pulse Energy Without Attenuator
5 nJ

Maximum Pulse Energy
50 nJ
Calibration Module
DB15 Connector Pigtail
Calibration Uncertainty
2.4% (900-1430 nm)
2.6% (1430-1600 nm)
Linearity
±1 %
Uniformity
±2 %
Rise Time
≤2 µs
Clear Aperture
Ø10.3 mm
Connector Type
DB15
Cable Length
2 m
Operating Temperature Range
5 to 50°C
Operating Humidity
<70% RH
RoHS
Compliant

Detector Type
Post Mounted
Detector Input
Free Space
Detector Material
Indium Gallium Arsenide
Spectral Range
800 - 1650 nm
Sensor Size
Ø3 mm
Attenuator
OD1, Built-in
Maximum Measurable Power
3 W
Minimum Measurable Power
20 pW
Maximum Measurable Power Benchtop Meter
3 W
Maximum Measurable Power Handheld Meter
2 mW
Maximum Measurable Power Without Attenuator
4 mW
Maximum Power Density
0.3 W/cm²
Maximum Power Density without Attenuator
0.03 W/cm²
Maximum Pulse Energy Without Attenuator
5 nJ

Maximum Pulse Energy
50 nJ
Calibration Module
DB15 Connector Pigtail
Calibration Uncertainty
2.4% (900-1430 nm)
2.6% (1430-1600 nm)
Linearity
±1 %
Uniformity
±2 %
Rise Time
≤2 µs
Clear Aperture
Ø10.3 mm
Connector Type
DB15
Cable Length
2 m
Operating Temperature Range
5 to 50°C
Operating Humidity
<70% RH
RoHS
Compliant
