TEC Cables for ILX and Newport Laser Diode Instruments

These cables are used to connect ILX Lightwave^® and Newport laser diode instruments to laser diode mounts, specifically for TEC temperature control current. These cables are EMS shielded for maximum protection of the sensitive devices from environment, and include the proper connectors for use with ILX and Newport products.

ILX Lightwave Instruments and Newport Cables
Laser Diode TEC Cables
Terminated, Unterminated, High Current Cables

See All Features

Show Filters:

Showing 10 of 13 total products

Compatibility:

Description	Compatibility	Type	Maximum Current	Connector Type	Length	Quantity	Avail.	Price
300-02Control Cable, Temperature Controller, 300B Series, DB15 Male to Bare Wire	UNIVERSAL	TEC Controller Unterminated Cable	6A	DB15 Male to Bare Wire	6ft (1.8m)	1		$70
300-04Control Cable, Temperature Controller, 300B Series, DB15 Male to DB15 Female	UNIVERSAL	TEC Controller to Mount Cable	5A	DB15 Male to DB15 Female	6ft (1.8m)	1		$100

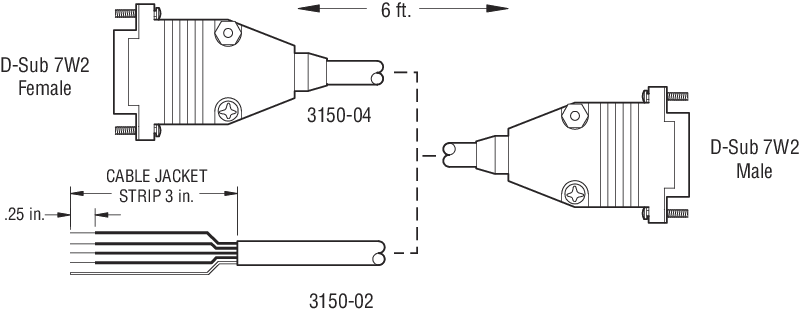

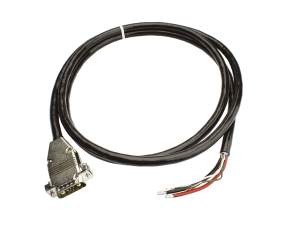

3150-02Control Cable, Temperature Controller, 3150/3700, D-Sub 7W2 Male to Bare Wire	UNIVERSAL	TEC Controller Unterminated Cable	15A	7W2 Male to Bare Wire	6ft (1.8m)	1		$145
3150-04Control Cable, Temperature Controller, 3150/3700, D-Sub 7W2 Male to Female	UNIVERSAL	TEC Controller to Mount Cable	15A	7W2 Male to 7W2 Female	6ft (1.8m)	1		$150

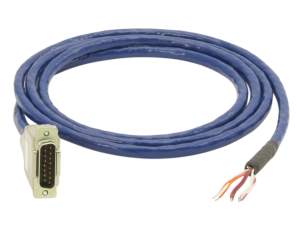

CC501HCable, TEC Controller to Bare Wire, 6 Amp, DB15 Male	UNIVERSAL	TEC Controller Unterminated Cable	6A	DB15 Male to Bare Wire	6ft (1.8m)	1		$145

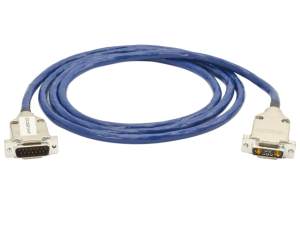

CC501HTControl Cable, TEC Controller to Mount, 6 Amp, DB15 Male to 7W2 Female	UNIVERSAL	TEC Controller to Mount Cable	6A	DB15 Male to 7W2 Female	6ft (1.8m)	1		$220

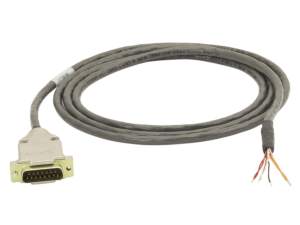

CC501SCable, TEC Controller to Bare Wire, 5 Amp, DB15 Male	UNIVERSAL	TEC Controller Unterminated Cable	5A	DB15 to Bare Wire	6ft (1.8m)	1		$112

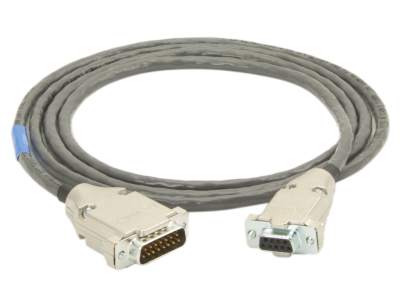

CC505SControl Cable, TEC Controller to Mount, 5 Amp, DB15 Male to DB9 Female	UNIVERSAL	TEC Controller to Mount Cable	5A	DB15 Male to DB9 Female	6ft (1.8m)	1	Contact Us	$110
CC516MControl Cable, TEC Controller to Mount, 5 Amp, DB15 Male to DB9 Female, 8-Pack	UNIVERSAL	TEC Controller to Mount Cable Bundle	5A	DB15 Male to DB9 Female	4.5ft (1.3m)	8		$635
CC550SControl Cable, TEC Controller to Mount, 5 Amp, DB15 Male to DB9 Female, Extra Long	UNIVERSAL	TEC Controller to Mount Cable	5A	DB15 Male to DB9 Female	16.5ft (5m)	1		$155
