Diffraction Gratings for Oriel^® CS130 Monochromators

$Diffraction Gratings for Oriel® CS130 Monochromators$

Diffraction Gratings for Oriel^® CS130 Monochromators

The following gratings are listed for reference only, as Newport has officially discontinued factory service support for the CS130 series. Contact your Newport sales representative for more information.

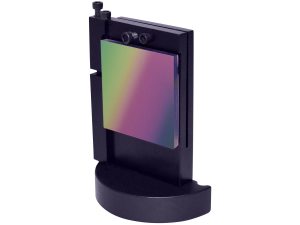

High quality diffraction gratings are available for use with the Oriel^® CS130 family of monochromators. The CS130 is designed to hold up to two gratings simultaneously. This selection covers a broad wavelength range and gratings can be replaced, making the CS130 a flexible instrument that meets the needs of many different applications. Gratings are installed by Newport. Contact us for more information.

High quality
Broad wavelength coverage
Efficient performance
Ruled and holographic gratings
Special orders welcome

See All Features

Show Filters:

Showing 10 of 16 total products

Compatibility:

Compare	Description	Compatibility	Type	Grooves per mm	Blaze Wavelength	Peak Efficiency	Primary Wavelength Region	Avail.	Price
$Diffraction Gratings for CS130 Monochromators$	74021Diffraction Grating, Cornerstone 130, Ruled, 2400 l/mm, 275 nm blaze, 200-800 nm	UNIVERSAL	Ruled	2400	275 nm	69%	200 to 800 nm	In Stock	$830
$Diffraction Gratings for CS130 Monochromators$	74022Diffraction Grating, Cornerstone 130, Holographic, 1800 lines/mm, 560 nm blaze, 320-1070 nm	UNIVERSAL	Holographic	1800	560 nm	54%	320 to 1070 nm	In Stock	$830
$Diffraction Gratings for CS130 Monochromators$	74023Diffraction Grating, Cornerstone 130, Holographic, 1200 l/mm, 240 nm blaze, 200-600 nm	UNIVERSAL	Holographic	1200	240 nm	63%	200 to 600 nm	In Stock	$830
$Diffraction Gratings for CS130 Monochromators$	74024Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 360 nm blaze, 200-1600 nm	UNIVERSAL	Ruled	1200	360 nm	80%	200 to 1600 nm	Contact Us	$1,045
$Diffraction Gratings for CS130 Monochromators$	74025Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 750 nm blaze, 475-1600 nm	UNIVERSAL	Ruled	1200	750 nm	78%	475 to 1600 nm	6 Weeks	$830
$Diffraction Gratings for CS130 Monochromators$	74026Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 225 nm blaze, 200-400 nm	UNIVERSAL	Ruled	600	225 nm	60%	200 to 400 nm	6 Weeks	$830
$Diffraction Gratings for CS130 Monochromators$	74027Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 700 nm blaze, 450-2000 nm	UNIVERSAL	Ruled	600	700 nm	78%	450 to 2000 nm	6 Weeks	$830
$Diffraction Gratings for CS130 Monochromators$	74028Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 1000 nm blaze, 650-2200 nm	UNIVERSAL	Ruled	600	1000 nm	83%	650 to 2200 nm	In Stock	$830
$Diffraction Gratings for CS130 Monochromators$	74029Diffraction Grating, Cornerstone 130, Ruled, 300 l/mm, 1700 nm blaze, 1300-5000 nm	UNIVERSAL	Ruled	300	1700 nm	90%	1300 to 5000 nm	Contact Us	$830
$Diffraction Gratings for CS130 Monochromators$	74031Diffraction Grating, Cornerstone 130, Ruled, 150 l/mm, 5 um blaze, 3.5-10.25 um	UNIVERSAL	Ruled	150	5000 nm	85%	3.5 to 10.25 µm	6 Weeks	$1,045

Show All

Features

High Quality

Plane ruled and holographic gratings listed here are fabricated from float glass substrates with an aluminum coating. Oriel monochromators and spectrographs feature diffraction gratings produced by Richardson Gratings. Both Oriel Instruments and Richardson Gratings are part of the Newport family of brands, and have a long history of working together to design instruments that are appropriate for a wide variety of applications.

Plane Ruled Gratings

For a plane blazed grating, the groove spacing and blaze angle determine the distribution of energy. The blaze direction for most gratings is specified for first order Littrow use. In Littrow use, light is diffracted from the grating back toward the source. Gratings used in the Littrow configuration have the advantage of maximum efficiency, or blaze, at specific wavelengths.

Blazed Holographic Gratings

Holographic gratings normally have a sinusoidal groove shape, which is the result of recording interference fringe fields in photoresist material. Since the grooves are symmetrical, they do not have a preferred blaze direction and hence the gratings carry no blaze arrows. The range of useful diffraction efficiency is controlled by varying the modulation (the ratio of groove depth to groove spacing). The lower the modulation, the shorter the wavelength limit to which the grating can be used, but the peak efficiency may be lowered as well. We have found that three modulation levels are adequate for nearly all purposes.

Broad Wavelength Coverage

Standard grating assemblies are available from UV, VIS and NIR. The primary wavelength region is where the grating efficiency is greater than or equal to 20%. System efficiency will also be affected by the reflectivity of the mirrors and the grating angle, at any wavelength. The CS130 monochromator's gratings are available with operating ranges from 200 nm to 23 µm.

High Efficiency

High-efficiency gratings are desirable for several reasons. A grating with high efficiency is more useful than one with lower efficiency in measuring weak transition lines in optical spectra. A grating with high efficiency may allow the reflectivity and transmissivity specifications for the other components in the spectrometer to be relaxed. Moreover, higher diffracted energy may imply lower instrumental stray light due to other diffracted orders, as the total energy flow for a given wavelength leaving the grating is conserved (being equal to the energy flow incident on it minus any scattering and absorption).

Special Orders Welcome

In addition to the gratings listed here, special order gratings may also be available for use in a wide variety of applications. Custom grating requests include gold coating for increased IR efficiency, AlMgF₂ coating for increased UV efficiency and many other requests. Gratings may be installed into a variety of mounts for use in specific monochromators or spectrographs. Contact Newport Sales for more information.
