Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 225 nm blaze, 200-400 nm

Model: 74026

$820

Compare

Add to List

Product Series Overview

Diffraction Gratings for CS130 Monochromators

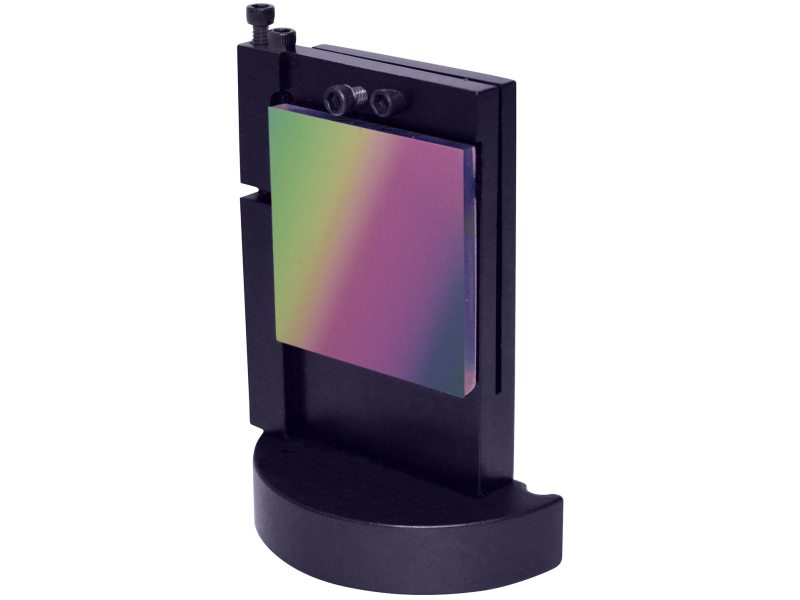

The 74026 Grating Assembly is designed for installation into the Oriel^® Cornerstone 130 family of monochromators. This 30 x 30 mm grating comes bonded to a mount, allowing it to be installed inside the instrument. The grating efficiency exceeds 20% over its entire operating range, with a peak efficiency of 60% at its blaze wavelength.

This Grating Assembly may be installed in the field, after which the grating must be aligned and calibrated. However, it is suggested to return the instrument to Newport for grating installation and calibration. During recalibration, the instrument is thoroughly assessed to ensure optimal performance and routine maintenance services are performed. The monochromator is returned with a Certificate of Calibration, guaranteeing the instrument meets or exceeds it specifications.

Specifications

Technical Specs

Type

Ruled
Grooves per mm

600
Blaze Wavelength

225 nm
Primary Wavelength Region

200 to 400 nm

Peak Efficiency

60%
Reciprocal Dispersion

13.2 nm/mm
Coating Type

AlMgF₂ broadband reflective

Type

Ruled
Grooves per mm

600
Blaze Wavelength

225 nm
Primary Wavelength Region

200 to 400 nm

Peak Efficiency

60%
Reciprocal Dispersion

13.2 nm/mm
Coating Type

AlMgF₂ broadband reflective

Resources & Downloads

Manuals

Legacy Cornerstone 130 User Manual RevA (2.5 MB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
74021 Diffraction Grating, Cornerstone 130, Ruled, 2400 l/mm, 275 nm blaze, 200-800 nm	UNIVERSAL	In Stock	$820
74027 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 700 nm blaze, 450-2000 nm	UNIVERSAL	Contact Us	$820
74022 Diffraction Grating, Cornerstone 130, Holographic, 1800 lines/mm, 560 nm blaze, 320-1070 nm	UNIVERSAL	In Stock	$820
74025 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 750 nm blaze, 475-1600 nm	UNIVERSAL	Contact Us	$820
74023 Diffraction Grating, Cornerstone 130, Holographic, 1200 l/mm, 240 nm blaze, 200-600 nm	UNIVERSAL	In Stock	$820
74029 Diffraction Grating, Cornerstone 130, Ruled, 300 l/mm, 1700 nm blaze, 1300-5000 nm	UNIVERSAL	In Stock	$820
74031 Diffraction Grating, Cornerstone 130, Ruled, 150 l/mm, 5 um blaze, 3.5-10.25 um	UNIVERSAL	Contact Us	$1,030
74028 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 1000 nm blaze, 650-2200 nm	UNIVERSAL	In Stock	$820
74043 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 370 nm blaze, 270-1000 nm	UNIVERSAL	In Stock	$820
74034 Diffraction Grating, Cornerstone 130, Ruled, 150 l/mm, 800 nm blaze, 425-1600 nm	UNIVERSAL	In Stock	$820
74024 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 360 nm blaze, 200-1600 nm	UNIVERSAL	Contact Us	$1,030
74035 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 1600 nm blaze, 900 -3000 nm	UNIVERSAL	Contact Us	$820
74033 Diffraction Grating, Cornerstone 130, Ruled, 50 l/mm, 12 um blaze, 7-23 um	UNIVERSAL	Contact Us	$820
74032 Diffraction Grating, Cornerstone 130, Ruled, 75 l/mm, 7 um blaze, 4.5-20 um	UNIVERSAL	In Stock	$820
