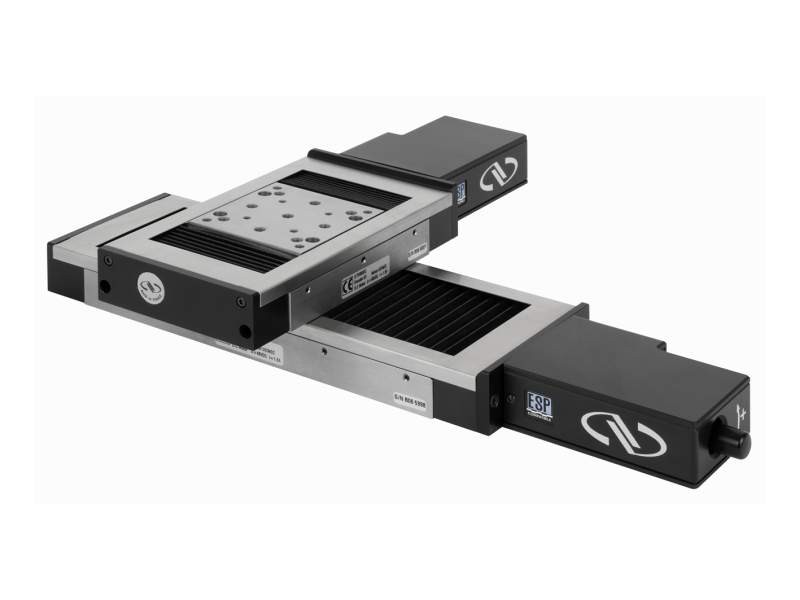

Motorized Linear Stage, Steel, 150 mm Travel, DC Motor, M4 and M6

The UTS150CC is DC motor driven and has a 150 mm travel range. This UTS stage incorporates a low-profile design with excellent stiffness and thermal stability, making it ideal for environments where temperature is not very well controlled. It also features an ultra-high resolution encoder mounted on the diamond-corrected lead screw, a reduction belt providing precise incremental motion capability and high dynamic speed control, and a precision lapped nut which includes anti-backlash preloading and a sophisticated decoupling system.

Specifications

Technical Specs

Travel Range
150 mm
Maximum Speed
40 mm/s
Minimum Incremental Motion
300 nm

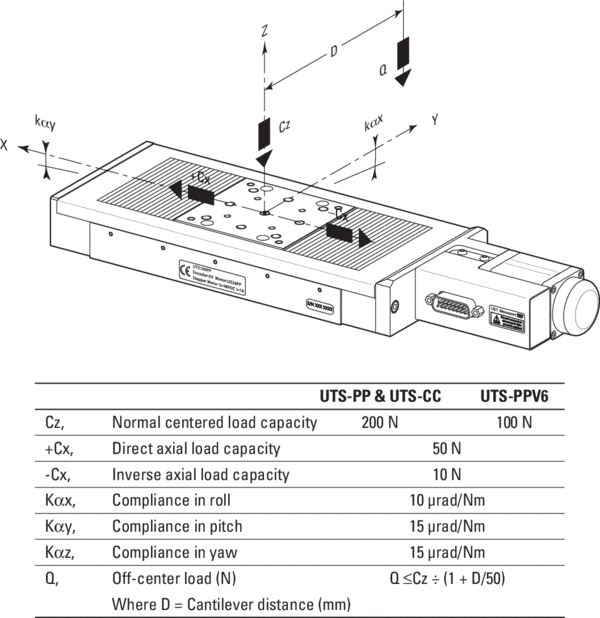

Centered Load Capacity
200 N
Axial Load Capacity (+Cx)
50 N
Inverse Axial Load Capacity (-Cx)
-10 N
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±3.25 µm
Uni-directional Repeatability, Typical
±0.30 µm
Uni-directional Repeatability, Guaranteed
±0.5 µm
Bi-directional Repeatability, Typical
±0.8 µm
Bi-directional Repeatability, Guaranteed
±1.75 µm
Pitch, Typical
±25 µrad
Pitch, Guaranteed
±60 µrad
Compliance in Pitch
15 µrad/Nm

Yaw, Typical
±30 µrad
Yaw, Guaranteed
±45 µrad
Compliance in Yaw
15 µrad/Nm
Compliance in Roll
10 µrad/Nm
Drive Type
DC Motor
Origin Repeatability
±0.5 µm
Cable Length
3 m
Vacuum Compatibility
No
Thread Type
M4 and M6
Weight
3.7 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Maximum Power Consumption
40 W
Compliance
RoHS 3, CE

Travel Range
150 mm
Maximum Speed
40 mm/s
Minimum Incremental Motion
300 nm
Centered Load Capacity
200 N
Axial Load Capacity (+Cx)
50 N
Inverse Axial Load Capacity (-Cx)
-10 N
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±3.25 µm
Uni-directional Repeatability, Typical
±0.30 µm
Uni-directional Repeatability, Guaranteed
±0.5 µm
Bi-directional Repeatability, Typical
±0.8 µm
Bi-directional Repeatability, Guaranteed
±1.75 µm
Pitch, Typical
±25 µrad
Pitch, Guaranteed
±60 µrad
Compliance in Pitch
15 µrad/Nm

Yaw, Typical
±30 µrad
Yaw, Guaranteed
±45 µrad
Compliance in Yaw
15 µrad/Nm
Compliance in Roll
10 µrad/Nm
Drive Type
DC Motor
Origin Repeatability
±0.5 µm
Cable Length
3 m
Vacuum Compatibility
No
Thread Type
M4 and M6
Weight
3.7 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Maximum Power Consumption
40 W
Compliance
RoHS 3, CE

Resources & Downloads

2D Product Drawings

UTS&V6-S(437.7 kB, PDF)

Literature

UTS Data Sheet(2 MB, PDF)

Manuals

UTS Linear Stages User's Manual(1.7 MB, PDF)

Related Products

Compatible Controllers

Description	Compatibility	Avail.	Price
xps-d-universal-motion-controller¹XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver	UNIVERSAL
xps-rl-universal-high-performance-motion-controller²XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver	UNIVERSAL
esp301-3-axis-dc-and-stepper-motion-controllerESP302 3-Axis DC and Stepper Motion Controller	UNIVERSAL
SMC100CCMotion Controller, Single-axis DC Motor	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,452

Notes:

Requires XPS-DRV11 driver module
Requires XPS-DRV11 driver module

Similar Stages

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		ILS150CCMotorized Linear Stage, 150 mm Travel, DC Motor, Rotary Encoder, 1/4-20	IMPERIAL			$5,830

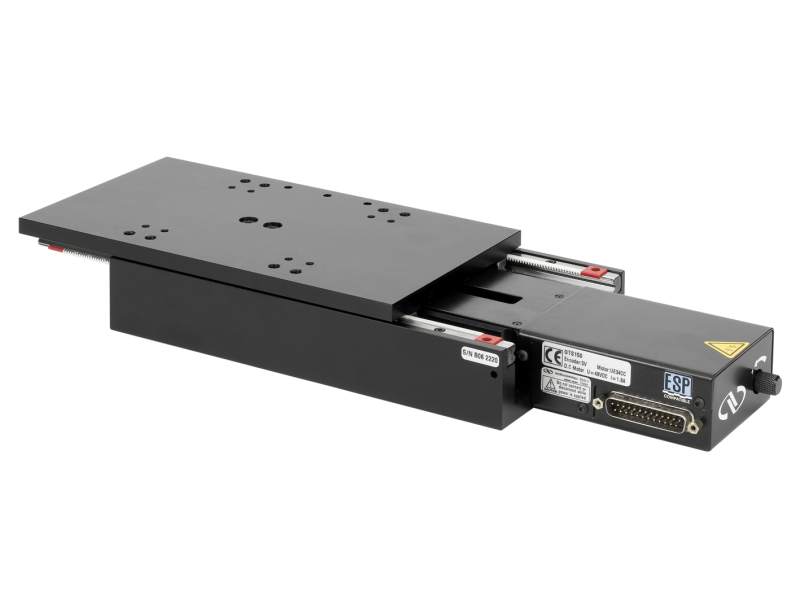

		GTS150Motorized Linear Stage, 150 mm Travel, High Torque DC Motor, M4 and M6	UNIVERSAL			$10,664

Accessories

Description	Compatibility	Avail.	Price
M-CAP-M41Captive Screws, Set of 4 , XY Assemblies	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$48
UTS-TPTop Plate, UTS Stages with English Holes	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$242
MSCABLE-10Cable, DB-25 Male to DB-15 Female, 10 m Length	UNIVERSAL		$696

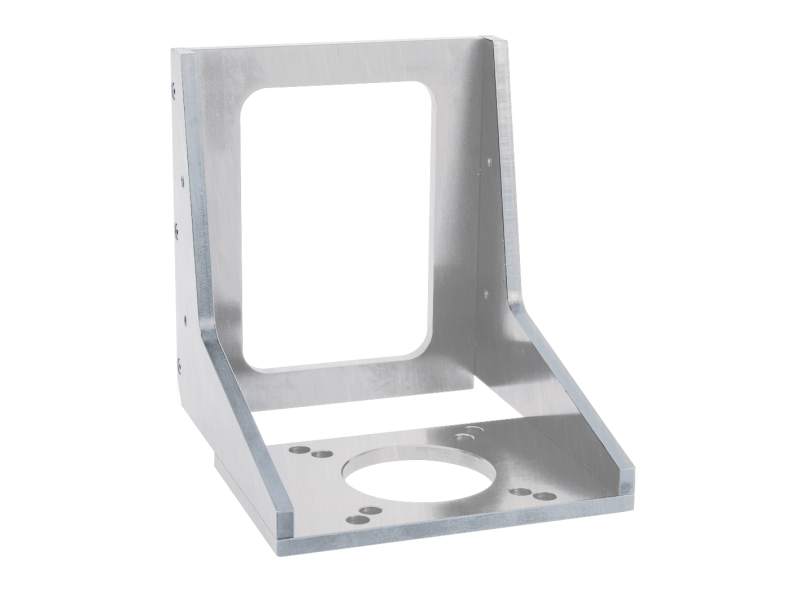

EQ100-LRight-Angle Bracket, UTS100 and UTS150	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,545
