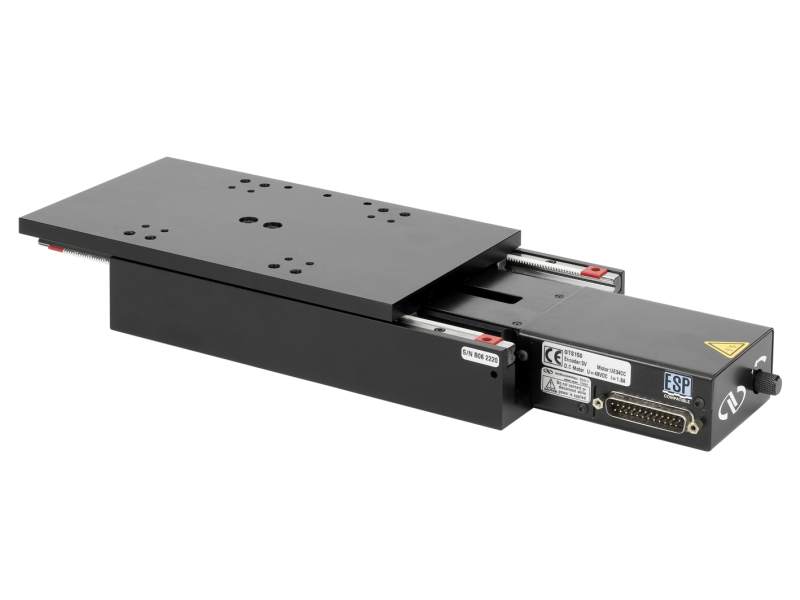

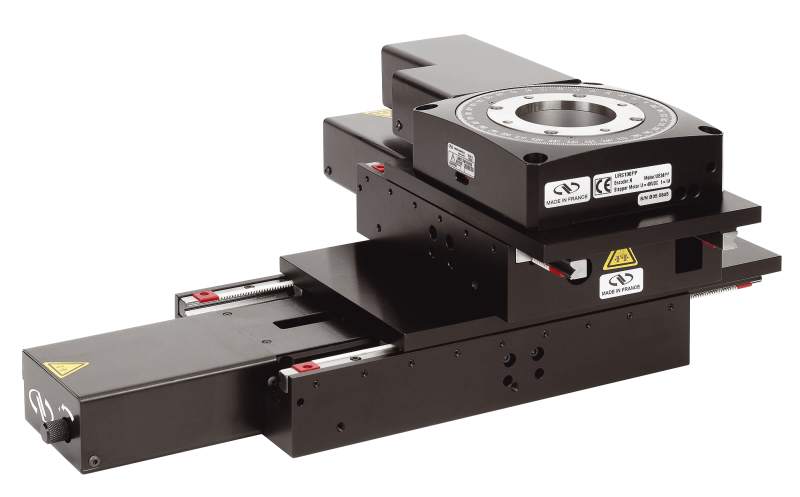

Motorized Linear Stage, 150 mm Travel, High Torque DC Motor, M4 and M6

Technical Specs

  • Travel Range
    150 mm
  • Maximum Speed
    50 mm/s
  • Minimum Incremental Motion
    100 nm

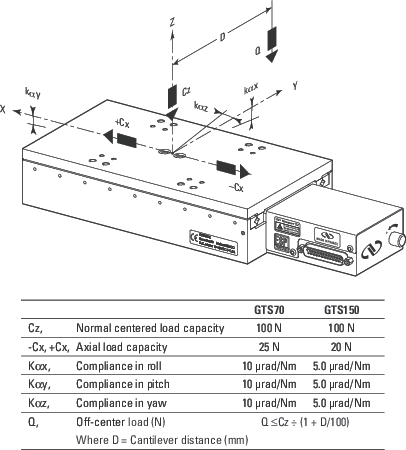

  • Centered Load Capacity
    100 N
  • Axial Load Capacity (+Cx)
    20 N
  • Inverse Axial Load Capacity (-Cx)
    -20 N
  • Accuracy, Typical
    ±0.50 µm
  • Accuracy, Guaranteed
    ±1.0 µm
  • Bi-directional Repeatability, Typical
    ±0.08 µm
  • Bi-directional Repeatability, Guaranteed
    ±0.10 µm
  • Flatness Typical (Guaranteed)
    ±0.50 (±1.0) µm
  • Straightness Typical (Guaranteed)
    ±0.50 (±1.0) µm
  • Pitch, Typical
    ±30 µrad
  • Pitch, Guaranteed
    ±40 µrad
  • Compliance in Pitch
    5 µrad/Nm
  • Yaw, Typical
    ±25 µrad
  • Yaw, Guaranteed
    ±40 µrad
  • Compliance in Yaw
    5 µrad/Nm
  • Compliance in Roll
    5 µrad/Nm
  • Drive Type
    High Torque DC Motor
  • Origin Repeatability
    ±0.05 µm
  • Cable Length
    3 m
  • Thread Type
    M4 and M6
  • Weight
    3.6 kg
  • MTBF
    20,000 h (25% load, 30% duty cycle)
  • RoHS
    Compliant
  • Maximum Power Consumption
    25 W
  • Compatible XPS-RL Driver Module
  • Compatible XPS-D Driver Module
  • ESP301 Compatibility
    Yes
  • SMC100 Compatibility
