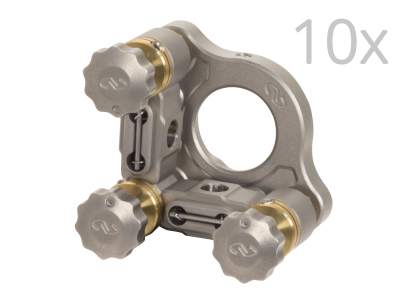

Mirror Mount 10 Pack, Suprema^® SU100-F3K, 1.0 in., 3 Knob Adjustment

This is a 10-pack of the Stainless Steel Kinematic Optical Mount. The SU100-F3K Suprema^® Stainless Steel Kinematic Optical Mount is fabricated from pressed and sintered powdered metal stainless steel. Through our patent pending process we create cost-effective pressed and sintered powdered stainless steel mounts with performance comparable to that of wrought stainless steel. Newport's Suprema design has been optimized utilizing our broad experience in opto-mechanics, vibration damping and isolation, optics, and material science. Through comprehensive design, finite element analysis, and rigorous testing, we have achieved performance previously attained only through high cost, custom stainless steel mounts. 1 inch (25.4 mm) diameter optics are front loaded and held securely in place against precision mounting pads using the setscrew, or be epoxied in place. Extensive laboratory testing has shown that epoxying the optic in place provides optimal performance and stability. Suprema mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. This three-actuator configuration with 100 TPI locking Adjustment Screws with knob has tip and tilt adjustability over a range of +/- 7 degrees. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.

Unmatched Performance

The Classic Suprema is the industry's best performing modular optical mount, setting the standard for stability and adjustability in today's demanding research and industrial applications. Suprema mounts provide the feel necessary to tune the most sensitive set-ups and the stability to hold that position better than any other mount on the market.

In-Process Heat Treatment

Every Suprema mount is heat treated as part of the fabrication process. Heat treating relieves the build up of fabrication stresses which improve the overall stability of the mount.

Precision Polished Carbide Pads

All 1" (25.4 mm) and 2" (50.8 mm) Suprema mirror mounts are made with super hard 10 µ-in. precision-polished tungsten carbide kinematic pads ensuring a highly stable kinematic mechanism.

The Stainless Steel Advantage

All Suprema mirror mounts are made from stainless steel making them the most stable and easiest to align. Stainless steel is 3X stiffer than aluminum so it flexes significantly less allowing easier alignment. Stainless steel's coefficient of thermal expansion is lower than aluminum making it more stable during temperature fluctuations. Stainless steel makes Suprema the flag ship of Newport’s mirror mount offering.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Knob
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy
Sensitivity
3.8 arc sec
Angular Range
±7°

Optic Loading
Front
Material
Stainless Steel
Drive Type
Knob, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Special Features
10-Pack

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Knob
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy
Sensitivity
3.8 arc sec
Angular Range
±7°

Optic Loading
Front
Material
Stainless Steel
Drive Type
Knob, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Special Features
10-Pack

Resources & Downloads

2D Product Drawings

SU100 and SX100(287.9 kB, PDF)

Other

SU100-F3K-PK RoHS Certificate(258.1 kB, PDF)
