Mirror Mount 10 Pack, Suprema^®, Clear Edge, 1.0 in, (2) 127-TPI Locking Knobs

Suprema® Clear Edge Low-Drift Mirror Mounts

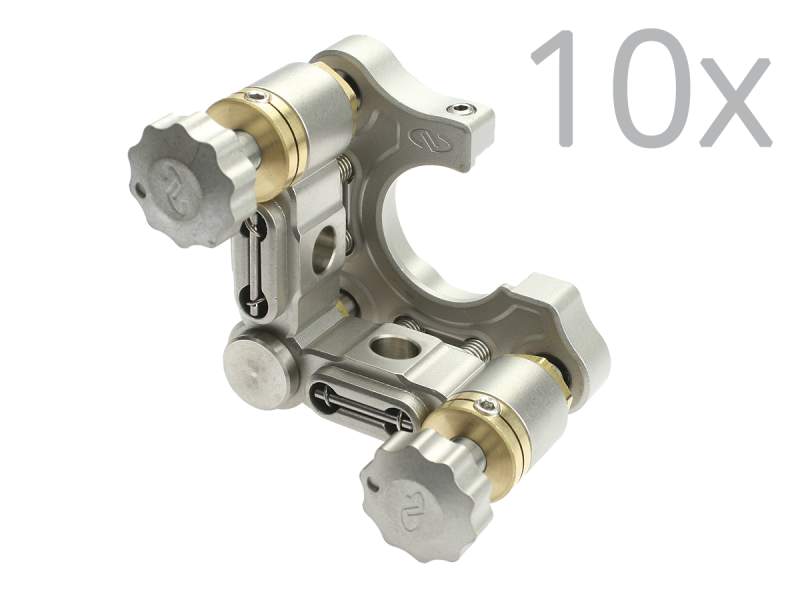

This is a 10-pack of the Stainless Steel Clear Quadrant Kinematic Optical Mount. The SN100C-F2K Suprema^® Stainless Steel Clear Quadrant Kinematic Optical Mount is fabricated from pressed and sintered powdered metal stainless steel. Through our patent pending process we create cost-effective pressed and sintered powdered stainless steel mounts with performance comparable to that of wrought stainless steel. Newport's SN100 design has been optimized utilizing our broad experience in opto-mechanics, vibration damping and isolation, optics, and material science. Through comprehensive design, finite element analysis, and rigorous testing, we have achieved performance previously attained only through high cost, custom stainless steel mounts. Our Patented clear quadrant design exposes the edge of the optic, allowing beams to pass close to the edge of a mounted optic. 1 inch (25.4 mm) diameter optics are front loaded and held securely in place against precision mounting pads using the nylon-tipped setscrew, or be epoxied in place. Extensive laboratory testing has shown that epoxying the optic in place provides optimal performance and stability. SN100 mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. This two-actuator configuration with 127 TPI locking Adjustment Screws with knob has tip and tilt adjustability over a range of +/- 7 degrees. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Knob
Actuator Locks
Yes
Adjustment Screw Thread
127 TPI
Adjustments
θx, θy
Sensitivity
3.0 arc sec
Angular Range
±7°
Actuator Orientation
Right-handed

Optic Loading
Front
Material
Stainless Steel
Drive Type
Knob, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Special Features
10-Pack

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Knob
Actuator Locks
Yes
Adjustment Screw Thread
127 TPI
Adjustments
θx, θy
Sensitivity
3.0 arc sec
Angular Range
±7°
Actuator Orientation
Right-handed

Optic Loading
Front
Material
Stainless Steel
Drive Type
Knob, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Special Features
10-Pack
