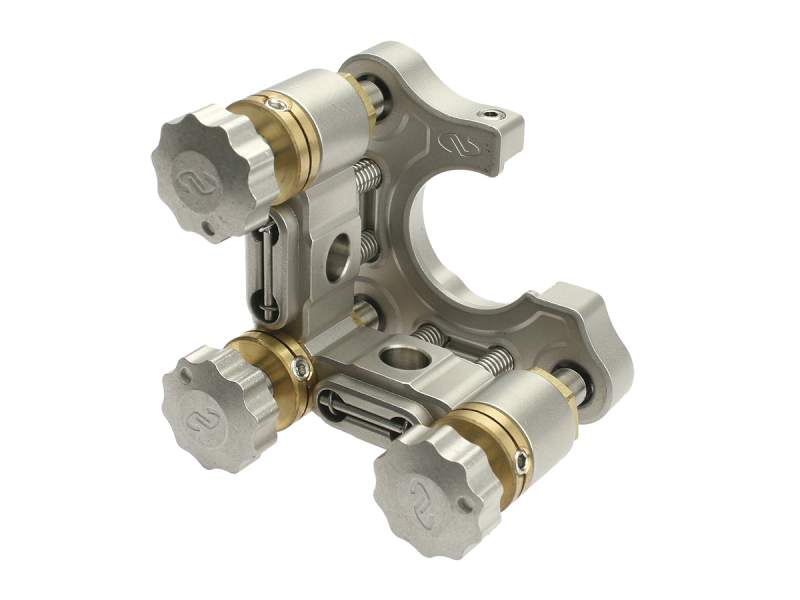

Mirror Mount, Suprema®, Clear Edge, 1.0 in, (3) 127-TPI Locking Knobs

  • Mechanism
    Kinematic
  • Optic Diameter
    25.4 mm
  • Number of Actuators
    3
  • Actuator Drive
    Knob
  • Actuator Locks
    Yes
  • Adjustment Screw Thread
    127 TPI
  • Adjustments
    z, θx, θy
  • Sensitivity
    3.0 arc sec
  • Angular Range
    ±7°
  • Actuator Orientation
    Right-handed
  • Optic Loading
    Front
  • Material
    Stainless Steel
  • Drive Type
    Knob, locking
  • Thread Type
    8-32 (M4) CLR
  • Optical Axis Height
    25.4 mm
