Light Source, Xenon, 300 W Ozone Free, F/1 Plano-Convex

Medium Power Research Series Xenon Light Sources

The 66984-300XF-R1 Xenon Light Source is a complete plug and play light source system that includes a 300 W short-arc Xe lamp with a UV blocking coating to prevent ozone generation, light source housing, lamp power supply, as well as all the necessary interconnection cables for operation. See included components below for complete details.

The provided 69911 arc lamp power supply is a highly regulated for maximum stability. Much of an arc lamp's stability in wavelength and output intensity is due to keeping the temperature and pressure of the gas inside the lamp's envelope as constant possible.

The included Oriel Research Arc Lamp Housing offers a built-in ignitor board and rear reflector for optimum lamp performance. A built-in cooling fan maintains a safe operating temperature for the lamp. The user is protected from accidental exposure to UV radiation and electrical shock by the lamp housing's safety interlock, which disables ignition and power to the lamp if the housing door or lamp housing interconnection cable is not securely connected.

The condenser lens assembly included with this light source has an economical 2-element plano-convex lens with an F/# of F/1.

Specifications

Technical Specs

Type
Xenon Light Source
Lamp Type
Xe, Ozone Free
Lamp Wattage
300 W
Output Beam Size
33 mm
Condenser Type
Two Element Plano-Convex
F/#
F/1
Output Beam
Collimated
Lens Material
Fused Silica

Lens Transmittance Range
200 - 2500 nm
Lens Multiplication Factor
0.11
Flange Series Size
1.5 Inch
Lamp Current
15 A
Lamp Voltage
20 V

Type
Xenon Light Source
Lamp Type
Xe, Ozone Free
Lamp Wattage
300 W
Output Beam Size
33 mm
Condenser Type
Two Element Plano-Convex
F/#
F/1
Output Beam
Collimated
Lens Material
Fused Silica

Lens Transmittance Range
200 - 2500 nm
Lens Multiplication Factor
0.11
Flange Series Size
1.5 Inch
Lamp Current
15 A
Lamp Voltage
20 V

Related Products

Included Components

The 66984-300XF-R1 Xenon light source includes the following components.

Description	Compatibility	Avail.	Price
6258Xenon Arc Lamp, 300 W, Ozone Free	UNIVERSAL	Contact Us	$785
66160Lamp Socket Adapter, 300 W Xe Lamp, For Research Housing	UNIVERSAL		$125
66902Arc Lamp Housing, Research, 50-500 W, F/1 2 Element Plano-Convex, 1.5 Inch Flange	UNIVERSAL		$3,745
70050Power Supply Cable, 6 ft., Xe, Hg(Xe), QTH, Deuterium Lamps, IR Emitters	UNIVERSAL		$170
69911Arc Lamp Power Supply, Xenon and Mercury/Xenon Lamps, 160 to 500 Watt	UNIVERSAL		$6,140

Similar Light Sources

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		66483-300XF-R22Light Source, Xenon, 300 W Ozone Free, F/2.2 Asphere	UNIVERSAL			$11,060
		66485-300XF-R1Light Source, Xenon, 300 W Ozone Free, F/1 Asphere	UNIVERSAL			$11,120

UV Safety Equipment

Description	Compatibility	Avail.	Price
49123UV Protective Gloves, Size 8, Black Neoprene, Set of 3	UNIVERSAL		$75
49121Ultraviolet Protective Gloves, Size 10, Black Neoprene, Set of 3	UNIVERSAL		$75
49126Safety Goggles, UV Light Sources, Flexible Frame	UNIVERSAL		$80
66087Ozone Eater™, 110/220 VAC, 50/60 Hz	UNIVERSAL	Contact Us	$2,090

Frequently Purchased Together

Description	Compatibility	Price

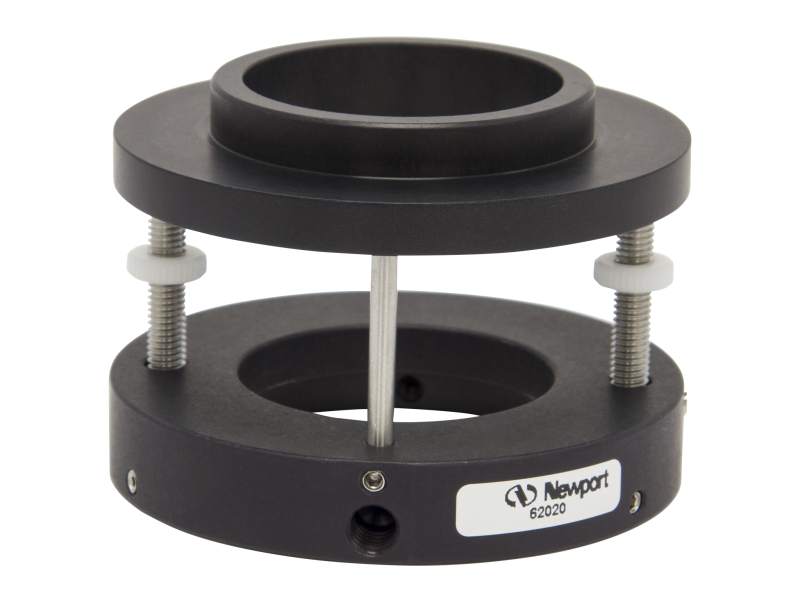

62020Multiple Filter Holder, 2.0 in. Filters, 1.5 Inch Series Flange	UNIVERSAL	$415

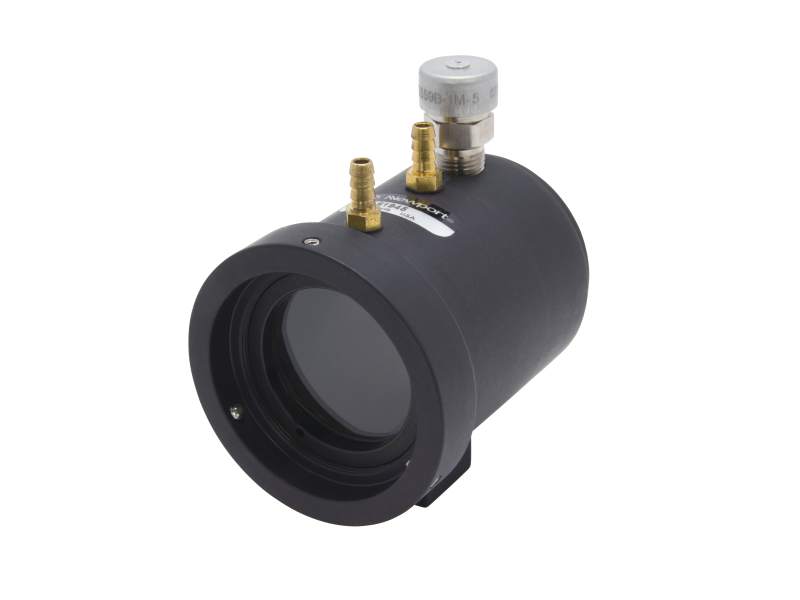

61945Liquid Optical Filter, Aluminum, 1.5 Inch Series Light Sources	UNIVERSAL	$1,045

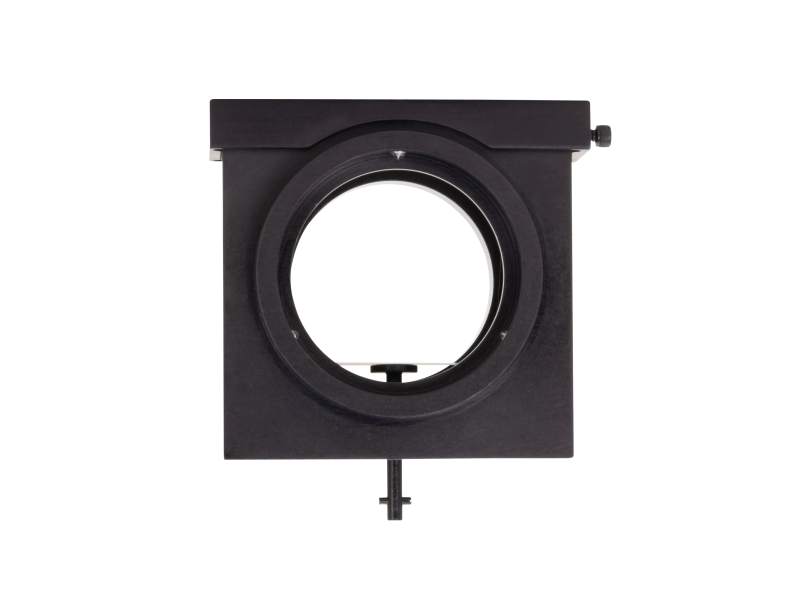

71260Optical Filter Holder, Quick Change, 1.75 - 2 in., 1.6 in. Clear Aperture	UNIVERSAL	$365

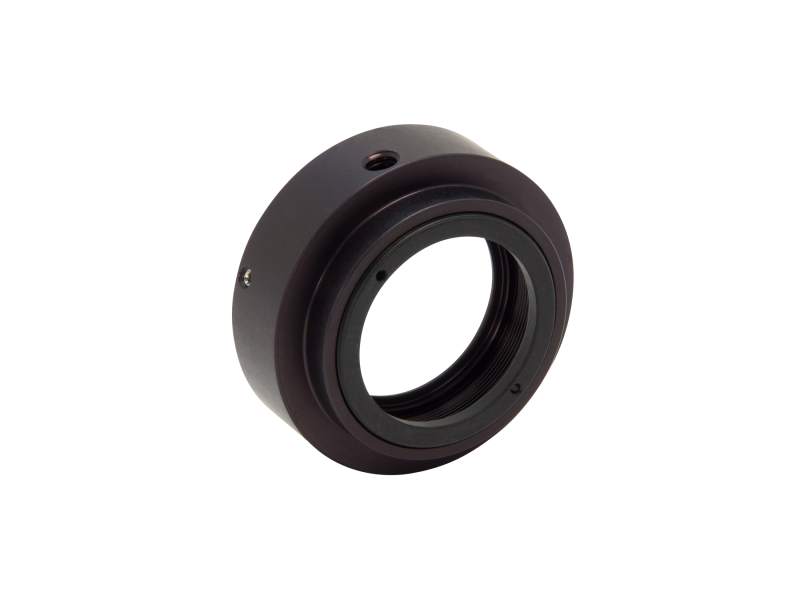

6195Flanged Lens Holder, 1.5 in. Diameter, 1.5 Inch Series Flange	UNIVERSAL	$105

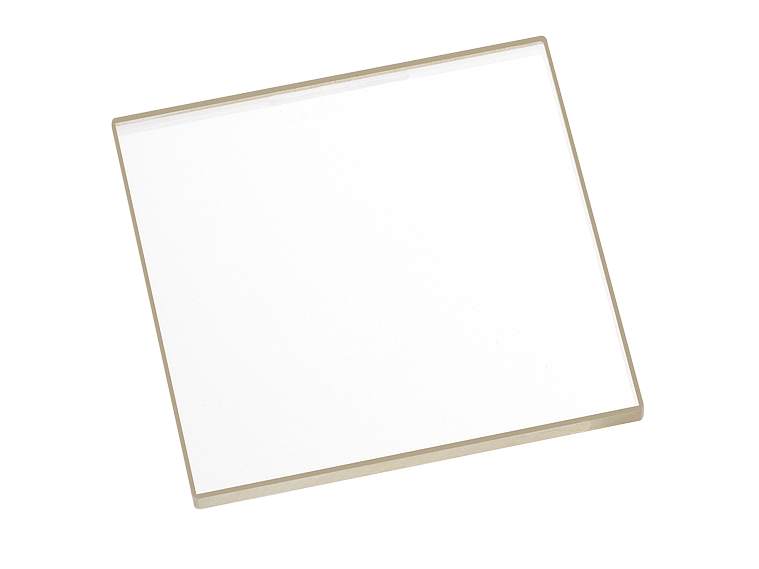

81088A-LCSAir Mass Filter, AM 1.5 Global, LCS-100 Simulators Only	UNIVERSAL
