High Energy Laser Line Optical Windows

Products
Features
Accessories
Resources
Contact Us

Overview

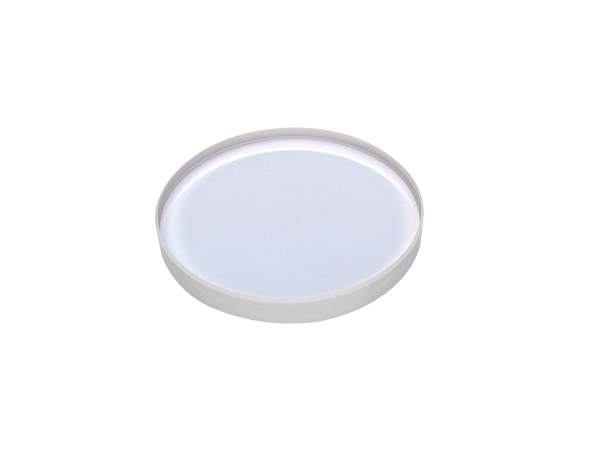

High energy parallel windows are made with low-scatter excimer grade UV Fused Silica and optimized for high power Nd:YAG laser systems. Each surface is coated with a high efficiency, high damage-threshold antireflection coating.

High efficiency, high damage threshold, Laser Line V-Coatings
Excimer Grade UV Fused Silica for excellent thermal stability
<5 arc-second parallelism
Fine low-scatter surface with 10-5 scratch-dig surface quality
Damage resistant up to 10 J/cm²

See All Features

Products

Compare	Model	Compatibility	rankScore	Diameter	Antireflection Coating	Availability	Price	Brand
05QW20-1 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 1064 nm $179 In Stock	05QW20-1 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 1064 nm	UNIVERSAL	1.0	12.5 mm	1064 nm	In Stock	$179	Newport
05QW20-2 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 532 nm $179 In Stock	05QW20-2 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 532 nm	UNIVERSAL	1.0	12.5 mm	532 nm	In Stock	$179	Newport
05QW20-3 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 355 nm $189 In Stock	05QW20-3 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 355 nm	UNIVERSAL	1.0	12.5 mm	355 nm	In Stock	$189	Newport
05QW20-4 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 266 nm $195 In Stock	05QW20-4 Optical Window, High Power, Laser Line, 12.5 mm Diameter, 266 nm	UNIVERSAL	1.0	12.5 mm	266 nm	In Stock	$195	Newport
10QW20-1 Optical Window, High Power Laser Line, 25.0 mm Diameter, 1064 nm $227 In Stock	10QW20-1 Optical Window, High Power Laser Line, 25.0 mm Diameter, 1064 nm	UNIVERSAL	1.0	25.0 mm	1064 nm	In Stock	$227	Newport
10QW20-2 Optical Window, High Power Laser Line, 25.0 mm Diameter, 532 nm $227 1 Week	10QW20-2 Optical Window, High Power Laser Line, 25.0 mm Diameter, 532 nm	UNIVERSAL	1.0	25.0 mm	532 nm	1 Week	$227	Newport
10QW20-3 Optical Window, High Power Laser Line, 25.0 mm Diameter, 355 nm $227 6 Weeks	10QW20-3 Optical Window, High Power Laser Line, 25.0 mm Diameter, 355 nm	UNIVERSAL	1.0	25.0 mm	355 nm	6 Weeks	$227	Newport
10QW20-4 Optical Window, High Power Laser Line, 25.0 mm Diameter, 266 nm $230 In Stock	10QW20-4 Optical Window, High Power Laser Line, 25.0 mm Diameter, 266 nm	UNIVERSAL	1.0	25.0 mm	266 nm	In Stock	$230	Newport
20QW20-1 Optical Window, High Power Laser Line, 50 mm Diameter, 1064 nm $357 In Stock	20QW20-1 Optical Window, High Power Laser Line, 50 mm Diameter, 1064 nm	UNIVERSAL	1.0	50.0 mm	1064 nm	In Stock	$357	Newport
20QW20-2 Optical Window, High Power Laser Line, 50 mm Diameter, 532 nm $357 In Stock	20QW20-2 Optical Window, High Power Laser Line, 50 mm Diameter, 532 nm	UNIVERSAL	1.0	50.0 mm	532 nm	In Stock	$357	Newport
20QW20-3 Optical Window, High Power Laser Line, 50 mm Diameter, 355 nm $375 2 Weeks	20QW20-3 Optical Window, High Power Laser Line, 50 mm Diameter, 355 nm	UNIVERSAL	1.0	50.0 mm	355 nm	2 Weeks	$375	Newport
20QW20-4 Optical Window, High Power Laser Line, 50 mm Diameter, 266 nm $384 In Stock	20QW20-4 Optical Window, High Power Laser Line, 50 mm Diameter, 266 nm	UNIVERSAL	1.0	50.0 mm	266 nm	In Stock	$384	Newport

Show All

Specifications

Material

Excimer Grade UV Fused Silica
Surface Flatness

λ/10 @ 632.8 nm
Surface Quality

10-5 scratch-dig
Thickness

3.0 mm
Thickness Tolerance

±0.10 mm
Wavefront Distortion

λ/20 @ 632.8 nm, transmitted

Parallelism

5 arc seconds
Cleaning

See How to Clean Optics
Clear Aperture

Central 90% of diameter
Diameter Tolerance

+0/-0.10 mm
Angle of Incidence

0°

Features

Optimized for Nd:YAG Laser Applications

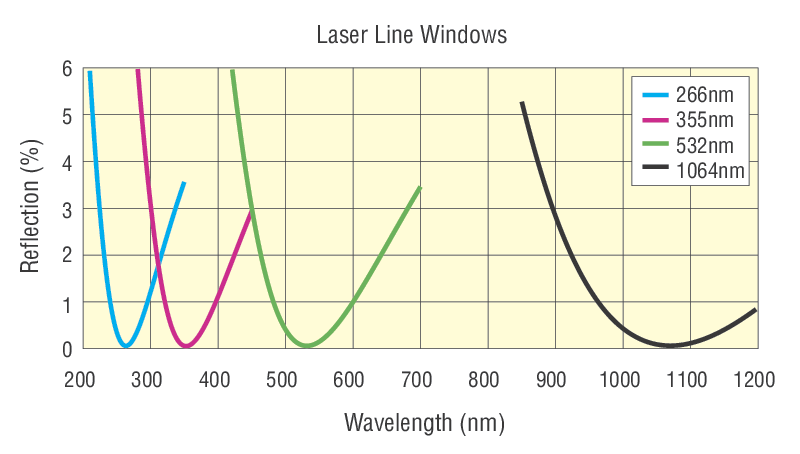

Each surface of our High Energy Parallel Windows is coated with a high efficiency, high damage threshold V-coating. Coatings are available to maximize transmission at 1064nm, 532nm, 355nm and 266nm, corresponding to the 1st, 2nd, 3rd, and 4th harmonics for Nd:YAG lasers.

High Precision Manufacturing

These high energy parallel windows are manufactured to the highest precision with flatness up to λ/10 for low distortion and < 5 arc second parallelism for exceptionally low beam deviation.

Low Scatter

Our high energy parallel windows are made with the finest quality excimer grade UV fused silica material for extremely low bulk scatter and autofluoresence. These optics boast a high quality surface of 10-5 scratch-dig for very low surface scatter.

Accessories

Description	Compatibility	Avail.	Price
LH-0.5A Fixed Lens Mount, 0.50 in. (12.7 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$20
LH-1T Thin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 Thread., A-LINE	IMPERIAL	2 Weeks	$21
LH-2A Fixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE	IMPERIAL	1 Week	$36

Resources

Selection Guides

Optical Window Guide

Technical Notes

Optical Materials

High Energy Laser Line Optical Windows
